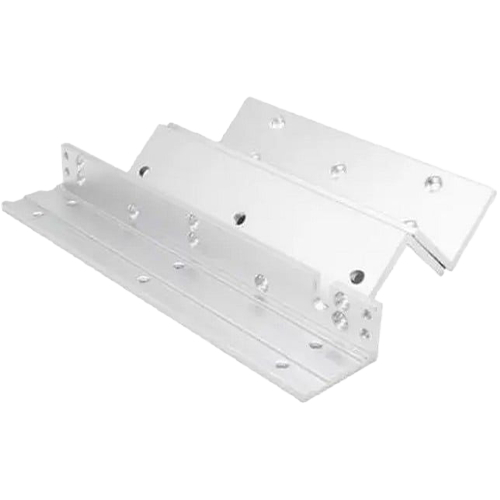

L & Z Bracket B10022 for H-02CC Electromagnet Mounting

B10022 is an L & Z type mounting kit dedicated to the installation of the H-02CC retention electromagnet. Made of durable aluminum alloy, this bracket allows firm and correct fixing of the electromagnet and armature plate on doors where direct mounting is not possible.

Complete L and Z Configuration

The kit includes an L-bracket for mounting the electromagnet and two Z-pieces for mounting the strike plate. This combination ensures precise positioning and compatibility with a variety of door and frame types.

Durable and Lightweight Material

Made of aluminum alloy, the B10022 bracket offers a solid structure with a low weight, making it ideal for installations that require robustness without loading the door or frame structure.

Main Technical Specifications

  • Compatibility: H-02CC Electromagnet
  • Material: Aluminum alloy
  • L-Bracket dimensions: 266 x 73 x 46 mm
  • Z-Bracket dimensions: 185 x 126 mm (2 pieces)
  • L-Bracket weight: 0.42 Kg
  • Z-Bracket weight: 0.69 Kg
  • Mounting: surface, adaptable for various doors

Advantages

  • Allows installation of the H-02CC electromagnet on doors without a compatible metal frame
  • Precise fixing of the electromagnet and strike plate
  • Aluminum construction for durability and light weight
  • Adaptable to multiple types of door configurations
  • Quick and safe assembly
