The Ultraprofessional Dahua 8MP 4K surveillance kit includes 16 high-resolution cameras , each offering 4K quality for detailed and clear images. The cameras are equipped with a built-in microphone for sound capture and have IR lighting with a radius of up to 80 meters , ensuring efficient surveillance even at night. The kit includes a WizSense DVR with 16 channels , 4K-N/5MP and audio.

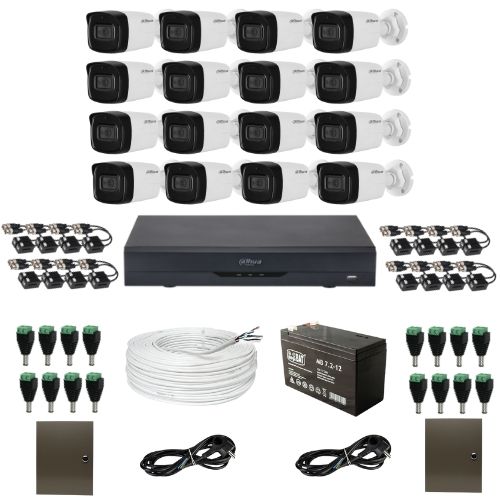

DAHUA professional surveillance kit consisting of:
- 16 x Dahua HDCVI Bullet 4K Cameras, HAC-HFW1800TL-A-0360B , 3.6mm lens, IR 80m, Microphone, IP67
- 1 x DVR 16 channels Dahua , 4K-N / 5MP, XVR5116H-4KL-I3 , WizSense, Audio via HDCVI
- 16 x Sets of 2 passive video balloons PFM800-4K, 1 channel, Max. 4K, HDCVI/TVI/AHD/CVBS
- 1 x Dahua UTP CAT5E cable, Roll 305m
- 2 x Power supplies 12 V 10A
- 2 x Accumulators MB 7.2-12 VRLA
- 2 x mains power cables with SHUCKO plug and 3 wires
- 16 x TATA power plugs with screw
4K Dahua analog outdoor camera, microphone, infrared 80m
The surveillance camera offers an impressive resolution of up to 4K, ensuring real-time video transmission and extremely clear images. It is versatile, with CVI, CVBS, AHD and TVI compatibility, and includes a built-in microphone for sound capture. With an intelligent IR illumination of up to 80 meters and IP67 protection, it is ideal for outdoor use, offering reliability in difficult weather conditions, working stably at a voltage of 12V±30%.
Technical specifications of the outdoor camera Dahua 8MP 4K IR 80m:
- Manufacturer: Dahua
- Sensor: 1/2.7 inch CMOS
- Resolution: 8MP 4K
- Lens: 3.6mm viewing angle 87
- Minimum illumination: 0.03 Lux/F2.0, 30IRE, 0 Lux IR on
- Infrared distance: 80m
- Special functions: BLC/HLC/WDR; Smart IR
- Plug: BNC
- Technologies: CVI/CVBS/AHD/TVI
- Audio: Microphone
- Power supply: 12V±30% DC
- Consumption: Max 6W (12V DC, IR on)
- Operating temperature: From 40C to +60C
- Degree of protection: IP67
- Case type: Bullet, metal+plastic
- Dimensions: 198.9mm×80.2mm×76.2mm
- Weight: 0.28Kg
DVR 16 channels Dahua WizSense 4K-N / 5MP Audio
XVR5116H-4KL-I3 is a stand-alone DVR with 16 channels from Dahua, compatible with AHD, HD-CVI, HD-TVI, IP and CVBS, offering maximum flexibility for the integration of various video formats. It supports 4K recording at 8 MP (7 FPS), ensuring superior image quality and an efficient solution for modern security systems.
Dahua 5MP 16-channel DVR technical specifications:
- Supported camera types: HDCVI cameras: 4K, 6 MP, 5 MP, 4 MP, 1080P at 25/30 fps, 720P at 50/60 fps, 720P at 25/30 fps; AHD cameras: 4K, 5 MP, 4 MP, 3 MP, 1080P at 25/30 fps, 720P at 25/30 fps; TVI cameras: 4K, 5 MP, 4 MP, 3 MP, 1080P at 25/30 fps, 720P at 25/30 fps; IP: up to 32 channels
- Compression: H.265+; H.265; H.264+; H.264
- Frames/Second: Main Stream: 4K (1-7 fps); 6 MP (1-10 fps); 5 MP (1-12 fps); 4K-N/4 MP/3 MP (1-15 fps); 4M-N/1080P/720P/960H/D1/CIF (1 fps25/30 fps); Sub stream: 960H (1 fps15 fps); D1/CIF@ (1 fps25/30 fps)
- Playback: 1-16 channels synchronized
- Inputs: 16 x BNC; 1 x RCA audio, LAN 10/100/1000Mbps, 2 x USB, RS485
- Outputs: HDMI, VGA- (simultaneous); 1 audio
- Storage: 1 x SATA HDD max 16TB (not included)
- Special Functions: Perimeter protection; Facial recognition; SMD Plus
- Power supply: 12V DC, 3A
- Consumption: max. 15W (without HDD)
- Dimensions: 325.0 mm × 257.1 mm × 55.0 mm
- Weight: 1.23 kg
- Ambient temperature: -10C ~ +55C
Battery accumulator 12V 7A
This battery is suitable for cyclic operation and UPS.
- UPS operation (emergency power supply) – The battery is still connected to the network, but only during the power outage, it maintains the operation of other devices;
- Cyclic operation – the battery is the device”s power source after discharge, it is recharged.
Technical specifications of the battery accumulator:
- Type: Accumulator
- Capacity (Ah): 7
- Input voltage (V): 12
- Supply voltage (V): 13.6 ÷ 13.8V
- Type of connectors: FASTON 187 (4.75×0.8mm)
- Dimensions (W x H x D mm): 151 × 65 × 95
- Weight (Kg): 1.9
- Operating temperature (C): 20C
