Kit of 16 ultra professional cameras Dahua Starlight 5MP IR 80m, DVR 16 channels 5MP WizSense and mounting accessories

The Ultraprofessional Dahua 5MP 4K surveillance kit includes 16 high-resolution cameras , each offering 4K quality for detailed and clear images, a Dahua WizSense DVR with 16 channels, 5MP resolution and mounting accessories.

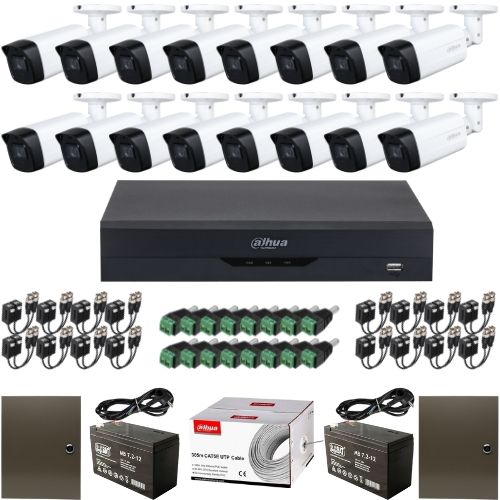

Dahua ultra-professional surveillance kit components:

• 16 x Dahua Surveillance Cameras, HDCVI Bullet Starlight 5MP, IR 80m, IP67 – HAC-HFW1500TH-I8-0360B-S2
• 1 x DVR Dahua WizSense 16 channels penta-brid 5MP – XVR5116HS-I3
• 16 x Set of 2 passive video balloons PFM800-4K, 1 channel, Max. 4K, HDCVI/TVI/AHD/CVBS
• 1 x UTP CAT5E Dahua cable, Roll 305m
• 2 x power supplies with back-up 12 V 10A in switching with metal box with key
• 2 x Accumulators MB 7.2-12 VRLA
• 2 x Mains power cable with SHUCKO plug and 3 wires
• 16 x TATA power plugs with screw

The Starlight Dahua HAC-HFW1500TH-I8-0360B-S2 outdoor bullet type camera has a video resolution of 5 Megapixels (2880 × 1620 pixels), a 3.6 mm fixed lens that allows a visual angle of 109. The camera is equipped with 2 Smart IR LEDs that offer the possibility of viewing images at a distance of 80 m both indoors and outdoors.

Technical specifications of Dahua 5MP Starlight IR 80m outdoor analog camera:

• Manufacturer: Dahua
• Sensor: 1/2.7 inch CMOS
• Resolution: 5MP
• Lens: 3.6mm viewing angle 77.5
• Minimum illumination: 0.02Lux/F1.85, 30IRE, 0 Lux IR on
• Infrared distance: 80m
• Special functions: Starlight; Smart IR; BLC/HLC/DWDR
• Plug: BNC
• Technologies: CVI/TVI/AHD/CVBS
• Audio: It doesn”t have
• Power supply: 12V±30% DC
• Consumption: Max 5.1W (12V DC, IR on)
• Operating temperature: From 40C to +60C
• Degree of protection: IP67
• Case type: Bullet, metal+plastic
• Dimensions: 240.7 mm × 90.7 mm × 90.4 mm
• Weight: 410g

Starlight technology from Dahua

Dahua “s Starlight technology is an advanced feature for surveillance cameras, which allows them to capture clear and detailed images even in extremely low light conditions, close to complete darkness.

It uses light-sensitive sensors and special algorithms to increase the brightness and clarity of images at night. Basically, Starlight makes a surveillance camera able to “see” much better at night than an ordinary camera, offering security and quality images, regardless of the time of day.

Dahua WizSense DVR with 16 channels penta-brid 5MP

The DVR offers H.265+/H.265 video compression, support for Full-channel AI Coding and compatibility with multiple video formats (HDCVI/AHD/TVI/CVBS/IP). It can manage up to 24 IP channels (6MP/channel) and a bandwidth of 128 Mbps. It includes advanced functions such as Perimeter Protection (4 channels), SMD Plus (16 channels), facial recognition (2 channels) and IoT and POS integration. Ideal for intelligent surveillance.

Dahua WizSense 4 channel 5MP DVR technical specifications:

• Supported technologies: HDCVI/AHD/TVI/CVBS/IP
• Analog video inputs: 16x channels
• IP video inputs: 16 + 8 channels, resolution up to 6 Mp/channel
• Video outputs: 1x HDMI, 1x VGA
• Playback resolution: VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• Audio Inputs/Outputs: 1x RCA, 16x coaxial/1, RCA
• Bidirectional communication: Yes (shares the same audio input with the first channel)
• Recording resolution: 5M-N, 4M-N, 1080p, 1080N, 720p, 960H, D1, CIF
• Recording mode: Manual, schedule (general, continuous), MD (video detection: motion detection, video loss, manipulation), alarm, stop
• Video compression: AI Coding/H.265+/H.265/H.264+/H.264
• Interface: 1x RJ-45 port (1000 Mbps)

• Network protocol: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

• Smart Phone Compatibility: iPhone, iPad, Android

• Intercompatibility: ONVIF 16.12, CGI
• HDD: 1x SATA port (capacity up to 16 TB)

• Backup mode: USB, network
• Alarm: Yes
• USB: 2x USB port (1x USB 2.0; 1x USB 3.0)

• RS485: 1x Port, PTZ control
• Special Functions: Perimeter protection; Facial detection; Facial recognition; SMD Plus
• Operating temperature : from -10C – +55C

• Humidity: 10% – 90%

• Power supply: DC12V / 2A

• Consumption: <12 W (without HDD)
