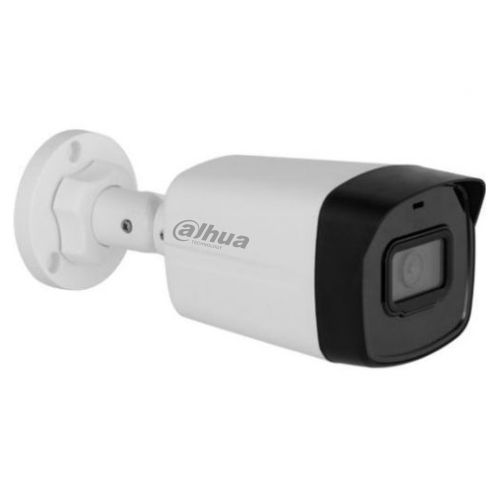

IP surveillance camera, Bullet, 4 MP, Microphone, IR 30 m, 3.6 mm, IP67 – Dahua IPC-HFW1430TL2-A-0360B

The IP surveillance camera Dahua IPC-HFW1430TL2-A-0360B is equipped with a 1/3.2″ CMOS image sensor and with a maximum resolution of 4 MP ( 2560 × 1440 ) at 30 frames per second. The camera also has 3.6 mm fixed lens , 64 MB RAM, built-in microphone, IP67 protection, ROI, SMART H.264+/H.265+, RJ-45 port (10/100 Base-T), FTP storage and plastic case.

Technical specifications of the Dahua IPC-HFW1430TL2-A-0360B surveillance camera:

• Manufacturer: Dahua
• Case type: Bullet
• Sensor: 1/3″ CMOS
• Resolution: 4 MP, 2560 (H) × 1440 (V)
• Video compression: H.265; H.264; H.264B; MJPEG (only supported by secondary stream)
• Minimum illumination: 0.01 lux at F2.0 (Color, 30 IRE)
• IR distance: 30 m
• Lens: fixed, 3.6 mm
• Viewing angle: H: 76; V: 40; D: 92
• Communication interface: RJ-45 (10/100 Base-T)
• Electronic shutter speed: Auto/Manual 1/3 s1/100,000 s
• Audio: Integrated microphone
• Registration: FTP
• Special functions: HLC, DWDR, White Balance, Auto Gain Control , Noise Reduction, Motion detection, Region of Interest (RoI), Smart Illumination, Image Rotation, Mirror, Privacy Masking
• Alarm: Yes
• Interoperability: ONVIF (Profile S; Profile T); CGI
• Degree of protection: IP67
• Power supply: 12 VDC/PoE
• Consumption: minimum: 1.4 W (12 VDC); 2.1 W (PoE) | maximum: (ICR switch+illuminator intensity): 3.0 W (12 VDC); 4.2W (PoE)
• Operating temperature: From 40 C to +50 C
• Dimensions: 198.9 mm × 80.2 mm × 76.2 mm (length x width x height)
• Weight: 0.25 kg

Due to the easy operation and the high performance-cost ratio, the Dahua IPC-HFW1430TL2-A-0360B network camera , from the Dahua Entry series, is applicable to small and medium scenes.

Functions

Smart H.265+ & Smart H.264+

With an advanced scene adaptation rate control algorithm, Dahua”s intelligent encoding technology achieves higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces storage and transmission costs.

Intelligent lighting

Dahua Smart Illumination technology can display optimal images both in a low-light environment and in a completely dark environment. The camera is able to automatically adjust the intensity of the lights.

Motion detection

When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers the alarm or recordings.

Cyber security

Dahua network cameras use a series of security technologies, including authentication and authorization, access control protocols, trust protection, encrypted transmission and encrypted storage. These technologies improve the camera”s defense against external cyber threats and prevent malicious programs from compromising the device.
