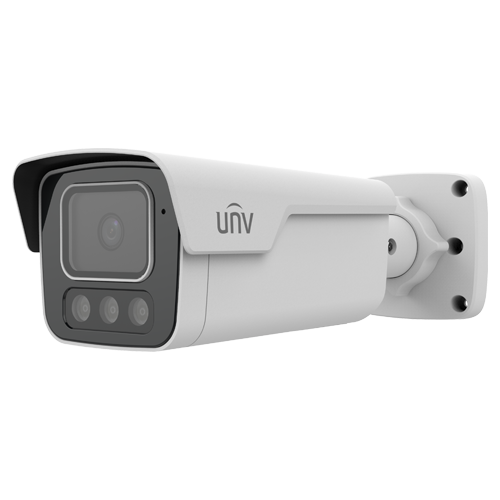

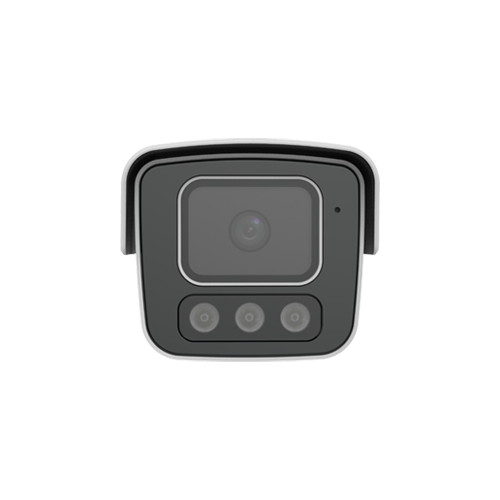

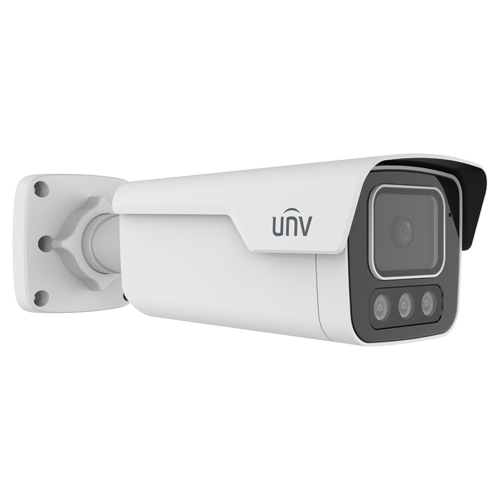

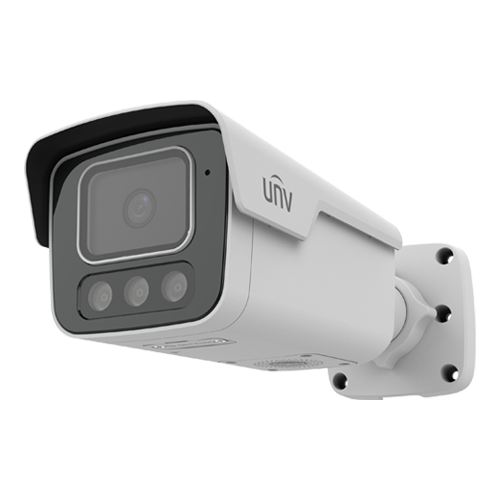

IP surveillance camera, 8MP, 2.8mm lens, IR 40m, WL 40m, Audio, Alarm, PoE – UNV IPC2B18SS-ADF28KMC-I1

The UNV IPC2B18SS-ADF28KMC-I1 surveillance camera of 8 MP (3840 x 2160) at 30 fps offers ultra-high definition images, ensuring clear and detailed captures. With Ultra H.265 compression, it effectively reduces bandwidth and storage requirements while maintaining exceptional image quality. Thanks to ColorHunter technology, the camera captures color images 24/7, even in low light conditions.

Technical specifications of the UNV IPC2B18SS-ADF28KMC-I1 surveillance camera:

• Producer: UNV

• Sensor: 1/2.8″ progressive scan CMOS 8.0 megapixel

• Lens: 2.8 mm, viewing angle 106.5

• Resolution: 8MP (3840×2160) at 30fps, 5MP/4MP/1080P/720P at 30fps

• Video compression: Ultra-H.265/H.265/H.264/MJPEG

• Minimum illumination: 0.001Lux (F1.0, AGC ON), 0 Lux with IR

• IR distance: Smart IR 40m, IR-CUT

• White light distance: 40m
• Communication interface: RJ45 10/100Mbps

• Audio: Built-in microphone and speaker, 1 IN / 1 OUT

• Recording: Micro SD, max. 256 GB (not included)

• Special functions: False alarm filtering, Line crossing detection, Intruder detection, Perimeter entry-exit detection, People counting, Crowd density monitoring, ColorHunter, etc.

• Alarm: 1 IN / 1 OUT

• Degree of protection: IP67

• Power supply: 12 V DC ± 25%, PoE (802.3af)

• Consumption: max. 10W

• Operating temperature: From -30C to +60C

• Case type: Bullet

• Dimensions: 269 × 96 × 82 mm

• Weight: 970 g


The camera supports Corridor Mode 9:16, optimizing viewing in narrow spaces. It is equipped with a built-in microphone and speaker for bidirectional communication, with 1 IN / 1 OUT Audio connections. Blue/red warning lights are integrated to visually signal security events.

With intelligent functions and support for PoE power supply, the camera offers advanced surveillance solutions. The 1 IN / 1 OUT alarm connectivity allows integration with external systems. IP67 protection ensures the camera”s resistance to harsh environmental conditions, being ideal for outdoor use.
