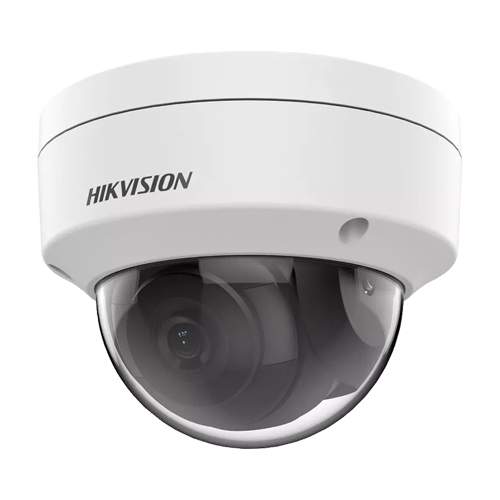

Hikvision”s IP camera is an advanced video surveillance device designed to provide clear and detailed images.
Characteristics
Model / manufacturer: HIKVISION
Sensor: 1/3″ 4.0 megapixel progressive scan CMOS
Resolution: 4MP (2560 x 1440)@20fps 1080 720P
Lens: 2.8mm viewing angle 99Â
Compression: H.265+/H.265/H.264+/H.264/MJPEG Dual-stream
Minimum illumination: Color: 0.01 Lux (F2.0 AGC ON) 0 Lux with IR on
IR distance: 30 meters IR-CUT filter with AUTO-switch
Power supply: 12 V DC ± 25% PoE (802.3af)
Consumption: max. 6.5W
Operating temperature: -30ÂC ~ +60ÂC IP67
Dimensions: Ø 110.8 mm × 84.7mm
Weight: 520 gr.
Network interface: RJ45 10/100Mbps
Audio: It doesn”t have
Alarm: There is none
WDR: 120dB
Anti-vandal protection: IK10
Local registration: None
VCA functions: Motion detection / human-vehicle classification, etc.
Material: Metal and plastic
Setup: iVMS-4200 Hik-Connect
DESCRIPTION
With a 1/3-inch 4.0-megapixel image sensor, this camera can capture video at a high resolution of 4MP (2560 x 1440) at 20fps, as well as 1080P and 720P.
The camera”s 2.8mm lens offers a wide viewing angle of 99, allowing you to have a wide view of the monitored area.
This camera supports multiple formats including H.265+, H.265, H.264+, H.264 and MJPEG. This allows efficient storage space management and fast data transmission without compromising image quality.
In low light conditions, the camera can operate in color mode with a minimum illumination of 0.01 Lux and, in the absence of light, can activate IR illumination up to a distance of 30 meters. It is also equipped with an IR-CUT filter that switches automatically according to the light.
In terms of power, the camera can be powered either by DC 12V (with a tolerance of ±25%) or by PoE (Power over Ethernet) according to the 802.3af standard. With a maximum power consumption of 6.5W, it is energy efficient.
The camera is robust and weatherproof, able to operate in temperatures between -30C and +60C. The IP67 rating indicates that it is water and dust resistant. The dimensions of the camera are 110.8 mm x 84.7 mm, and its weight is 520 grams.
In terms of connectivity, the camera has an RJ45 network interface that allows connection at 10/100Mbps. It has a WDR (Wide Dynamic Range) function of 120 dB that improves visibility in variable lighting conditions. The camera has IK10 vandal protection, which means it is impact resistant.
It provides VCA (Video Content Analysis) features such as motion detection and human-vehicle classification, adding extra security and efficiency to monitoring. The camera is made of a combination of metal and plastic, guaranteeing durability. Finally, for configuration and management, users can access the iVMS-4200 software or the Hik-Connect app.
Hikvision”s IP camera is an advanced solution for surveillance needs, offering high-quality images, resistance to external factors and intelligent video content analysis functions.
