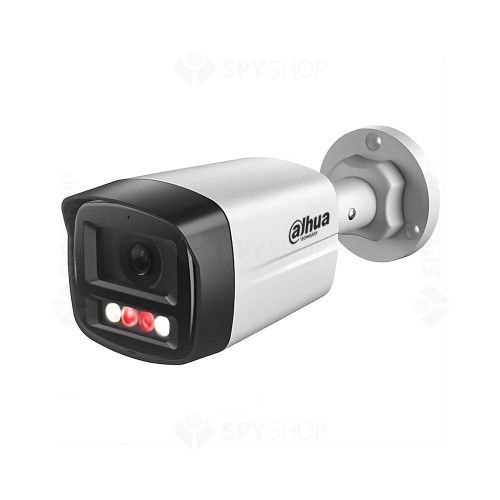

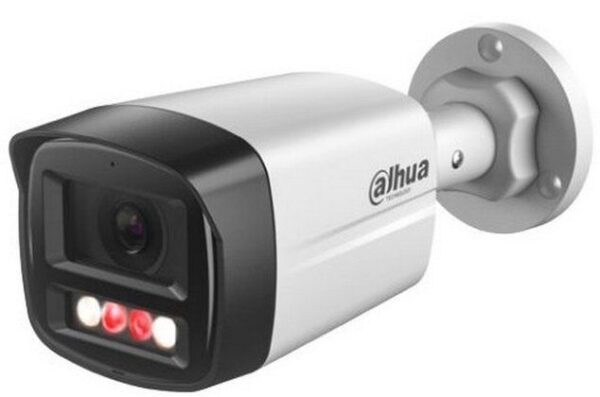

IP surveillance camera 2MP IR 30m 2.8mm lens microphone card PoE Dahua – IPC-HFW1239TL1-A-IL-0280B
In stock
Without VAT
€41,22 €51,66
In stock
IP surveillance camera 2MP IR 30m 2.8mm lens microphone card PoE Dahua – IPC-HFW1239TL1-A-IL-0280B
Specifications
| sensors | 1/2.8 inch progressive CMOS |
| Resolution | 2 MP (1920 x 1090 pixels) |
| Electronic shutter speed | Auto / Manual 1/3 s – 1/100,000 s |
| Angle Adjustment | Pan: 0360, Tilt: 90, Rotation 360 |
| Minimum lighting | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6(B/W, 30 IRE); 0 lux (Illuminator on) |
| Warm light/IR illuminator distance | 30 m |
| Fixed lens | 2.8 mm |
| RAM memory | 128MB |
| ROM memory | 128MB |
| Diaphragm | F1.6 |
| Viewing angle | horizontal: 104, vertical: 55, diagonal: 124 |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Smart codec | Smart H.265+; Smart H.264+ |
| Video bitrate | H.264: 32 kbps 4096 kbps; H.265: 12 kbps 4096 kbps |
| Frames per second | 1-30 FPS |
| Built-in microphone | Yes |
| Motion detection | 4 areas |
| Network port | RJ-45 |
| Network protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTPs; Multicast; ICMP; IGMP; P2P |
| use | 6 |
| Browser | IE, Chrome, Firefox |
| Software | Smart PSS Lite, DSS, DMSS |
| feeding | 12VDC/PoE (802.3af) |
| Maximum consumption | 6.3W (12VDC); 7.8W (PoE) |
| Operating temperature | from -40°C to +60°C |
| Water/dust protection | IP67 |
| Housing | Metal + plastic |
| size | 197.9 mm × 80.2 mm × 76.2 mm |
| Weight | 311g |
This surveillance camera is equipped with cutting-edge technology, designed to provide high-definition images and reliable performance in various lighting conditions and outdoor environments. Its detailed specifications describe a robust and versatile device, suitable for a wide range of security applications.
Sensor and Resolution
Sensor: Equipped with a 1/2.8-inch progressive CMOS sensor, the camera is capable of capturing clear images with a resolution of 2 megapixels (1920 x 1090 pixels), ensuring fine details and high image accuracy.
Minimum Illumination: Outstanding performance in low light conditions is highlighted by the ability to capture color images at just 0.005 lux and black and white images at 0.0005 lux, with full operation even in the absence of light (0 lux with illuminator on).
Lens and Viewing
Lens: Features a 2.8 mm fixed lens with an F1.6 aperture, providing a wide field of view with viewing angles of 104 horizontal, 55 vertical and 124 diagonal, ideal for extended monitoring of large spaces.
Performance and Functionality
Video Compression: Supports multiple video compression formats, including H.265, H.264, and MJPEG, along with Smart H.265+ and Smart H.264+ codecs for increased bandwidth and storage efficiency.
Bit Rate and FPS: Provides flexibility in managing video bit rate, with options between 32 kbps and 4096 kbps, and supports frame rates up to 30 FPS, ensuring smooth and detailed images.
Motion Detection: The ability to define up to 4 motion detection zones increases the effectiveness of monitoring and alerts.
Connectivity and Management
Network and Protocols: Includes an RJ-45 network port and supports a wide range of network protocols, including IPv4, IPv6, HTTP, TCP, UDP, and more, providing flexibility in integration and management into surveillance systems.
Software and Users: Compatible with multiple web browsers and security system management software, such as Smart PSS Lite, DSS, and DMSS, supporting up to 6 users simultaneously.
Food and Sustainability
Power and Consumption: It can be powered by both 12 VDC and PoE (802.3af), with a maximum consumption of 6.3 W (12 VDC) and 7.8 W (PoE), demonstrating energy efficiency.
Operating Temperature and Protection: Operating in a temperature range from -40 C to +60 C and having an IP67 protection rating against water and dust, it is built to withstand difficult outdoor conditions.
