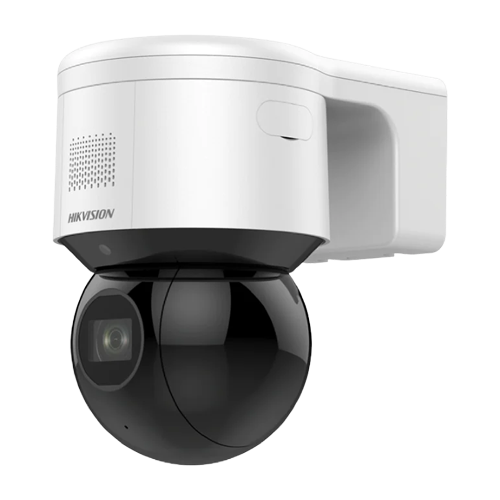

The Hikvision DS-2DE3A404IWG-E/W surveillance camera captures high-quality images with a 4 MP resolution, having the ability to efficiently classify people and vehicles, thanks to advanced automatic learning technology. This optimizes the surveillance performance. Equipped with DarkFighter technology, the camera ensures outstanding images in low light conditions, and the 120 dB WDR function allows capturing details even in situations of intense backlighting.
Technical specifications of the Hikvision DS-2DE3A404IWG-E/W surveillance camera:
- Manufacturer: HIKVISION
- Sensor: 1/2.8″ Progressive Scan CMOS
- Resolution: 4MP (2560×1440), 1080P, 720P
- Video compression: H.265+/H.265/H.264+/H.264/MJPEG
- Minimum illumination: Color: 0.005 Lux (F1.5, AGC ON) B/W: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR on
- IR distance: 50 meters
- White light: 6 meters
- Lens: motorized 2.8-12 mm
- Viewing angle: horizontal: 96.7 – 31.6; vertical: 51.1 – 17.7; diagonal: 115.1 – 36.3
- PTZ: Yes
- Communication interface: 1 x RJ45 10M/100M
- Electronic shutter speed: 1 – 1/30,000 s
- Wi-Fi: Yes, IEEE802.11b, 802.11g, 802.11n
- Audio: Yes, integrated microphone and speaker
- Recording: Micro SD/SDHC/SDXC, up to 256 GB (not included)
- Special functions: Motion detection, facial recognition, line crossing, intruder detection, perimeter entry/exit, unattended luggage, object removal, audio exception detection, human-vehicle classification
- Alarm: Yes
- Degree of protection: IP66
- Power supply: 12 VDC, 3.33A and PoE (802.3at), 42.5 ~ 57 VDC, 0.6A;
- Consumption: max. 16W
- Operating temperature: From – 30C to +65C
- Case type: Speed Dome
- Dimensions: 179.3 mm x 120.5 mm x 182 mm
- Weight: 1125 g
DeepLearning from Hikvision
Deep learning is an advanced branch of machine learning that allows computers to perform tasks comparable to humans, including voice recognition, image classification, object detection, and visual content description.
Deep learning has penetrated the security industry as well, allowing the implementation of several solutions to improve location security and operational efficiency. The benefits of deep learning for attribute recognition and image classification make it extremely valuable in the field of security. It influences every aspect of the security industry from facial and vehicle detection to behavioral analysis.
Hikvision deep learning technology features
Facial recognition
In the face of increasingly complex challenges, security systems must be increasingly precise and efficient. For this reason, Hikvision is at the vanguard of the development of automatic facial detection and recognition technologies.
There are many ways to use facial recognition to keep people safe, to improve business operations, as well as to improve our daily lives with optimized services. Here”s a look at how it works and how we can use it to make the world safer every time it”s needed.
Identification of vehicles
The ability to identify vehicles brings substantial benefits to local authorities, companies and various organizations. This allows, for example, the optimization of access control in schools, offices and production units.
The vehicle recognition technology supports a variety of solutions for traffic management, contributing to the fluidity of traffic in dense urban areas, to improving road safety and to speeding up interventions in case of incidents or road crimes. This technology is mainly applied in the recognition of registration plates and the identification of the specific characteristics of vehicles.
AcuSense technology from Hikvision
AcuSense technology will help you take security to a higher level by identifying threats in real time and by accurately distinguishing people and vehicles. This technology embeds deep learning algorithms into security cameras and video recorders, giving businesses and homeowners smart tools to take security to the next level, both indoors and outdoors.
Hikvision”s DarkFighter technology
Hikvision DarkFighter cameras offer color images at rates of up to 60 fps even in extremely low light conditions, where other cameras can only see black and white. During the day, advanced WDR technology allows clear viewing in areas that are too dark or too bright. DarkFighter cameras have been recognized by the IFSEC Security & Fire Excellence and GIT Security awards.
Superior night performance
Hikvision”s DarkFighter cameras are equipped with a large progressive scan CMOS sensor and a DARKEYE SLA lens with a very large F0.95 aperture. These characteristics allow the capture of remarkable color images even in extremely dark environments, up to a light level of 0.002 lux. To maintain a superior image quality, the cameras automatically switch to monochrome mode by removing the IR filter when the illumination drops below 0.002 lux, thus increasing the sensor”s sensitivity and ensuring clear and precise details in any lighting conditions.
Smart functions
A wide range of intelligent functions are integrated in Hikvision”s DarkFighter cameras.
- Detailed tracking stream: The third video stream can be directed to a different source for recording or display at a predefined resolution, thus providing additional details about a specific area when needed.
ANPR; - Built-in ANPR analysis: Allows the detection and recognition of vehicle license plates and the transmission of ANPR information to a Smart NVR or iVMS5200P for access management.
