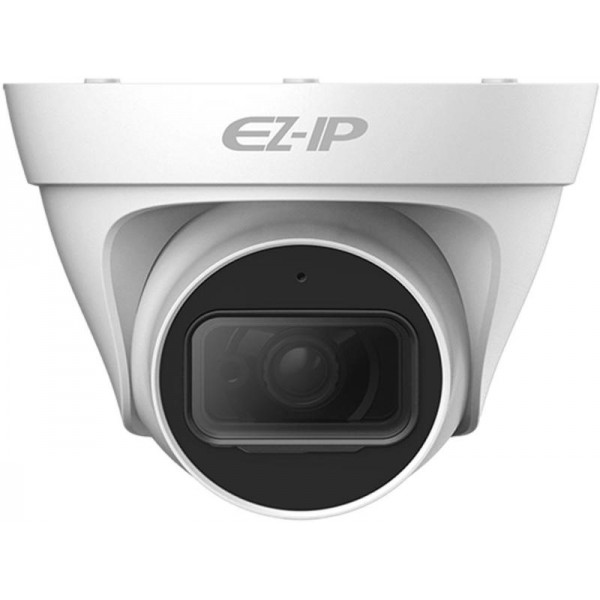

IP indoor camera, 2MP Full HD CPI-T1B20 Description:
Dome IP Camera Outdoor 1 / 2.7 “2 Megapixel Progressive CMOS, 25fps @ 1080P, DWDR, Day / Night (ICR) 3DNR AWB, AGC, BLC, compression H.265 + / H.265 dual stream, Smart IR 30m, 2.8mm lens (optional 3.6mm), IP67, operating temperature of -30 ° C ~ 60 ° C, DC12V power PoE (802.3af), metal and plastic.
Chamber Interior Dahua CPI-T1B20-028 is a powerful CMOS image sensor 1 / 2.7 “and has a 2-megapixel Full HD.
Moreover, it has a 2.8 mm fixed lens which offers a wide viewing angle of 103 °.
With this lens, the camera is usable even for surveillance of large areas such as car parks, railway stations, airports, institutions, etc.
& nbsp;
This model is equipped with infrared camera, with which you can record clear pictures even at night, over a distance of up to 30 meters.
Another useful feature of this model is the IP camera motion detection, which can be activated in the 4 zones.
BLC
Back Light Compensation – Selectively amplifies parts of the image to compensate for large contrast differences when only a part of the image is brightly lit (eg a person sitting in a very bright door).
3D-DNR (Digital Noise Reduction)
Dynamic Noise Reduction: is a digital video processing technique that measures the noise in the picture and automatically reduces it. DNR function registrants that have a superior video quality.
Specifications
Camera
Sensor
1 / 2.7 “2 Megapixel CMOS Progressive
Effective pixels
1920 (H) x 1080 (V)
RAM / ROM
64MB / 16MB
Scan System
Progressive
Minimum illumination
0.09Lux / F2.0 (Color 1 / 3s, 30IRE), 0.5Lux / F2.0 (Color, 1 / 30s, 30IRE) 0 Lux on IR
S / N
& gt; 50dB
Day / Night
Auto (ICR) / Color / A / N
Gain Control
Auto / Manual
White Balance
Auto / Sunny Day / Night / Outdoor / Manual
Backlight Compensation
BLC / HLC / DWDR
motion detection
On / Off 4 rectangular areas
Region of Interest
On / Off, 4 areas
Digital Zoom
16x
Flip
0 ° / 90 ° / 180 ° / 270 °
Mirror
On / Off
Private Zone
4 rectangular areas
The maximum distance IR
1 LED Smart IR, max 30m
lens
Focal Length
2.8mm (3.6mm optional)
Viewing Angle
H: 115 ° (87.5 °), V: 60 ° (47 °)
Aperture
F2.0
Control Focus
Fix
Lens Type
Fixed incorporated
LIKE
detection
2.8mm: 43.5m
3.6mm: 53.3m
Observer
2.8mm: 17.4m
3.6mm: 21.3m
Recognition
2.8mm: 8.7m
3.6mm: 10.7m
Identification
2.8mm: 4.3m
3.6mm: 5.3m
Video
Compression
H.265 / H.264H / MJPEG (Sub Stream)
Smart Codec
+ Supports H.265 / H.264 +
streaming capacity
2 streams
Resolution
1080P (1920×1080) / 1.3M (1280×960) / 720P (1280×720) / VGA (640×480) / D1 (704×576) / CIF (352×288)
FPS
Main Stream: 1080P (1-25fps)
Under Stream D1 (1-25fps)
Control Bit Rate
CBR / VBR
Bit Rate
H.264: 32K ~ 8192Kbps
H.265: 12K ~ 6400Kbps
Network
Ethernet
RJ-45 (10 / 100Base-T)
Protocol
HTTP, TCP, ARP, RTSP, RTP, UDP, DHCP, DNS, IPv4, NTP, Multicast, ICMP, IGMP
Compatibility
ONVIF Profile S
Method streaming
Unicast / Multicast
Number of users
Maximum 10/20 users login simultaneously
Management software
Smart PSS, DSS Easy4ip
Smart Phone
iOS, Android
General
Power
DC12V, PoE (802.3af)
consumption
& lt; 4.8W
Operating Environment
-30 ° C ~ 60 ° C, relative humidity & lt; 95%
Standard protection
IP67
Size
Ø109mm x 85.5mm
weight
0.24Kg
Case
Metal & amp; Plastic
