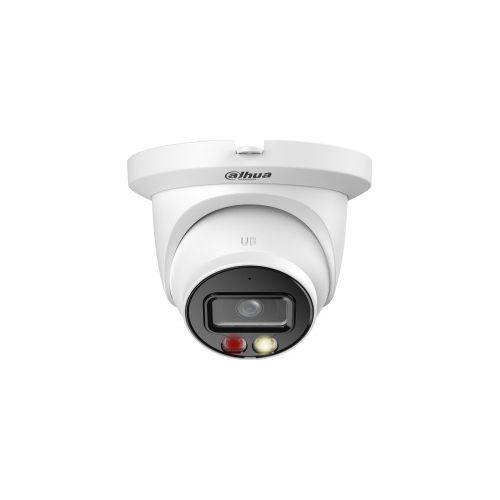

IP Camera, 8MP, 2.8mm lens, Smart Dual Light IR 30m WL 30m, Microphone, PoE, WizSense – Dahua IPC-HDW2849TM-S-IL-0280B

The Dahua IPC-HDW2849TM-S-IL-0280B surveillance camera offers 8MP 4K resolution, capturing images at 3840 x 2160 pixels and 20 frames per second.

Equipped with a fixed 2.8 mm lens, the camera provides a 111 viewing angle. It features dual illumination, with both white LED and IR light. When a target enters the monitored area, the camera activates the white LEDs to capture clear images at a distance of up to 30 meters. After the target leaves the monitored area, the camera automatically switches to IR mode and records black-and-white images at the same distance of 30 meters.

The camera also includes a built-in microphone, allowing additional audio information to be captured from the monitored area.

It also supports Human Detection. Dahua’s intelligent algorithms identify moving people in recorded video and filter out alarms caused by non-human objects, improving the accuracy and efficiency of the alarm system.

Technical Specifications

• Image sensor: 1/2.7″ CMOS
• Maximum resolution: 3840 (H) x 2160 (V)
• ROM: 128 MB
• RAM: 256 MB
• Scanning system: Progressive
• Electronic shutter speed: Auto / Manual, 1/3 s – 1/100, 000 s
• Minimum illumination: 0.008 lux @ F1.6, Color, 30 IRE; 0.0008 lux @ F1.6, B/W, 30 IRE; 0 lux with illuminator on
• S/N ratio: > 56 dB
• Illumination distance: up to 30 m IR; up to 30 m warm light
• Illuminator on/off control: Auto / Manual
• Number of illuminators: 1 multi-core light, IR + warm light
• Angle adjustment: Pan 0-360; Tilt 0-78; Rotation 0-360
• Lens type: Fixed focal
• Lens mount: M12
• Focal length: 2.8 mm
• Maximum aperture: F1.6
• Field of view: 2.8 mm: H 110; V 58; D 132
• Iris control: Fixed
• Minimum focus distance: 2.8 mm: 1.5 m
• DORI distance, 2.8 mm: Detect 84.8 m; Observe 33.9 m; Recognize 17 m; Identify 8.5 m
• Human detection: Supports human classification and accurate detection
• Smart search: Works with Smart NVR for refined intelligent search, event extraction and event video merging
• Video compression: H.265; H.264; H.264H; H.264B; MJPEG, supported only by sub stream
• Smart codec: Smart H.265+; Smart H.264+
• Video frame rate, main stream: 3840 x 2160 at 1-20 fps; 2688 x 1520 at 1-25/30 fps
• Video frame rate, sub stream: 704 x 576 at 1-25 fps; 704 x 480 at 1-30 fps
• Streaming capability: 2 streams
• Resolution: 6M, 3840 x 2160
• Bit rate control: VBR / CBR
• Video bit rate: H.264: 32 kbps – 8192 kbps; H.265: 12 kbps – 8192 kbps
• Day / Night: Auto ICR / Color / B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• White balance: Auto; Natural; Street lamp; Outdoor; Manual; Regional custom
• Gain control: Auto / Manual
• Noise reduction: 3D NR
• Motion detection: Off / On, 4 rectangular areas
• Region of Interest, RoI: Yes, 4 areas
• Smart illumination: Yes
• Smart Dual Light: Yes
• Image rotation: 0 / 90 / 180 / 270; supports 90 / 270 at 2688 x 1520 resolution and lower
• Mirror: Yes
• Privacy masking: 4 areas
• Built-in microphone: Yes, built-in microphone
• Audio compression: G.711a; G.711Mu; PCM; G.726
• Alarm events: Network disconnection; IP conflict; Illegal access; Motion detection; Video tampering; Audio detection; SMD, human; Security exception
• Network port: RJ-45, 10/100 Base-T
• SDK and API: Yes
• Network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE
• Interoperability: ONVIF, Profile S and Profile T; CGI; P2P; Milestone
• User / Host: 20 users, total bandwidth 48 M
• Storage: FTP; SFTP; microSD card up to 256 GB; NAS
• Browser: IE; Chrome; Firefox
• Management software: Smart PSS Lite; DSS; DMSS
• Mobile client: iOS; Android
• Cybersecurity: Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; X.509 certificate generation and import; HTTPS; Trusted boot; Trusted execution; Trusted upgrade
• Certifications: CE-LVD EN62368-1; CE-EMC Electromagnetic Compatibility Directive 2014/30/EU
• Power supply: 12 VDC / PoE, 802.3af
• Power consumption: Basic: 2.6 W, 12 VDC; 3.3 W, PoE
• Maximum power consumption: 5 W, 12 VDC; 5.9 W, PoE, with H.265 + intelligence enabled + DWDR + illuminator intensity
• Operating temperature: -40C to +55C
• Operating humidity: <=95% RH, non-condensing
• Storage temperature: -40C to +60C
• Storage humidity: <=95% RH, non-condensing
• Protection: IP67
• Casing material: Metal
• Net weight: 0.44 kg
• Gross weight: 0.55 kg
