HiLook Video Intercom Kit, 2MP, 4.3″ TFT Screen, 2.4GHz Wi-Fi, PoE, IR 3m, Surface Mount, IP65 VI-K46P

The HiLook VI-K46P video intercom kit includes both an indoor and outdoor station, providing an efficient solution for home access control.

Outdoor Station:

The outdoor unit features a 2MP HD camera with 120 dB WDR technology, delivering clear and detailed images even in challenging lighting conditions. The 1080p resolution ensures precise monitoring, while the integrated IR illumination provides night visibility up to 3 meters, ensuring continuous security. The motion detection function triggers alarms and automatic recordings, further enhancing protection.

Technical Specifications Outdoor Station:

• Processor: High-performance embedded processor
• Operating System: Linux
• ROM: 32 MB
• RAM: 256 MB
• Supplementary Light: IR light up to 3 m
• Resolution: Main stream: 1920 × 1080p; Sub-stream: 704 × 576p
• Camera: 2 MP HD lens
• Wide Dynamic Range (WDR): 120 dB
• Field of View: Horizontal 131, Vertical 78
• Video Compression: H.264
• Audio Input: 1 omnidirectional microphone
• Audio Output: 1 built-in speaker
• Audio Quality: Noise suppression and echo cancellation; volume adjustable
• Audio Compression: G.711U, 64 Kbps
• User Capacity: 2000
• Indoor Station Capacity: 16
• Card Capacity: 10, 000
• Network Protocols: TCP/IP, RTSP
• Network Interface: 1 × RJ-45 10/100 Mbps auto-adaptive
• RS-485: 1 port
• Alarm Inputs: 4
• Lock Control: 1 relay, max 30 VDC, 2 A
• Exit Button: 1
• Door Contact Input: 1
• Tamper Detection: 1
• Physical Button: 1
• Power Consumption: 0 W
• Operating Temperature: -40 C to 55 C
• Humidity: 10%95% (non-condensing)
• Dimensions: 138 × 65 × 27 mm
• Installation: Surface mount
• Protection Rating: IP65
• Power Supply: IEEE 802.3af PoE or 12 VDC
• Environment: Outdoor
• Weight: Net 0.19 kg; Gross 0.414 kg

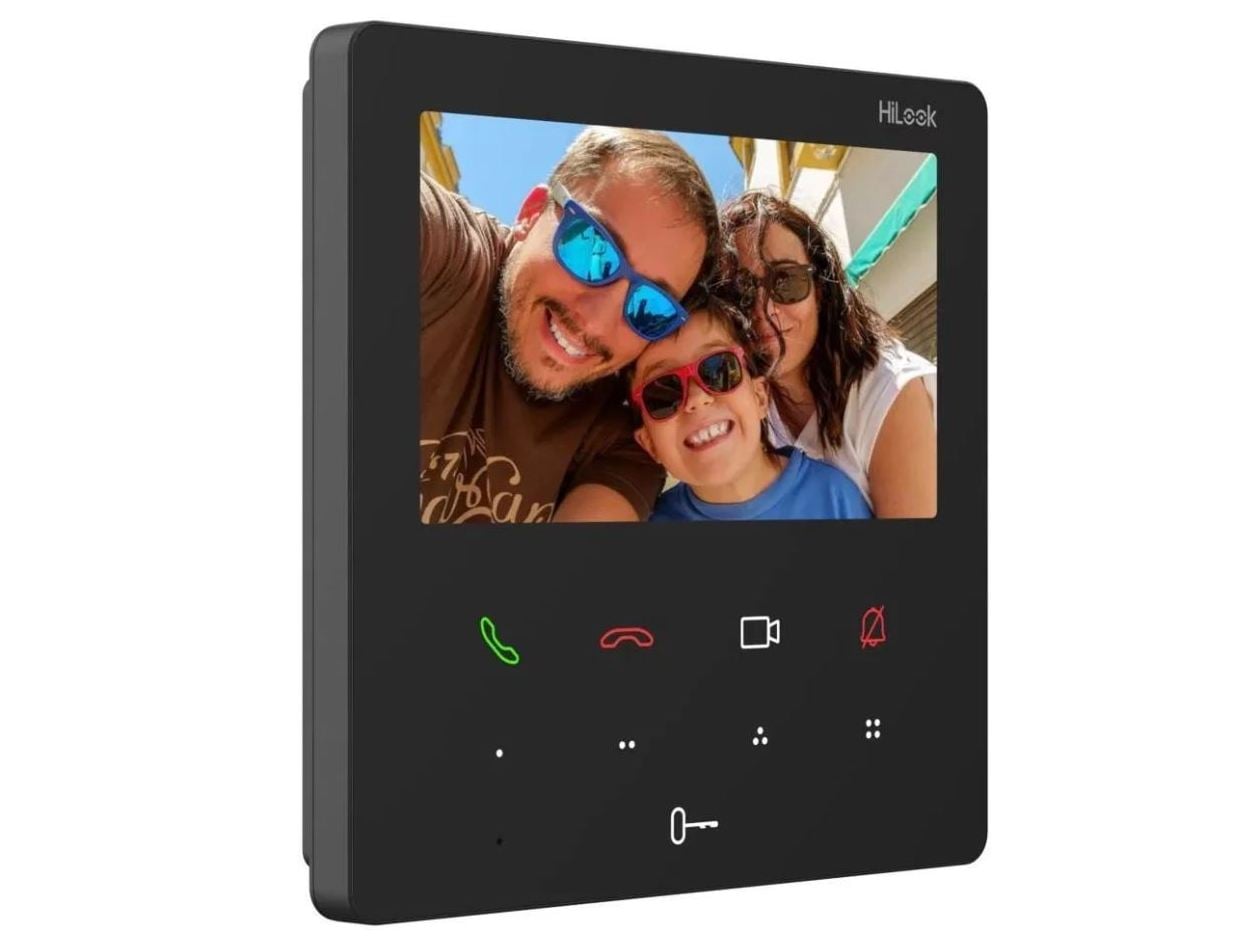

Indoor Station:

The indoor unit features a 4.3-inch TFT color screen for easy interaction and monitoring. It supports up to 200 notifications and 16 indoor extensions for efficient communication throughout the property. Advanced noise suppression and echo cancellation ensure clear audio. Connectivity options include 2.4 GHz Wi-Fi and RJ-45 Ethernet, with SIP protocol support for integration with IP telephony systems.

Technical Specifications Indoor Station:

• Operating System: Embedded Linux
• RAM: 128 MB
• ROM: 16 MB
• Processor: Embedded
• Display: 4.3″ TFT touchscreen, 480 × 272 resolution
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in speaker
• Audio Quality: Noise suppression and echo cancellation; volume adjustable
• Audio Compression: G.711U/G.711A, 64 Kbps
• Notification Capacity: 200
• Indoor Extensions Supported: 16
• Wi-Fi: 802.11 b/g/n, 2.4 GHz
• Network Protocols: TCP/IP, SIP, RTSP
• Network Interface: 1 × RJ-45 10/100 Mbps auto-adaptive
• Power Consumption: ≤ 4 W
• Physical Buttons: 9
• Operating Temperature: -10 C to 50 C
• Humidity: 10%95% (non-condensing)
• Power Supply: IEEE 802.3af PoE or 12 VDC
• Dimensions: 200 × 140 × 15.1 mm (main); 120 × 120 × 21 mm (wall bracket)
• Installation: Wall mount or desktop
• Environment: Indoor
• Weight: Net 197.8 g; With package 336.6 g

Built for durability, both stations feature an IP65 rating, protecting against dust and water. The outdoor unit operates in temperatures from -40 C to 55 C, suitable for any weather conditions. The VI-K46P kit provides a modern, energy-efficient, and reliable solution for both residential and commercial applications.
