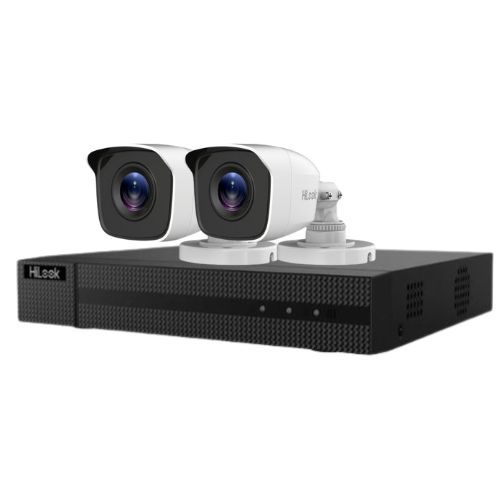

HiLook Surveillance System, 2 Cameras 2MP, IR 20m, 4-Channel 2MP DVR, Rovision Sticker

The HiLook surveillance system includes 2 analog 2MP cameras with a 2.8 mm lens and IR illumination up to 20 m, weather-resistant (IP66) and made of durable plastic. The 4-channel DVR, with 2MP resolution and support for 4 analog cameras, ensures flexible and reliable monitoring.

Hikvision HiLook Surveillance Kit Components:

• 2 × Hikvision HiLook analog cameras, 2MP, 2.8 mm lens, IR 20 m, IP66, plastic THC-B120-P(B)

• 1 × Hikvision HiLook 4-channel DVR, 2MP DVR-204G-K1(S)

• 1 × Rovision sticker

HiLook Analog Surveillance Camera, 2MP, IR 20m, IP66

The Hikvision HiLook THC-B120-P(B) 1080p analog camera is an ideal solution for clear and efficient surveillance. Equipped with Smart IR technology, it provides excellent night visibility with an IR range of up to 20 m, preventing image overexposure.

Technical Specifications Hikvision HiLook Analog Camera, 2MP, IR 20m (THC-B120-P(B)):

• Manufacturer: HiLook by Hikvision

• Sensor: CMOS

• Resolution: 2MP

• Lens: 2.8 mm, 103 viewing angle

• Minimum illumination: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR

• IR distance: 20 m

• Connector: BNC

• Technologies: TVI / AHD / CVI / CVBS

• Audio: No

• Power supply: 12 V DC ±25%

• Power consumption: max. 4 W

• Operating temperature: −40C to +60C

• Protection rating: IP66

• Housing type: Bullet, plastic

• Dimensions: 165 × 62 × 58 mm

• Weight: 150 g

HiLook 4-Channel DVR, 2MP

The Hikvision HiLook DVR-204G-K1(S) is a high-performance DVR that integrates deep learning technology for intelligent detection and accurate classification of human and vehicle targets through Motion Detection 2.0. It supports advanced H.265 Pro+ video compression to save storage space and is compatible with multiple video signal types: HDTVI, AHD, CVI, CVBS, and IP. It also supports up to 5 IP cameras (up to 2MP) and audio transmission over coaxial cable. With encoding capability up to 1080p Lite @15 fps and a maximum transmission distance of 1200 m for 720p HDTVI signals, this DVR is a versatile and efficient solution for modern surveillance systems.

Technical Specifications Hikvision HiLook 4-Channel DVR DVR-204G-K1(S), 2MP Lite:

• Motion Detection 2.0: Human/vehicle analysis based on deep learning

• Video compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

• Encoding resolution: 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF

• Frame rate: 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF @25 fps (PAL) / 30 fps (NTSC)

• Video bitrate: 32 Kbps to 4 Mbps

• Stream type: Video, Video & Audio

• Audio compression: G.711u

• Audio bitrate: 64 Kbps

• IP video input: 1-ch (up to 5-ch)

• Analog video input: 4-ch, BNC interface

• HDTVI input: 1080p25, 1080p30, 720p25, 720p30

• AHD input: 1080p25, 1080p30, 720p25, 720p30

• HDCVI input: 1080p25, 1080p30, 720p25, 720p30

• CVBS input: Supported

• HDMI output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• Audio output: 1-ch, RCA (Linear, 1 kΩ)

• Synchronous playback: 4-ch

• Bandwidth: 64 Mbps

• Network interface: 1 × RJ45, 10/100 Mbps

• SATA interface: 1 × SATA, max. capacity 4 TB

• USB interface: 2 × USB 2.0

• Power supply: 12 V DC, 1.5 A

• Power consumption: ≤ 16 W (without HDD)

• Operating temperature: −10C to +55C

• Operating humidity: 10% to 90%

• Dimensions: 260 × 222 × 45 mm

• Weight: ≤ 0.8 kg (without HDD)

Hik-Connect Mobile Application

Hik-Connect helps you protect your home, loved ones, or business. Managing your entire security system has never been easier, thanks to an intuitive application that provides full control through a single interface.
