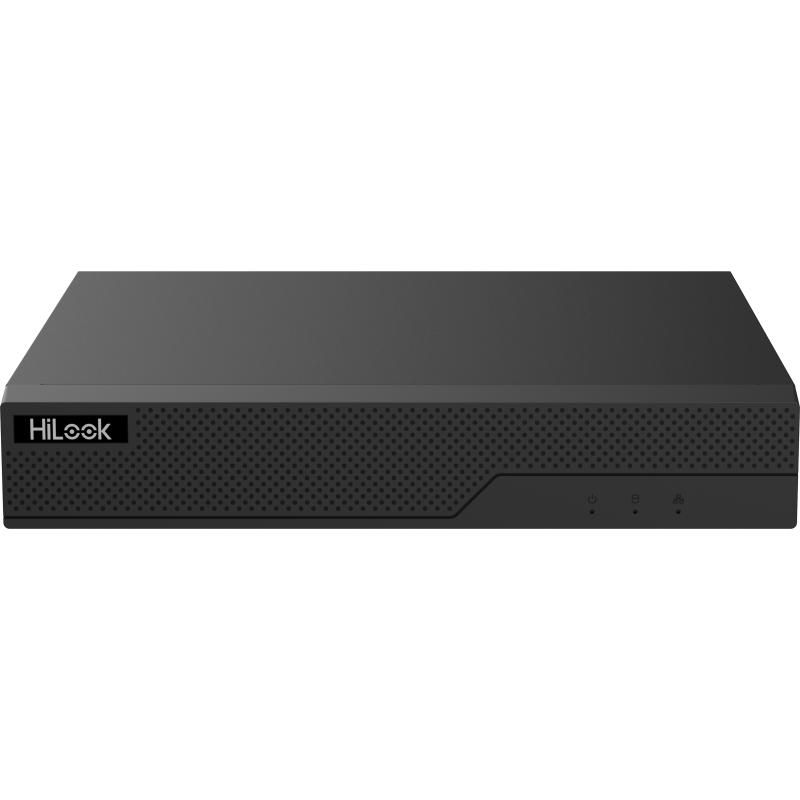

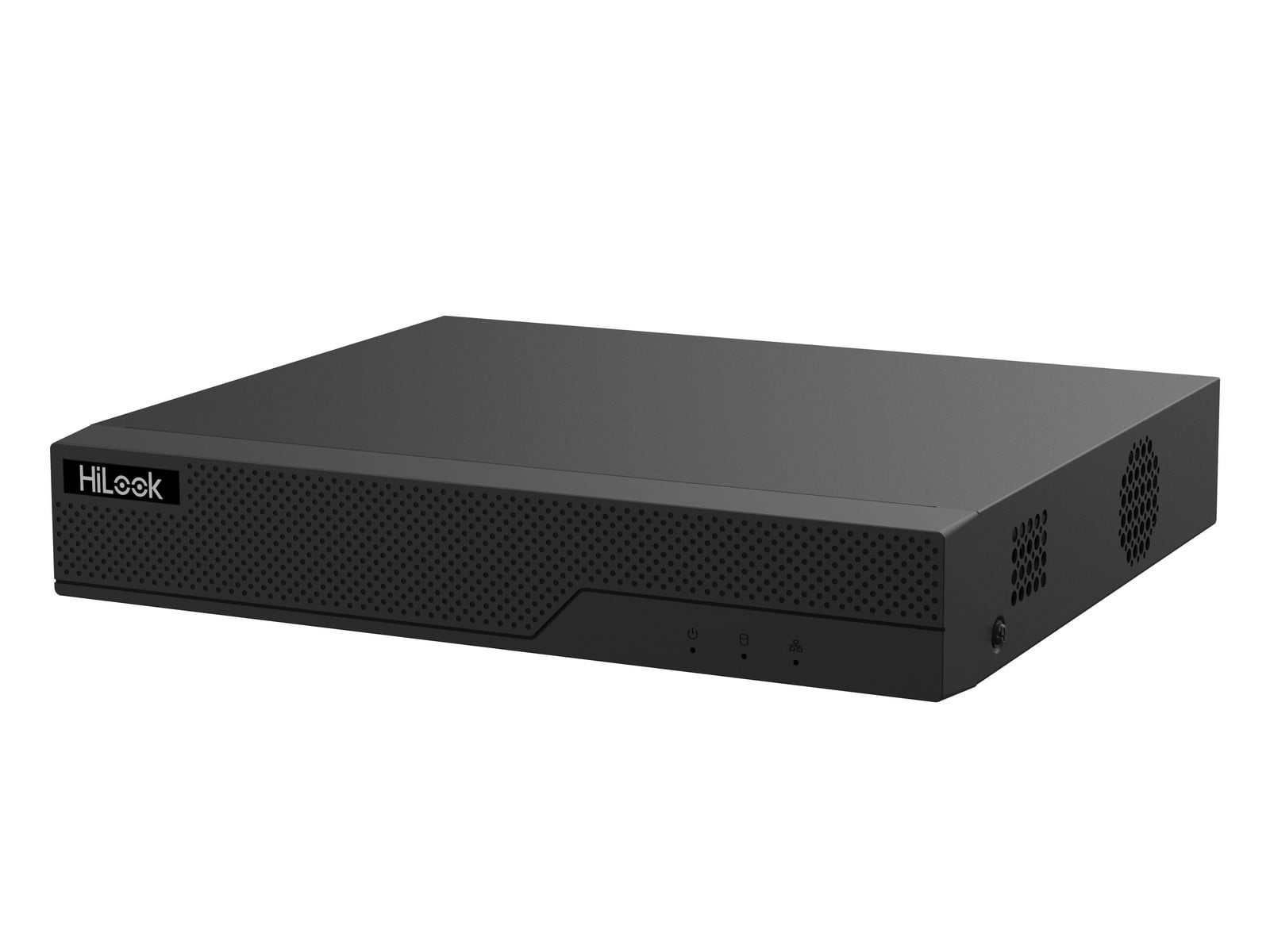

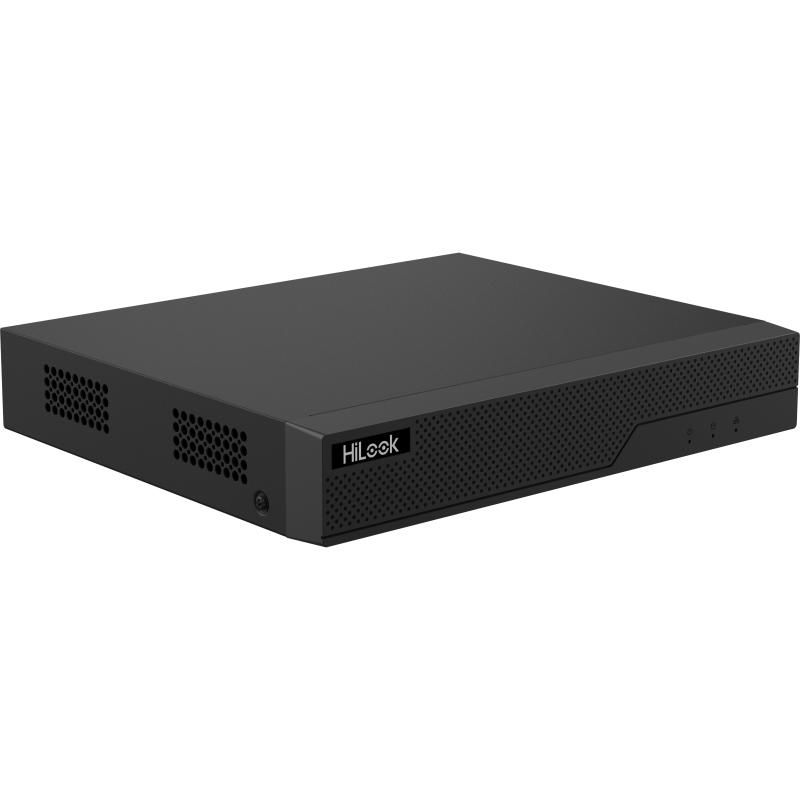

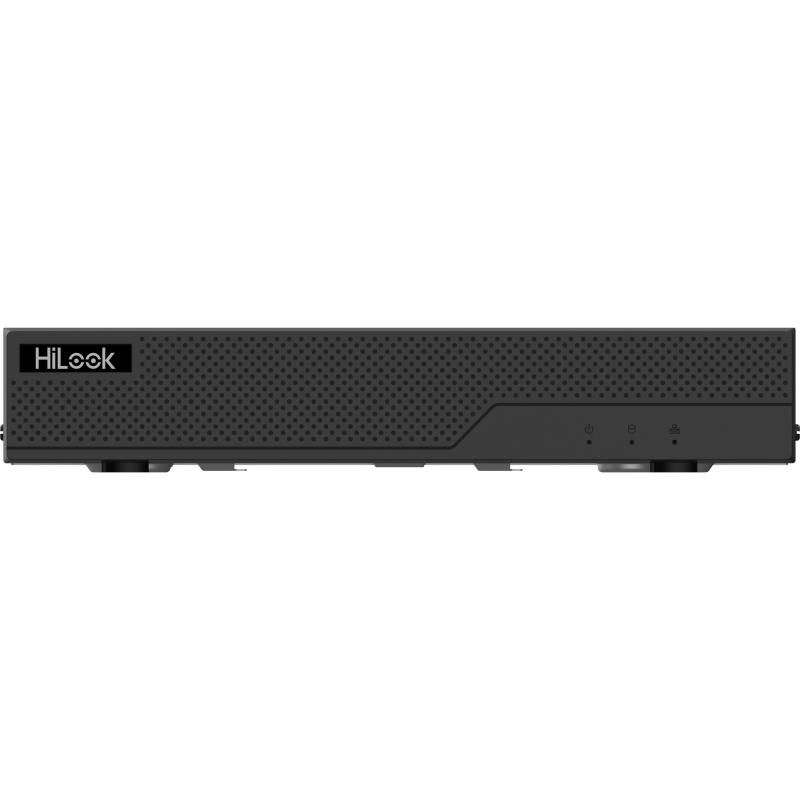

HiLook by Hikvision PoE NVR, 4 channels, 4 PoE ports, 8MP, 4K HDMI, H.265+, 40Mbps, NVR-104MH-C/4P(E)

HiLook by Hikvision NVR-104MH-C/4P(E) is a 4-channel PoE IP NVR with 4 integrated PoE ports and support for IP cameras up to 8MP. The model allows recording with H.265+, H.265, H.264+, and H.264 video formats, has an input bandwidth of up to 40Mbps, HDMI output up to 4K, Full HD VGA output, synchronous playback on 4 channels, and storage on SATA HDD up to 8TB. It is suitable for small surveillance systems, such as homes, offices, shops, receptions, or commercial spaces where IP cameras powered directly via PoE are used.

4-channel IP NVR with 4 integrated PoE ports

The NVR-104MH-C/4P(E) supports up to 4 IP cameras and includes 4 PoE RJ45 10/100Mbps interfaces, compatible with IEEE 802.3af/at. Compatible cameras can be connected and powered directly via the network cable, without separate power sources for each camera. The total PoE budget is a maximum of 50W.

4K HDMI and VGA output for local monitoring

The recorder features an HDMI output with a resolution of up to 4K, 4096 x 2160 at 30Hz, and a VGA output up to 1080p at 60Hz. The display mode allows for simultaneous HDMI/VGA output, useful for connecting to a monitor, TV, or local surveillance system.

H.265+ compression and recording up to 8MP

The model supports H.265+, H.265, H.264+, H.264, and MPEG4 formats. It can record resolutions from 8MP down to QCIF, including 6MP, 5MP, 4MP, 3MP, and 1080p, depending on the connected cameras and system settings.

Synchronous decoding and playback on 4 channels

The NVR allows synchronous playback on 4 channels and has a decoding capacity of up to 8 channels at 1080p at 30fps with AI and 4K disabled, or up to 6 channels at 1080p at 30fps with AI or 4K enabled.

Motion Detection 2.0 with human and vehicle analysis

The Motion Detection 2.0 function includes human/vehicle analysis on 1 channel. This helps filter important events in surveillance systems, especially in scenarios where simple motion might generate unnecessary alarms.

SATA storage up to 8TB and network connection

The recorder has 1 SATA interface for an HDD of up to 8TB and 2 USB 2.0 ports for operation and backup. Network connection is made via an RJ45 10/100Mbps port, and the Hik-Connect protocol is included for remote access and administration.

Technical specifications for HiLook by Hikvision PoE IP NVR, 4 channels, 4 PoE ports, 8MP, 4K HDMI, H.265+, 40Mbps, NVR-104MH-C/4P(E):

• Brand: HiLook by Hikvision
• Model: NVR-104MH-C/4P(E)
• Product type: PoE IP NVR
• Format: 4-ch 1U 4K PoE NVR
• IP camera inputs: 4 channels
• Input bandwidth: 40Mbps
• Output bandwidth: 80Mbps
• Motion Detection 2.0: yes
• Human/vehicle analysis: 1 channel
• HDMI output: 1 channel
• HDMI resolution: 4K 4096 x 2160 / 30Hz, 4K 3840 x 2160 / 30Hz, 2K 2560 x 1440 / 60Hz, 1080p 1920 x 1080 / 60Hz, UXGA 1600 x 1200 / 60Hz, SXGA 1280 x 1024 / 60Hz, 720p 1280 x 720 / 60Hz
• VGA output: 1 channel
• VGA resolution: 1080p 1920 x 1080 / 60Hz, UXGA 1600 x 1200 / 60Hz, SXGA 1280 x 1024 / 60Hz, 720p 1280 x 720 / 60Hz
• Video output mode: HDMI/VGA simultaneous
• Audio output: 1 RCA channel, linear, 1KΩ
• Bidirectional audio: 1 RCA channel, 2.0Vp-p, 1kΩ
• Decoding formats: H.265+, H.265, H.264+, H.264, MPEG4
• Recording resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
• Synchronous playback: 4 channels
• Decoding capacity with AI and 4K Off: 8 channels 1080p at 30fps
• Decoding capacity with AI or 4K On: 6 channels 1080p at 30fps
• Remote connections: 32
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• Network interface: 1 x RJ45 10/100Mbps self-adaptive Ethernet
• PoE interfaces: 4 channels, RJ45 10/100Mbps self-adaptive Ethernet
• PoE power: maximum 50W
• PoE standard: IEEE 802.3af/at
• SATA interface: 1
• HDD capacity: up to 8TB for each disk
• USB interfaces: 2 x USB 2.0
• Power supply: 48V DC or maximum 65W
• Consumption: maximum 10W, without active PoE
• Operating temperature: -10 degrees C to +55 degrees C
• Operating humidity: 10% to 90%
• Case: 1U
• Dimensions: 263 x 223 x 48mm
• Weight: maximum 1.5kg
• Physical interfaces: PoE, LAN, audio out, audio in, HDMI, VGA, USB, 48V DC power input, GND
• Available models: NVR-104MH-C/4P(E)(STD), NVR-104MH-C/4P(E)(NEU)
• CE Certification: 55032, 55035, 61000-3-2, 61000-3-3, 50130-4
