HiLook 4-Channel DVR, up to 3K 5MP, 4× Analog + 2× IP, HDTVI Coaxial Audio, 1× SATA DVR-204Q-M1(E)
HiLook 4-Channel DVR, up to 3K 5MP, 4× Analog + 2× IP, HDTVI Coaxial Audio, 1× SATA DVR-204Q-M1(E) - Image 2

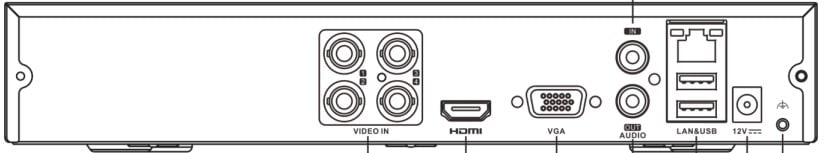

HiLook 4-Channel DVR, up to 3K 5MP, 4× Analog + 2× IP, HDTVI Coaxial Audio, 1× SATA DVR-204Q-M1(E) - Image 3
HiLook 4-Channel DVR, up to 3K 5MP, 4× Analog + 2× IP, HDTVI Coaxial Audio, 1× SATA DVR-204Q-M1(E) [138613]
HiLook 4-Channel DVR, up to 3K 5MP, 4× Analog + 2× IP, HDTVI Coaxial Audio, 1× SATA DVR-204Q-M1(E) [138614]
HiLook 4-Channel DVR, up to 3K 5MP, 4× Analog + 2× IP, HDTVI Coaxial Audio, 1× SATA DVR-204Q-M1(E) [138615]
,

HiLook 4-Channel DVR, up to 3K 5MP, 4× Analog + 2× IP, HDTVI Coaxial Audio, 1× SATA DVR-204Q-M1(E)

Availability:

In stock
Add to wishlist

Without VAT

€48,72

In stock

Bank transfer, Invoice with VAT or no VAT(VIES confirmation), VISA card, Mastercard credit card or cash on delivery. You can pay for your order comfortable cash on delivery in Bulgaria, Hungary, Greece, Poland, Slovakia, Slovenia, Czech Republic and Croatia. Easy Returns 14 days for return items. We ship from Europe. Shipping cost is starting at 10.64 euros without vat depending on the country and weight. Free shipping on orders over €500, oversized deliveries may incur additional shipping charges depending on product weight and dimensions

The HiLook DVR-204Q-M1(E) is a digital video recorder featuring 4 analog channels and support for up to 2 additional IP cameras, offering a maximum recording resolution of 4MP Lite. The device uses H.265 Pro+ video compression, optimizing storage space on hard drives of up to 10 TB.
Its deep-learningbased motion detection technology enables accurate classification of humans and vehicles, significantly reducing false alarms. The DVR also supports audio transmission over coaxial cable and provides HDMI and VGA video outputs for monitor connection.

Technical Specifications HiLook 4-Channel DVR DVR-204Q-M1(E), 4MP, Audio

  • Video compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

  • Encoding resolution: 4 MP Lite / 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF (no 1080p Lite)

  • Shutter speed: 1/3 s to 1/100, 000 s

  • Frame rate:

    • Main stream: 4 MP Lite @ 15 fps

    • Sub stream: WD1 / 4CIF @ 12 fps; CIF @ 25 fps (PAL) / 30 fps (NTSC)

  • Video bitrate: 32 Kbps to 6 Mbps

  • Dual-stream support: Yes

  • Stream type: Video, Video & Audio

  • Audio compression: G.711u

  • Audio bitrate: 64 Kbps

  • IP video input:

    • 1 channel (up to 5 channels total)

    • Enhanced IP: 2 channels (up to 6 channels total)

  • Analog video input: 4 × BNC

  • HDTVI input: Up to 3K (2960 × 1665) @ 20 fps, 5 MP @ 20 fps, 4 MP @ 30 fps

  • AHD input: Up to 5 MP @ 20 fps, 4 MP @ 30 fps

  • HDCVI input: Up to 5 MP @ 20 fps, 4 MP @ 30 fps

  • CVBS input: Supported

  • HDMI output: 1 channel, up to 1920 × 1080 @ 60 Hz

  • VGA output: 1 channel, up to 1920 × 1080 @ 60 Hz

  • Video output mode: Simultaneous HDMI / VGA

  • Audio input: 1 channel, RCA

  • Audio output: 1 channel, RCA

  • Two-way audio: 1 channel, RCA

  • Synchronous playback: 4 channels

  • Total bandwidth: 72 Mbps

  • Remote connections: 32

  • Network protocols: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

  • Network interface: 1 × RJ45 10/100 Mbps

  • Wi-Fi connectivity: Via USB dongle

  • SATA interface: 1 × SATA

  • HDD capacity: Up to 10 TB per drive

  • USB interface: Rear panel: 2 × USB 2.0

  • Power supply: 12 VDC, 1.5 A

  • Power consumption: ≤ 8 W (without HDD)

  • Operating temperature: -10C to +55C (+14F to +131F)

  • Operating humidity: 10% to 90%

  • Dimensions (W × D × H): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 in)

  • Weight: ≤ 1 kg (without HDD, 2.2 lb)

SKU: DVR-204Q-M1(E) Categories: ,
