Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker
Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker - Image 2
Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker - Image 3
Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker - Image 4
Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker - Image 5
Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker [138485]
Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker [138486]
Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker [138487]
Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker [138488]
Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker [138489]
,

Hikvision HiLook Surveillance Kit, 4 × 2MP Cameras, IR 20m, 4-Channel 4MP DVR, Accessories, 500GB HDD, Rovision Sticker

Availability:

In stock
Add to wishlist

Without VAT

€113,46

In stock

Bank transfer, Invoice with VAT or no VAT(VIES confirmation), VISA card, Mastercard credit card or cash on delivery. You can pay for your order comfortable cash on delivery in Bulgaria, Hungary, Greece, Poland, Slovakia, Slovenia, Czech Republic and Croatia. Easy Returns 14 days for return items. We ship from Europe. Shipping cost is starting at 10.64 euros without vat depending on the country and weight. Free shipping on orders over €500, oversized deliveries may incur additional shipping charges depending on product weight and dimensions

The HiLook surveillance system includes 4 analog 2MP cameras with 2.8mm lenses and IR illumination up to 20 m, weather-resistant (IP66) and made of durable plastic.
The 4-channel DVR, with 4MP resolution and support for 4 analog cameras plus 2 IP cameras, ensures flexible monitoring.
The package includes all necessary installation accessories and a 500GB HDD for recording storage.

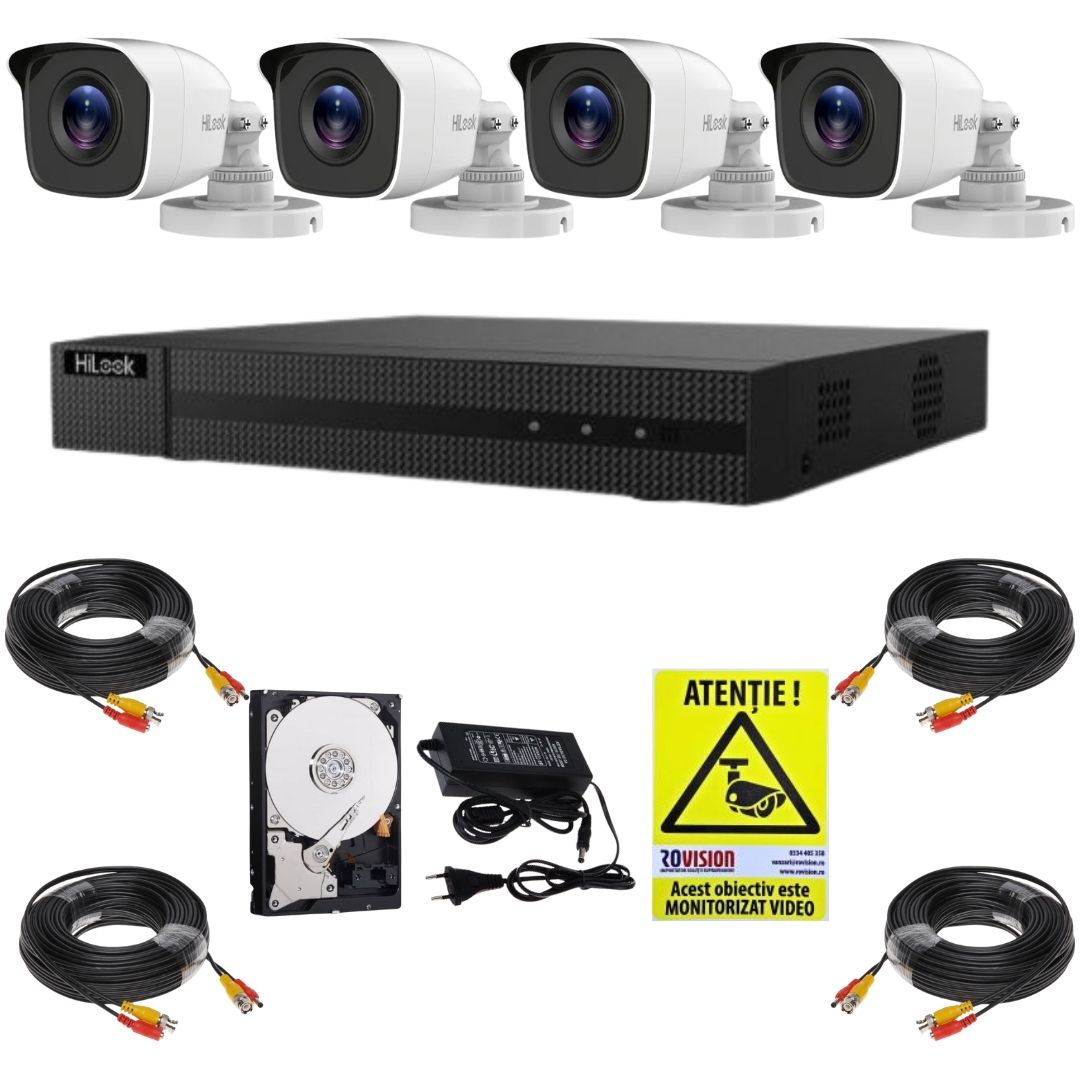

Hikvision HiLook Surveillance Kit Components:

  • 4 × Hikvision HiLook analog cameras, 2MP, 2.8mm lens, IR 20m, IP66, plastic THC-B120-P(B)

  • 1 × HiLook 4-channel DVR, 4MP, 4× analog + 2× IP, HDTVI coaxial audio, 1× SATA DVR-204Q-M1(E)

  • 1 × Power distribution splitter for 4 cameras

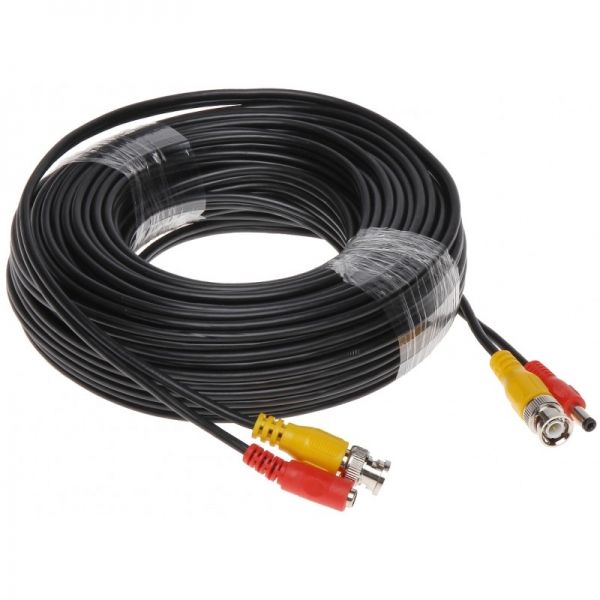

  • 4 × 10 m pre-terminated BNC+DC cables for power supply and video signal

  • 1 × Refurbished 500GB hard disk

  • 1 × 12V 12.5A power supply

  • 1 × Rovision sticker

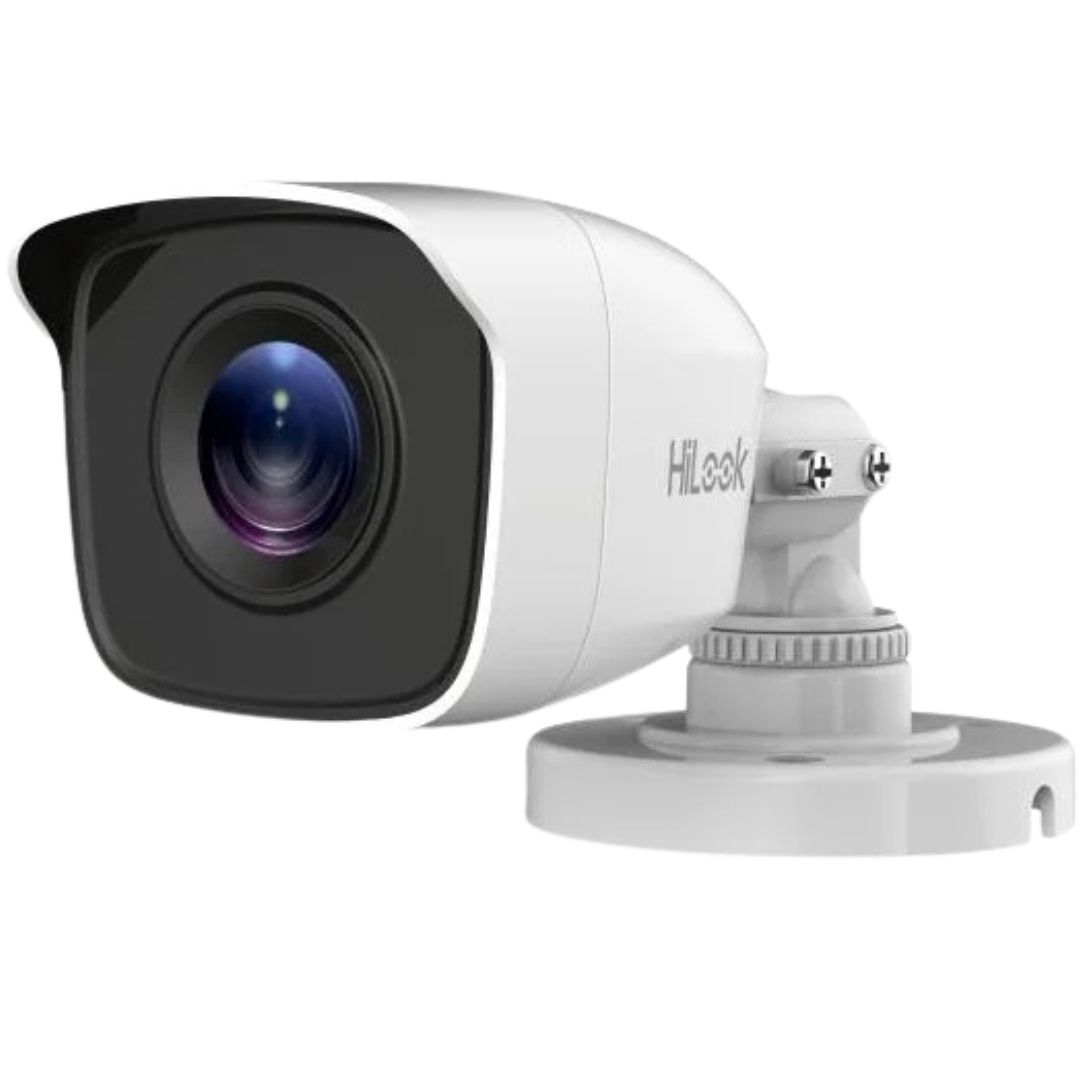

HiLook Analog Surveillance Camera, 2MP, IR 20m, IP66

The Hikvision HiLook THC-B120-P(B) 1080p analog camera is an ideal solution for clear and efficient surveillance. Equipped with Smart IR technology, it provides excellent night visibility with an IR range of up to 20 m, preventing image overexposure.

Technical Specifications Hikvision HiLook Analog Camera, 2MP, IR 20m (THC-B120-P(B)):

  • Manufacturer: HiLook by Hikvision

  • Sensor: CMOS

  • Resolution: 2MP

  • Lens: 2.8mm, 103 viewing angle

  • Minimum illumination: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR

  • IR distance: 20 m

  • Connector: BNC

  • Technologies: TVI / AHD / CVI / CVBS

  • Audio: No

  • Power supply: 12 VDC ±25%

  • Power consumption: max. 4 W

  • Operating temperature: −40C to +60C

  • Protection rating: IP66

  • Housing type: Bullet, plastic

  • Dimensions: 165 × 62 × 58 mm

  • Weight: 150 g

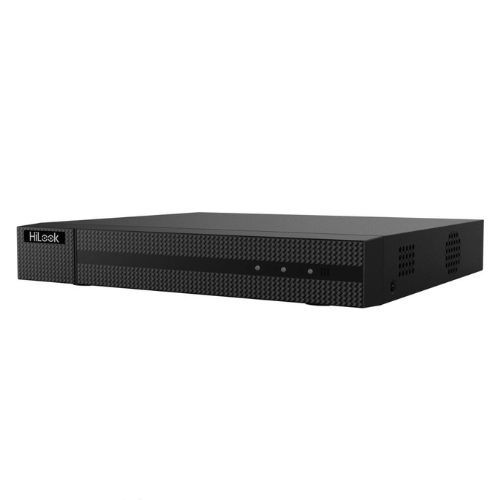

HiLook 4-Channel DVR, 4MP DVR-204Q-M1(E)

The HiLook DVR-204Q-M1(E) is a digital video recorder with 4 analog channels and support for up to 2 additional IP cameras, offering a maximum resolution of 4MP Lite.
It uses H.265 Pro+ video compression, optimizing storage space on hard drives of up to 10 TB.
Deep learning-based motion detection technology enables accurate classification of people and vehicles, reducing false alarms. The DVR also supports coaxial audio transmission and provides HDMI and VGA outputs for monitor connection.

Technical Specifications HiLook 4-Channel DVR DVR-204Q-M1(E), 4MP:

  • Video compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

  • Encoding resolution: 4MP Lite / 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF (without 1080p Lite)

  • Shutter speed: 1/3 s to 1/100, 000 s

  • Frame rate:

    • Main stream: 4MP Lite @ 15 fps

    • Sub-stream: WD1/4CIF @ 12 fps; CIF @ 25 fps (PAL) / 30 fps (NTSC)

  • Video bitrate: 32 Kbps to 6 Mbps

  • Dual-stream support: Yes

  • Stream type: Video, Video & Audio

  • Audio compression: G.711u

  • Audio bitrate: 64 Kbps

  • IP video input: 1 channel (up to 5 channels), Enhanced IP: 2 channels (up to 6 channels)

  • Analog video input: 4 BNC channels

  • HDTVI input: Up to 3K (2960 × 1665) @ 20 fps, 5MP @ 20 fps, 4MP @ 30 fps

  • AHD input: Up to 5MP @ 20 fps, 4MP @ 30 fps

  • HDCVI input: Up to 5MP @ 20 fps, 4MP @ 30 fps

  • CVBS input: Supported

  • HDMI output: 1 channel, up to 1920 × 1080 / 60 Hz

  • VGA output: 1 channel, up to 1920 × 1080 / 60 Hz

  • Video output mode: Simultaneous HDMI / VGA

  • Audio input: 1 channel, RCA

  • Audio output: 1 channel, RCA

  • Two-way audio: 1 channel, RCA

  • Synchronous playback: 4 channels

  • Total bandwidth: 72 Mbps

  • Remote connections: 32

  • Network protocols: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

  • Network interface: 1 × RJ45 10M/100M

  • SATA interface: 1 × SATA

  • HDD capacity: Up to 10 TB per drive

  • USB interface: Rear panel: 2 × USB 2.0

  • Power supply: 12 VDC, 1.5 A

  • Power consumption: ≤ 8 W (without HDD)

  • Operating temperature: −10C to +55C

  • Operating humidity: 10% to 90%

  • Dimensions (W × D × H): 260 × 222 × 45 mm

  • Weight: ≤ 1 kg






SKU: 48454- Categories: ,
