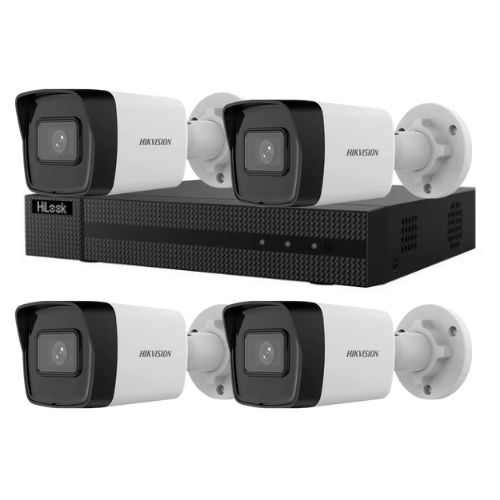

Hikvision HiLook surveillance kit 4 IP cameras 4MP PoE IR 30m IP67 and NVR 4 channels 6MP PoE 36W 1 SATA port

The surveillance system consists of 4 Hikvision DS-2CD1041G0-I-2.8mm cameras with 4MP resolution and IR at 30 meters, and a Hilook Hilook NVR NVR-104MH-D/4P(D) with 4 channels, 4MP resolution and PoE, is a modern solution for high quality outdoor video monitoring.

Hikvision HiLook surveillance system content:

• 4 x IP surveillance camera, 4 MP, 2.8mm lens, IR 30m, EXIR 2.0, PoE – Hikvision DS-2CD1041G0-I-2.8mm
• 1 x NVR 4 channels, 6MP, 4 x PoE, bandwidth 60Mbps, Line Intrusion, 1 SATA port – Hikvision HiLook NVR-104MH-D/4P(D)

Hikvision IP camera 4MP PoE IR 30m

The Hikvision DS-2CD1041G0-I IP surveillance camera offers a resolution of 4MP (2560×1440) at 20fps and uses H.265+/H.265/H.264+/H.264 video compression for high storage efficiency. It is equipped with a 2.8mm lens that ensures a viewing angle of 99. EXIR 2.0 technology and IR lighting allow visibility at night up to 30 meters. The camera has advanced motion detection and human/vehicle target classification functions, being powered by PoE and having an IP67 protection for use in outdoor conditions.

Technical specifications of Hikvision IP surveillance camera DS-2CD1041G0-I-2.8mm:

• Model / manufacturer: HIKVISION
• Sensor: 1/3″, 4.0 megapixel, progressive scan, CMOS
• Resolution: 4MP (2560 x 1440)@20fps, 1080, 720P
• Lens: 2.8mm, viewing angle 99
• Compression: H.265+/H.265/H.264+/H.264/MJPEG, Dual-stream
• Minimum illumination: Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
• IR distance: 30 meters, IR-CUT filter with AUTO-switch
• WDR: 120dB
• Local registration: None
• Audio: It doesn”t have
• Alarm: There is none
• Network interface: RJ45 10/100Mbps
• VCA functions: Motion detection / human-vehicle classification, etc.
• Configuration: iVMS-4200, Hik-Connect
• Power supply: 12 V DC ± 25%, PoE (802.3af)
• Consumption: max. 6.5W
• Operating temperature: -30C ~ +60C, IP67
• Dimensions: 170.8mm x 66mm x 69.1mm
• Weight: 270 gr.
• Material: Metal and plastic

NVR Hikvision HiLook 4 channels PoE 6MP

HiLook Hikvision NVR-104MH-D/4P(D) is an NVR with 4 PoE channels for power supply and data transfer. It offers H.265+ compression to save space and supports HDDs up to 6TB. It allows synchronized playback on several channels and remote access through mobile applications, being ideal for surveillance in homes or small businesses.

Technical specifications of 4-channel PoE NVR – Hikvision HiLook NVR-104MH-D/4P(D):

• Number of IP Video channels: 4 x PoE channels
• Resolution: 6MP
• Input/output bandwidth: 40 Mbps/60 Mbps
• HDMI output: 1 channel, 1920 x 1080p/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA output: 1 channel, 1920 x 1080p/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• Decoding format: H.265+/H.265/H.264+/H.264
• Recording resolution: 6 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Network port: 1, RJ-45 10/100 Mbps, self-adaptive Ethernet interface
• Power: ≤ 36W
• Standard: IEEE 802.3 af/at
• Storage: Supports 1 x HDD up to 6TB (not included)
• Alarm input/output: None
• USB ports: 2 x USB 2.0
• Power supply: 48 VDC, 1.8 A
• Consumption: ≤ 10 W (without HDD and PoE disabled)
• Operating temperature: From -10C to 55C
• Dimensions (W x H x L): 265 x 225 x 48 mm
