Access control, Network Access Controller

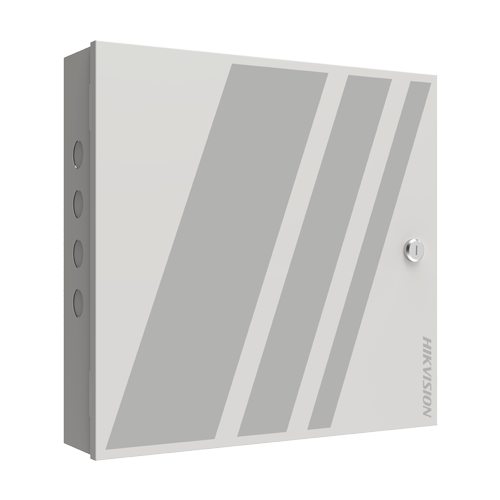

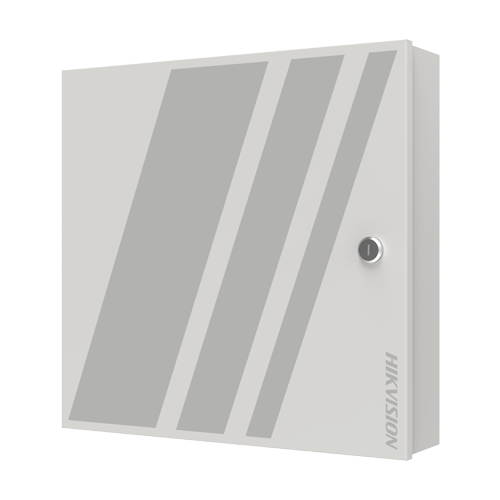

HIKVISION 2-door access control unit, TCP/IP connection, RS485, Wiegand, USB, Web Management – DS-K2702X
Availability:
Out of stock
Without VAT
€381,51
Out of stock
The access control center DS-K2702X from Hikvision has the following features:
- The controller can communicate via web client, card reader and access modules via RS485;
- The access module supports the single-point error detection functions of the card reader and redundant processing to ensure system stability;
- All configurations can be done via the web, without software application;
- Supports professional access control applications, such as multi-door interlocking and anti-passback;
- It supports the spare battery, there are charging / discharging options;
- It has status indicators, such as power supply, communication and operation, ideal for easier identification of problems;
- The possibility of controlling up to 126 doors by adding DS-K2M002X modules (not included).
Technical specifications:
- Manufacturer HIKVISION
- Linux operating system
- No. of controllable doors 2
- User capacity 100,000
- Fingerprint capacity 10,000
- Card capacity 200,000
- Event storage capacity 600,000
- Interfaces 1 x RJ45 Gigabit, 2 x lock control, 2 x exit buttons, 2 x IN door contact, 4 x IN alarm, 4 x OUT alarm, 1 x TAMPER, 7 x RS-485, 4 x Wiegand, 1 x USB 2.0 , 1 x fire interface
- Supply voltage 100-240V AC, consumption max. 72W
- Operating temperature -10C ~ +55C
- Dimensions 417.5 mm x 487.2 mm x 98.3 mm
| Weight | 6,860000 kg |
|---|---|
| Dimensions | 0,00 × 0,00 × 0,00 cm |
