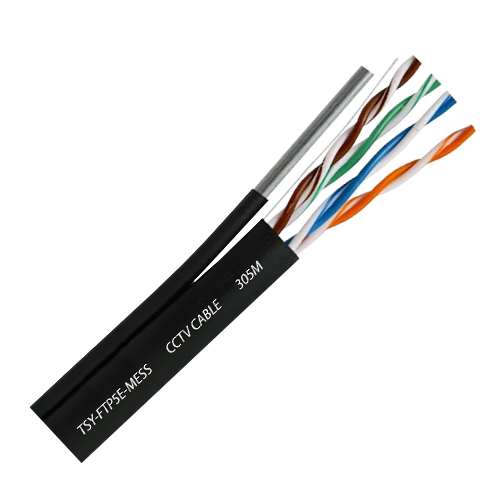

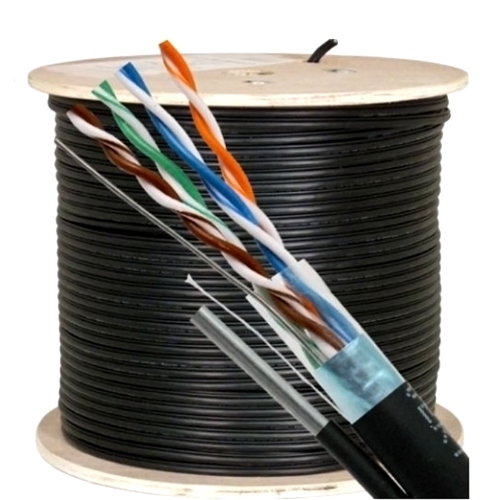

FTP cable 100% 5E’CUPRU autoportant’cat ‘305m’negru FTP5E-TSY-MESS

5E’CUPRU cable 100% ftp ‘gavanizata wire of solid copper twisted sustinere’4×2 ecranaj’fir 0.51mm’folie wood 305m masa’tambur.
insulating black.
Type of cable: FTP Cat5e self-supporting
Sufa standing: 1.2 mm galvanized steel
Conductors: 4 x 2 x 0.51 mm copper 100%
Isolation: 1.04 mm HDPE
PET film: 0015 x 19 mm
Ground wire: 0.4 mm tinned copper
Aluminum foil: 0.07 x 19 mm
Yarn: 500D
Jacket dimensions: 6.2 + 2.5 ± 0.3 mm
Conductor resistance: Max. 9.38 Ohm / 100 m
Resistance unbalanced Max. 2%
Insulation resistance: min. 5000 MOhm / km
Mutual capacitance: Max. 5.6 nF / 100 m
Impedance: 100 ± 15 Ohm
Voltage Test: 1200 V
Weight: 17 Kg
