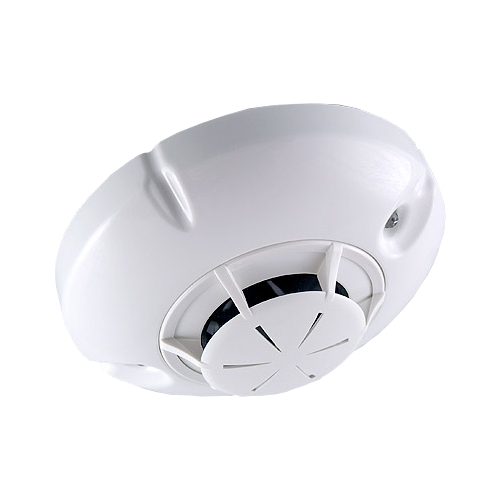

Fixed temperature threshold addressable detector – UNIPOS FD7110

Availability:

In stock
Add to wishlist

Without VAT

€12,11

In stock

Bank transfer, Invoice with VAT or no VAT(VIES confirmation), VISA card, Mastercard credit card or cash on delivery. You can pay for your order comfortable cash on delivery in Bulgaria, Hungary, Greece, Poland, Slovakia, Slovenia, Czech Republic and Croatia. Easy Returns 14 days for return items. We ship from Europe. Shipping cost is starting at 10.64 euros without vat depending on the country and weight. Free shipping on orders over €500, oversized deliveries may incur additional shipping charges depending on product weight and dimensions

Addressable fixed temperature threshold detector, cf. EN54-5. Insulator included, 2-wire connection, optical signaling indicator, does not require device or addressing settings, protected surface: diameter 10m – height max. 8m, consumption 310?A in standby, 2mA in alarm.

Manufacturer: UNIPOS
Type: Fixed temperature threshold addressable detector
Supply voltage: 15-30VDC
Consumption in working mode: 310 ?A
Consumption in alarm: 2mA
Working mode activation time after powering: up to 40s
Reset type: 5s
Work mode activation time after reset: up to 40s
Temperature class: programmable A1S/A2S (cf: EN54-5:2000) or BS
Protected area: 10m diameter (cf EN54-14)
Max installation height: up to 8 m (cf: EN54-14)
Protection class: IP43
Operating temperature: minus 10 gr. C – plus 55 gr. c
Humidity: (93±3)% at 40 gr. c
Connection: 2 shielded wires
Recommended cable section: (0.8-2.5)mm2
Size (base included): Ø100mm h 47mm
Weight (base included): 100
“

SKU: FD7110 Categories: ,
