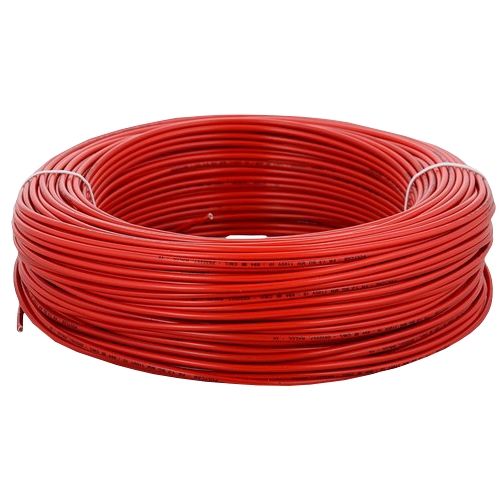

Fire cable JY(St)Y, 1x2x08 shielded, roll 100m MEK-1X2X08

• Flame resistant, in accordance with the EN 60332-1-2 standard
• Max. resistance loop 73.20 Ω / km at 20°C
• Wire colors according to VDE 0815: red/blue
• Operating temperature -30°C to +70°C
• Nominal operating voltage 300 V
• Test voltage 800V (1min/50Hz)
• Insulation resistance min. 100MΩ / km
• Capacity at 800 Hz max. 100nF/km
• Imbalance capacity (unbalanced) 300pF/100 m
• Minimum radius of curvature approx. 10 x cable diameter

Model / manufacturer: MEKAS KABLO
No. of threads: 2
Wire diameter: 0.8 mm
Conductor: twisted in pairs wrapped in AL-PES tape
Sheath: PVC
Thread colors: red / blue
Packaging: 100m roll (price per roll)
Weight: 3.9 Kg/roll
Coat color: Red
“
