Ezviz X5S wireless NVR, 4 channels, 3K, 2 antennas 2.4GHz, 50Mbps, H.265, 1x SATA, CS-X5S(4W)

EZVIZ X5S-4W 4-Channel Wireless NVR, H.265, HDMI/VGA, Wi-Fi 100m

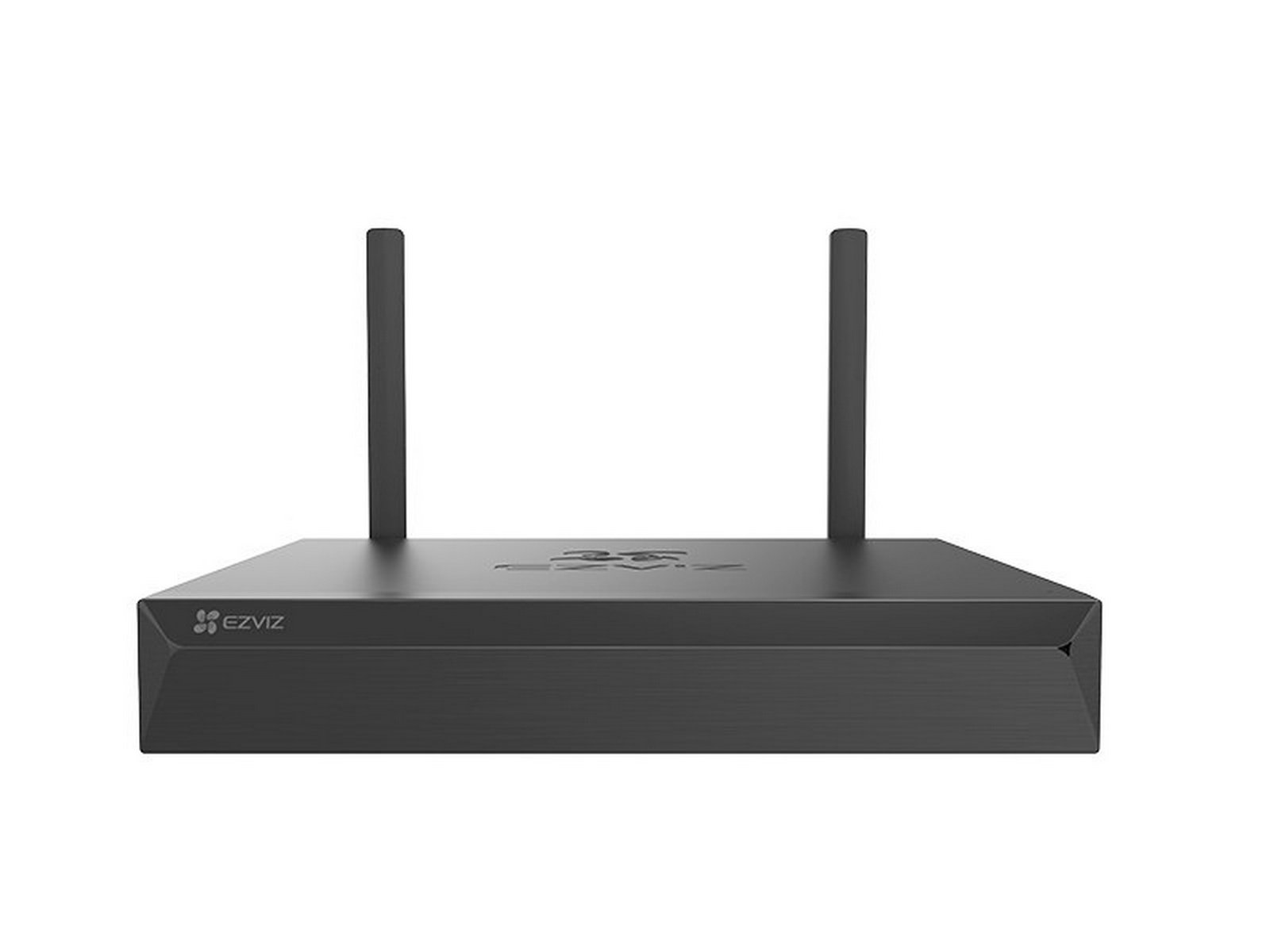

The EZVIZ X5S-4W is a wireless NVR that allows the connection of up to 4 cameras, offering secure storage and smooth playback of images. It is ideal for homes, offices, or commercial spaces, eliminating the need for additional cables.

High Resolution and Video Efficiency

It supports cameras with resolutions up to 5MP and video playback via HDMI at 2592×1944 or via VGA at 1920×1080. H.265 compression optimizes hard disk space usage and reduces bandwidth consumption.

Powerful Wireless Connectivity

Equipped with two 2.4 GHz band Wi-Fi antennas, the NVR can connect cameras up to 100 m away in open field, providing stability and extended coverage.

Large Storage and Secure Backup

The device has a SATA port for a 3.5-inch HDD with a capacity of up to 8TB, ensuring sufficient space for continuous recordings. It supports flexible backup methods both locally and over the network.

Advanced Recording and Playback Features

It offers manual recording, motion detection recording, scheduled recording, or event-based recording. Playback can be done instantly, based on events or logs, with simultaneous multi-channel playback.

Compatibility and Friendly Interface

The NVR supports ONVIF protocols and integration with Hikvision cameras, being compatible with multiple surveillance solutions. It has USB 2.0, HDMI, VGA and LAN ports for simple use and complete connectivity.

Compact Design and Low Consumption

With a modern design, desktop format and power consumption of less than 8W, the X5S-4W is ideal for continuous use, being quiet and energy efficient.

Technical specifications NVR wireless Ezviz X5S, 4 channels, 3K, 2 antennas 2.4GHz, 50Mbps, H.265, 1x SATA, CS-X5S(4W):

• Manufacturer: EZVIZ
• Model: CS-X5S-R100-4W
• Supported channels: 4 wireless/wired cameras
• Supported resolutions: up to 5MP (2592×1944)
• Video compression: H.265, H.264
• Video outputs: HDMI (2592×1944@30Hz), VGA (1920×1080@60Hz)
• Network: 1 x RJ45 10/100 Mbps
• Wireless connectivity: 2 antennas, 2.4 GHz, range up to 100 m
• Ports: 2 x USB 2.0
• HDD slot: 1 x SATA, 18TB
• Recording functions: manual, scheduled, motion detection, event
• Playback: instant, event, tag, log
• Protocols: ONVIF, Hikvision
• Power supply: DC 12V / 1.5A
• Consumption: max. 8W
• Dimensions: 235 × 270 × 44.5 mm
• Weight: ~932 g
• Package: NVR, adapter, mouse, mounting kit, quick guide
