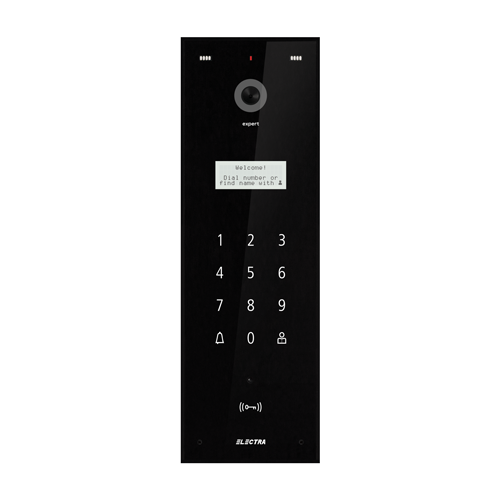

Tempered glass is an essential material for manufacturing the Touch Line product range, bringing a natural elegance. This outdoor panel, recommended for buildings with up to 225 apartments, is surface-mounted and stands out for its minimalist and modern aesthetics.

ELECTRA VPE.0BS03.ELBTL Technical Specifications:

  • Manufacturer: ELECTRA
  • Supply voltage: 12, 0 … 14, 3 Vc.c. (stabilized)
  • Keyboard: TOUCH type, 12 keys, permanently illuminated
  • Audio communication: Full-duplex
  • Data communication: Digital – CAN protocol
  • Maximum number of addressable terminals (apartments): 255
  • Maximum number of addresses for terminals: 1999 (1 … 1999)
  • Access: with tag/access card
  • Video camera module: – CCD, 1/3”, color, 800 TV Lines resolution; viewing angle: 70, video signal: 1Vvv/75 PAL; video camera presence signaling 1 RED LED flashing intermittently; left-right, up-down adjustment
  • Night illumination: 5 white LEDs
  • Displaying the called apartment number and the tenant’s name: LCD display module, 4 x 16 characters with backlight
  • List of tenants: on the electronic display (4 rows, list navigation)
  • Programmable parameters: Access tag code(s); Terminal address; Panel address
  • Anti-theft protection: With audible signaling through the outdoor panel speaker
  • Saving/programming parameters using a computer (PC): Saving access tag code database; List of tenants; Building address; Other messages
  • Possibility of mounting panels in parallel: Maximum 4 video or audio panels in parallel
  • Casing: Electrostatic field painted aluminum profile; Tempered glass screen
  • Mounting: Surface
  • Protection degree: IP44
  • Operating temperature: – 30 C … + 80C
  • Dimensions: 341 x 113 x 36 mm
  • Weight: 2 kg
  • Connection: 5 wires
  • Other: DVR video recording setting, camera red LED cancellation
  • Color: Black

Chemically tempered glass offers multiple fundamental advantages: scratch and shock resistance, impermeability, a long-lasting polished appearance, and easy maintenance. In addition, the outdoor panel has an electronic display ideal for listing tenants and displaying the usage status.

Access is achieved through RFID technology. The RFID reader integrated into the outdoor panel allows easy, fast and comfortable access using proximity tags or cards. The RFID solution was developed to offer users the greatest possible security.
