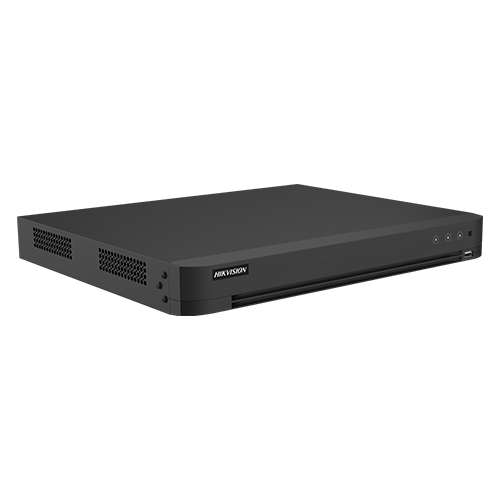

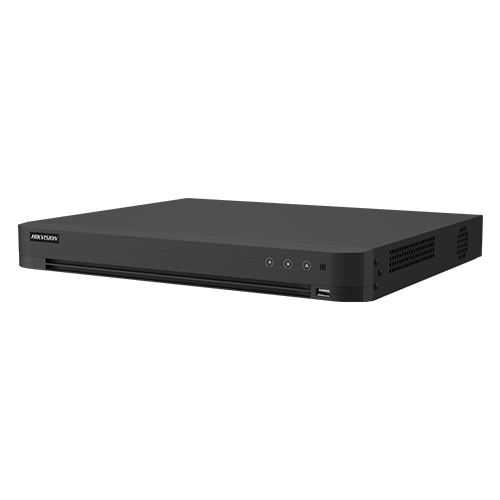

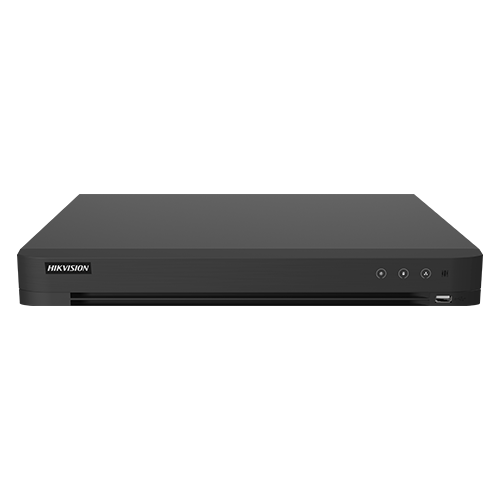

DVR HIKVISION AcuSense 32 channels max 3K, 8 IP channels max. 6MP, AUDIO “over coaxial”, 1U, 2xSATA – iDS-7232HQHI-M2-XT

The HIKVISION iDS-7232HQHI-M2-XT DVR is an advanced surveillance solution, designed for large systems. It has H.265Pro+ video compression to effectively reduce storage costs. Compatible with HDTVI, AHD, CVI, CVBS and IP signals, it supports up to 32 analog channels with a maximum resolution of 3K and 8 IP channels up to 6 MP. Features include Smart Search playback and AcuSense intelligent technologies for improved detection. Network administration is simplified through Hik-Connect and DDNS, and the possibility of limiting the transmission band ensures optimal performance and flexibility in resource management.

Technical specifications DVR 32 channels HIKVISION 5MP Audio – iDS-7232HQHI-M2-XT:

• Model / manufacturer: HIKVISION
• Recording: 3K/5 MP lite at 12fps, 4MP lite at 15fps, 1080P/720P at 20fps
• Supported cameras: HDTVI, AHD, CVI, CVBS, Analog + 8 ch. IP max. 6MP
• Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Playback: 1-16 channels synchronized
• Video analysis (VCA): Motion detection with human/car target classification (32 channels), facial recognition/comparison (4 channels), perimeter protection (8 channels)

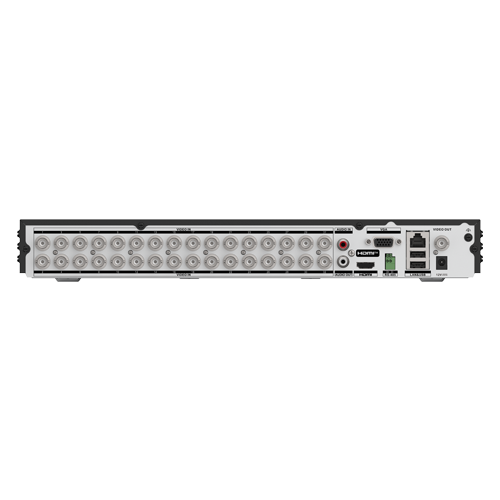

• Inputs: 32 x BNC (audio over coaxial); 1 x Audio, 1 x LAN 10/100/1000 Mbps, 3 x USB, 1 x RS485
• Outputs: 1 x HDMI – 4K, 1 x VGA – 1080P; 1 x Audio
• Storage: 2 x SATA HDD max. 12 TB/HDD (not included)
• Alarm: None
• Power supply: 12V DC, 5A
• Consumption: 60W (without HDD)
• Dimensions: 385 × 315 × 52 mm, 1U
• Weight: max. 2.1 kg (without HDD)
