DVR, DVR and NVR

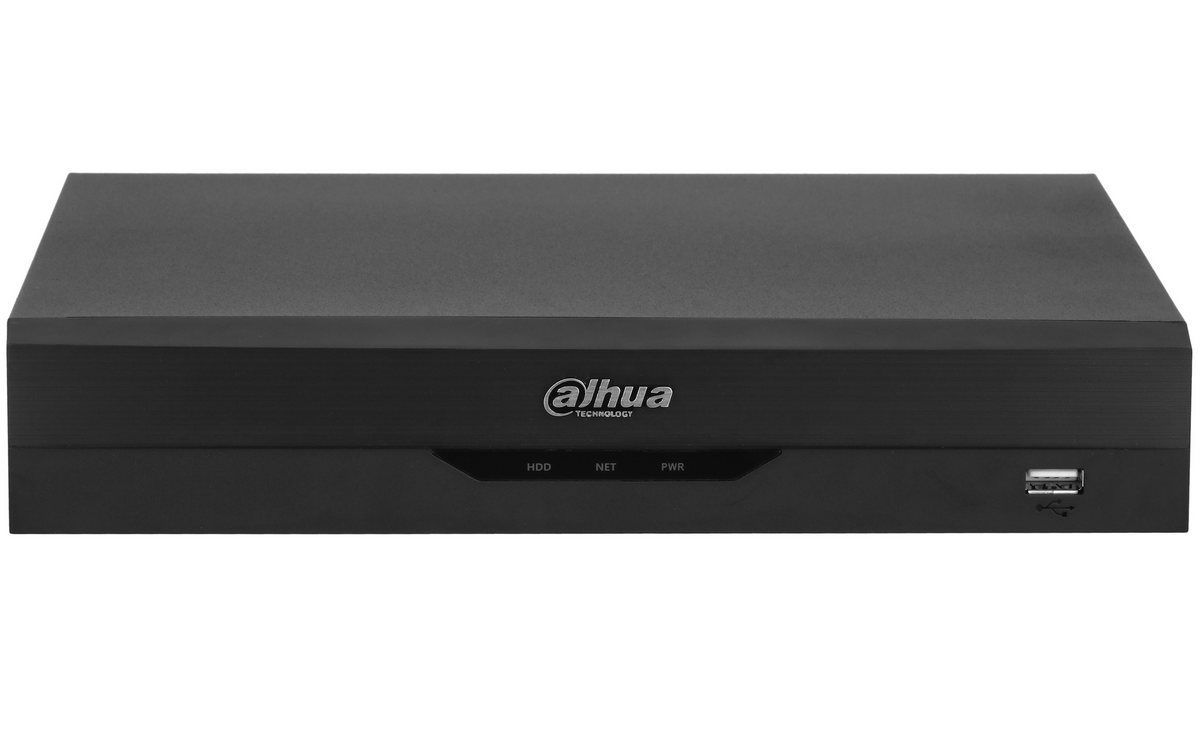

DVR Dahua XVR5104HS-I3, XVR 4 channels Compact 1U, max 6 IP channels up to 6MP, max 32 Mbps, H.265+/H.265, HDCVI/AHD/TVI/CVBS/IP video inputs, dual-stream video, 1xSATA port up to 6TB, Audio In/Out 1/1 RCA, 1xRJ45
Availability:
In stock
Without VAT
€59,09
In stock
Specifications:
| Audio/Video | |
|---|---|
| Supported technologies: | HDCVI/AHD/TVI/CVBS/IP |
| Analog video inputs: | 4x channels |
| IP video inputs: | 4+2 channels, resolution up to 6 Mp/channel |
| Video outputs: | 1x HDMI, 1x VGA |
| Playback resolution: | 1920 × 1080; 1280 × 1024; 1280 × 720 |
| Audio Inputs/Outputs: | 1/1, RCA |
| Bidirectional communication: | Using audio input/output, RCA |
| Supported camera types: | HDCVI cameras: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
AHD cameras: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps TVI cameras: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps |
| Registration | |
| Recording resolution: | 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF |
| Frames/Second: | Main stream: 5M-N (1 fps10 fps); 4M-N/1080p (1 fps15 fps); 1080N/720p/960H/ D1/CIF (1 fps25/30 fps)
Sub stream: D1/CIF (1 fps15fps |
| Registration mode: | Continuous, Manual, Scheduled, Motion detection, Video signal loss, On alarm, Stop |
| Recording interval: | 1-60 min, Pre-record 1-30 sec, Post-record 10-300 sec |
| Video compression: | AI Coding/H.265+/H.265/H.264+/H.264 |
| Bit Rate: | 32Kbps ~ 6144Kbps / channel |
| Audio compression: | G.711A; G.711U; PCM |
| Audio Bit Rate: | 64 kbps/channel |
| Network | |
| Interface: | 1x RJ-45 port (100 MB) |
| Network protocol: | HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTPs; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Dahua IP cameras, DVRs, NVRs, etc.) |
| Concurrent users: | 128 |
| Smart Phone Compatibility: | iPhone, iPad, Android |
| Intercompatibility: | ONVIF 16.12, CGI |
| storage | |
| HDD: | 1x SATA port (capacity up to 6 TB) |
| Perimeter protection/facial detection/SMD Plus | |
| Perimeter protection: | 1 channel, 10 IVS on each channel
Secondary human/vehicle recognition for tripwire and intrusion AI Search: target classification (human / vehicle) |
| Facial recognition: | Processing of max 8 images/second
1 channel facial recognition video stream, supports analog camera only AI Search: up to 8 images simultaneously, the similarity threshold can be set for each image |
| “Foreigner” mode: | Detection of strangers” faces (not from the device”s database), the similarity threshold can be set manually |
| Database management: | Up to 10 databases with 10,000 facial images in total
Name, gender, date of birth, address, certificate type, certificate number, countries and regions can be added to each image Each database can be applied to video channels independently |
| Triggering events: | Buzzer, voice prompts, e-mail, snapshot, recording, alarm output, PTZ activation, etc. |
| SMD Plus: | 4 channels
AI Search: search by target classification (man, vehicle) |
| Auxiliary interfaces | |
| USB: | 2x USB 2.0 port |
| RS485: | 1x Port, PTZ control |
| Special Functions | |
| Functionality: | IoT, POS |
| Video detection: | Motion detection, 396 (22 x 18) detection areas, no signal, manipulation |
| Playback functions: | Play, Pause, Stop, Back, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup mode: | USB, Network |
| Playback: | 1/4 |
| Search mode: | Time/Date, alarm, motion detection (MD) and exact search |
| General characteristics | |
| Operating temperature: | from -10C +45C |
| Power supply: | DC 12V / 1.5 A |
| Consumption: | <4 W (without HDD) |
| Size: | 260mm×238mm×48mm
Compact 1U |
| Weight: | 840 g |
