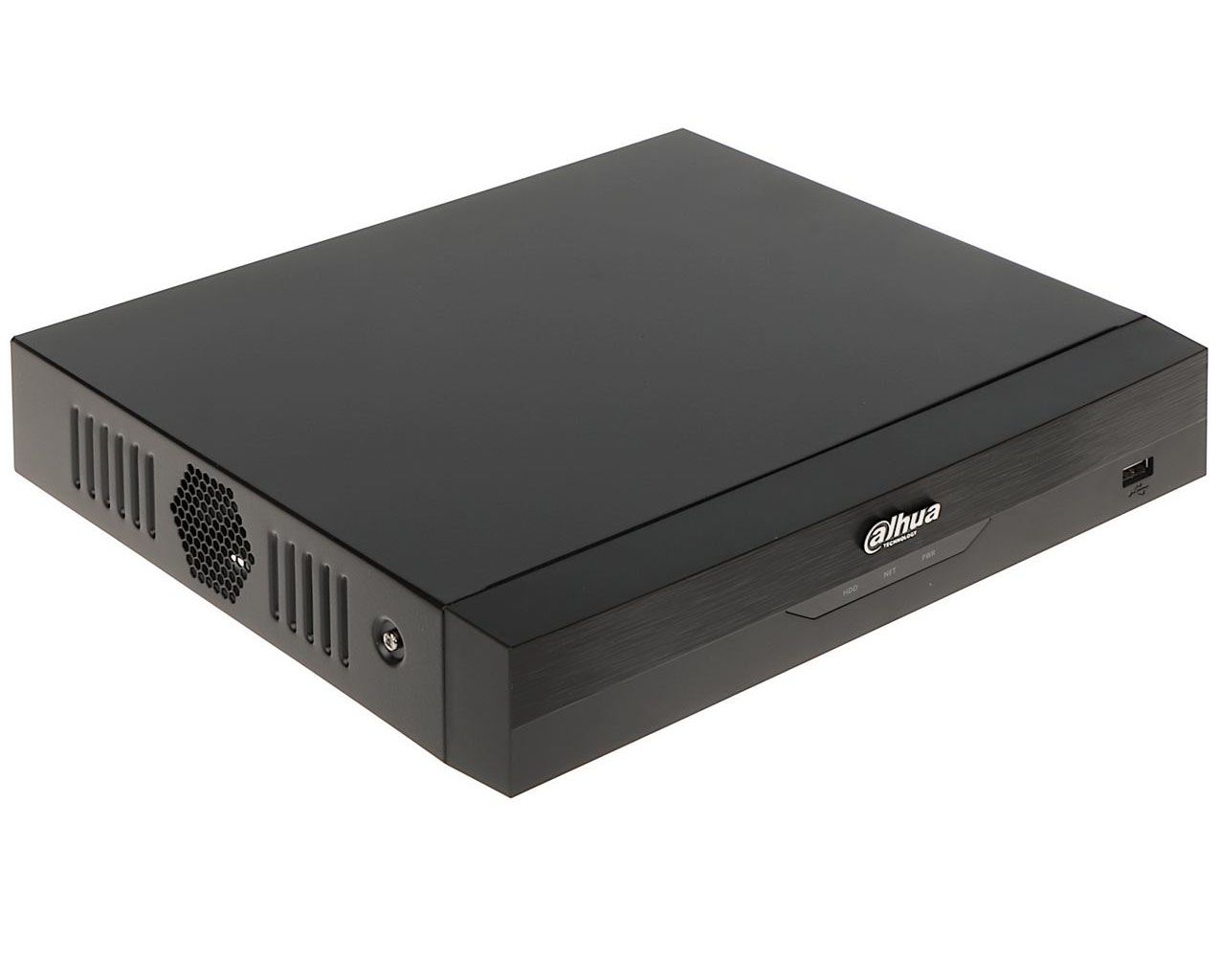

DVR Dahua XVR5104HS-4KL-I3, XVR 4 channels 4K Penta-brid 1080P, H.265+/H.265, HDCVI/AHD/TVI/CVBS/IP, 8 IP channels up to 8MP, 1XSATA max 10TB, Audio In/ Out 1/1 RCA, 1xRJ45, IoT and POS
Availability:
In stock
Without VAT
€88,97
In stock
Specifications
Audio/Video |
|
|---|---|
| Supported technologies: | HDCVI/AHD/TVI/CVBS/IP |
| Analog video inputs: | 4x channels |
| IP video inputs: | 4+4 channels (analog channels are converted to IP)
Bandwidth: 64 Mbps (input/recording/output) *After the IP channels are added over the existing channels, the AI function (IVS, SDM, FACE) will be disabled! |
| Video outputs: | 1x HDMI, 1x VGA |
| Playback resolution: | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720 |
| Audio Inputs/Outputs: | 1x RCA + 4x BNC (audio via coaxial)/1, RCA |
| Bidirectional communication: | Using the same audio input as the first channel |
| Supported camera types: | HDCVI cameras: 4K, 6 MP, 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps
AHD cameras: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fps TVI cameras: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fps |
Registration |
|
| Recording resolution: | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
| Frames/Second: | Main stream: 4K (1 fps7 fps); 6MP (1 fps 10 fps); 5MP (1 fps12 fps); 4K-N, 4MP/3MP (1 fps15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps25/30 fps)
Sub stream: 960H (1 fps15 fps); D1/CIF (1 fps25/30 fps) |
| Registration mode: | General, motion detection, smart, alarm, POS |
| Recording interval: | 1-60 min, Pre-record 1-30 sec, Post-record 10-300 sec |
| Video compression: | AI Coding; H.265+; H.265; H.264+; H.264 |
| Video bit rate: | 32 Kbps ~ 6144 Kbps |
| Audio compression: | G.711a; G.711u; PCM |
| Audio bitrate: | 64 kbps |
| Backup: | USB, network |
Network |
|
| Interface: | 1x RJ-45 port (10/100 Mbps) |
| Network protocol: | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTPs; DHCP; DNS; DDNS; P2P |
| Smart Phone Compatibility: | iOS, Android |
| Intercompatibility: | ONVIF 21.06, CGI |
storage |
|
| HDD: | 1x SATA port, capacity up to 16 TB (HDD not included) |
| eSata: | Lack |
Special functions |
|
| Perimeter protection: | 4 channels |
| Facial detection: | 1 channel, up to 8 images/s
Attributes gender, age group, expressions, mask, beard |
| Facial recognition: | 1 channel, up to 10 databases and 20,000 images |
| SMD Plus: | 4 channels of secondary filtering for humans and motorized vehicles, reducing false alarms caused by leaves, rain and changes in lighting conditions |
| POS & IoT functionalities: | Yes |
Auxiliary interfaces |
|
| USB: | 2x USB 2.0 port |
| RS485: | 1x Port, PTZ control |
Alarm |
|
| General: | Motion detection, video loss, tamper |
| Abnormality: | No HDD, HDD error, low space, offline, IP conflict, MAC conflict |
| Intelligence: | Facial detection, facial recognition, perimeter protection |
| Correlation: | Recording, snapshot (panoramic), external IPC alarm output, access controller, voice prompt, buzzer, log, preset, email |
General characteristics |
|
| Operating temperature: | from -10C +55C |
| Humidity : | 0% 90% |
| Power supply: | DC12V / 2A |
| Consumption: | <7 W (without HDD) |
| Size : | 260mm×238mm×48mm
Mini 1U |
| Weight: | 0.53 kg |
