DVR, DVR and NVR

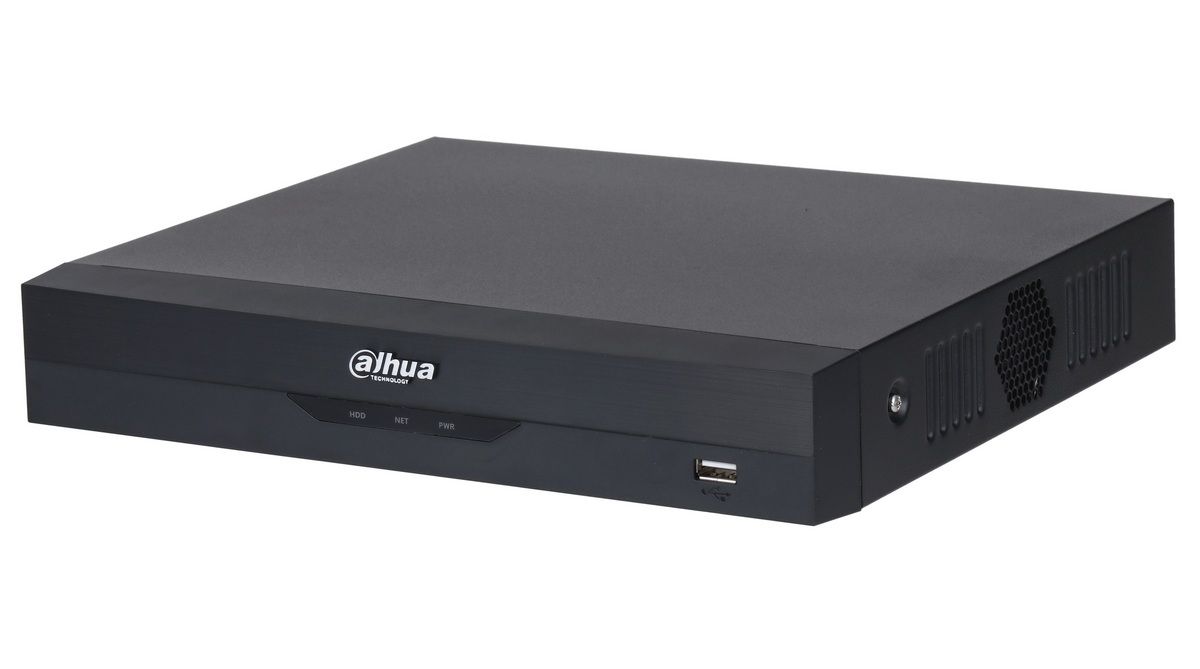

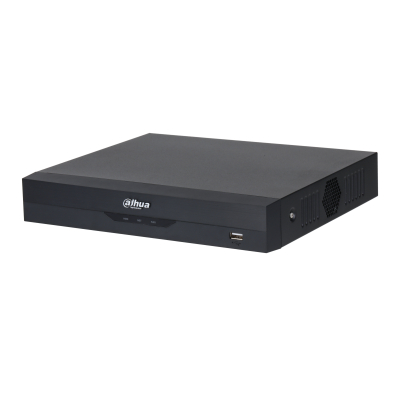

DVR Dahua pentabrid with 8 channels 4k, H.265+, XVR5108HS-4KL-I3 facial recognition, coaxial audio, AI functions
Availability:
In stock
Without VAT
€130,23
In stock
Penta-brid 4K-N/5MP Compact 1U 1HDD WizSense DVRH.265+/H.265 dual-stream video compressionSupports HDCVI/AHD/TVI/CVBS/IP video inputsMax 16 channels IP camera inputs, each channel up to 8MP
Max 128 Mbps incoming bandwidth
| Video | |
|---|---|
| Performance: | 8 channels |
| Intelligent search (AI): | Search by classification (man, vehicle, facial detection) |
| Supported technologies: | HDCVI, AHD, TVI, CVBS, IP |
| Analog video inputs: | 8x channels |
| IP video inputs: | 8+8 channels, each channel can reach up to 8 MP |
| Video outputs: | 1x HDMI, 1x VGA |
| Playback resolution: |
1920×1080, 1280×1024, 1280×720 |
| Dual stream: | 960H × 1 – 15 FPS, D1 / CIF × 1 – 30 FPS |
| Audio Inputs/Outputs: | 1/1, RCA |
| Bidirectional communication: | Using audio input/output, RCA |
| Frames/second: |
CVI: 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps. TVI: 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps. AHD: 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30 fps. |
| Registration | |
| Recording resolution: | 4K, 6MP, 5MP, 4MP, 1080P, 720P, D1, CIF |
| Registration mode: | Continuous, Manual, Scheduled, Motion detection, Video signal loss, On alarm, Stop |
| Recording interval: | 1-60 min, Pre-record 1-30 sec, Post-record 10-300 sec |
| Video compression: | AI Coding/H.265+/H.265/H.264+/H.264 |
| Bit Rate: | 32 Kbps ~ 6144 Kbps / channel |
| Audio compression: | AAC (first channel only), G.711A, G.711U, PCM |
| Input bandwidth: | 128Mbps |
| Network | |
| Interface: | RJ-45 (10 / 100 / 1000 Mbps) |
| Network protocol: | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Concurrent users: | 128 |
| Smart Phone Compatibility: | iPhone, iPad, Android |
| Intercompatibility: | ONVIF 16.12, CGI Compliant |
| Browser: | Chrome, IE9 or newer, Firefox |
| storage | |
| HDD: | 16 TB |
| eSata: | Not |
| Video detection and alarm | |
| Trigger event: |
PTZ recording, Push video, email, FTP, capture, buzzer and screen tips |
| Video detection: |
Motion detection MD, video loss, tampering and diagnosis, alarm stop |
| Auxiliary interfaces | |
| USB: | 1 × USB 2.0, 1 × USB 3.0 |
| RCA: | ×2 |
| BNC: | ×8 |
| RS-485: | ×1 |
| HDMI: | ×1 |
| VGA: | ×1 |
| RJ-45: | × 1 ( 10 / 100 / 1000 Mbps ) |
| SATA: | × 1 |
| Special Functions | |
| Playback functions: | Play, Pause, Stop, Back, Fast Play, Slow Play, Next File, Previous File, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup mode: | USB, Network |
| Playback: | 1/4/09 |
| Search mode: | Time/date, alarm, motion detection (MD) and exact search |
| Weight | 0,000000 kg |
|---|---|
| producatori | |
| Tip produs | |
| Number of channels | 8 |
| aplicatie | |
| rezolutie | 8 MP (4K) |
| PoC | Nu |
| tip-echipament | DVR |
| hard-disk-uri-porturi |
