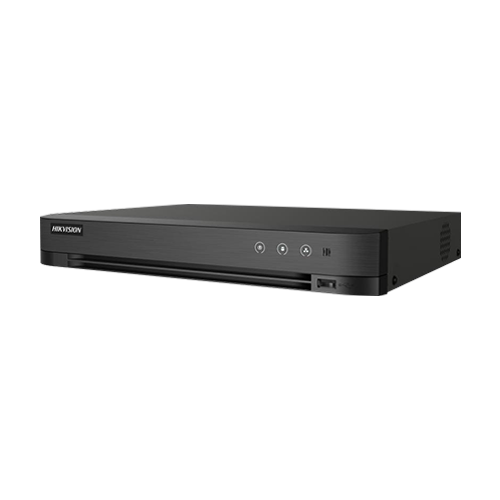

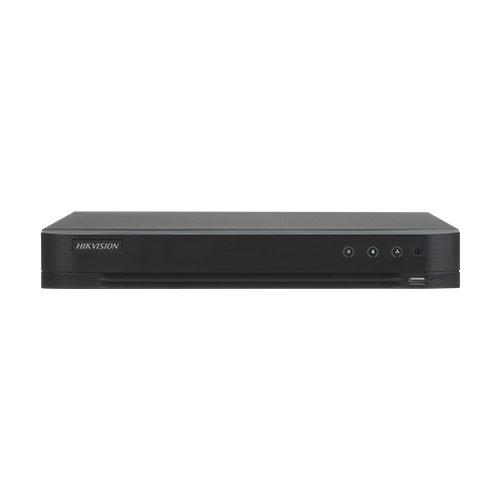

DVR 4 ch analog max. 4K, 4ch IP max. 4K, AUDIO “over coaxial”, Alarm, 1U – HIKVISION iDS-7204HTHI-M1-S(4A+4/1ALM)

The iDS-7204HTHI-M1-S(4A+4/1ALM) DVR has the following features:

• H.265 Pro+ image compression helps reduce data storage costs;
• Compatible signal: HDTVI/AHD/CVI/CVBS/IP;
• Recording with resolution up to 4K;
• IN/OUT alarm;
• Playback Smart Search;
• Motion detection 2.0 helps eliminate false alarms by classifying human/vehicle targets;
• Intelligent functions;
• The possibility of connecting to the wireless network by connecting a Wi-Fi dongle;
• The possibility of limiting the data transmission band;
• Network administration: Hik-Connect and DDNS.

Model / manufacturer: HIKVISION
Recording: 8 MP@15 fps 3K@20 fps 5 MP@20 fps 3 MP@18 fps 4 MP/1080p/720p@30 fps
Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Playback: 4 synchronized channels

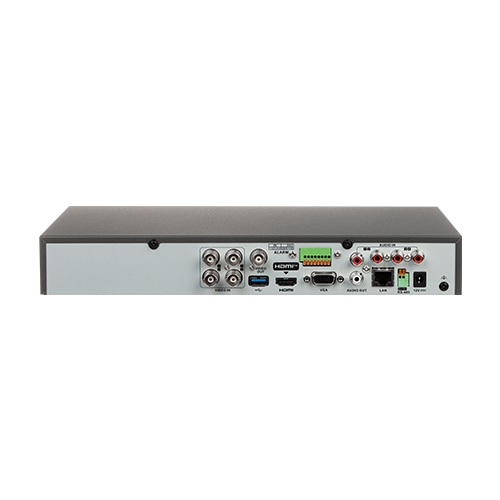

Interfaces: 4 x BNC 1 x HDMI 1 x VGA 1 x RJ45 10/100/1000 Mbps 1 x RS-485 2 x USB 2.0
Storage: 1 x SATA HDD max. 10TB (not included)
Power supply: 12V DC 2A
Consumption: max. 10W (without HDD)
Dimensions: 315 × 242 × 45 mm
Video analysis (VCA): Motion detection 2.0 on all analog channels, elimination of false alarms by classifying people/vehicles, facial detection/search, line crossing detection, perimeter protection, etc.
Audio: 1 x RCA IN 4 x Audio over coaxial 1 x RCA OUT
Weight: 1.8 kg (without HDD)
Operating temperature: -10°C ~ +55°C
Alarm: 4 IN / 1 OUT
“
