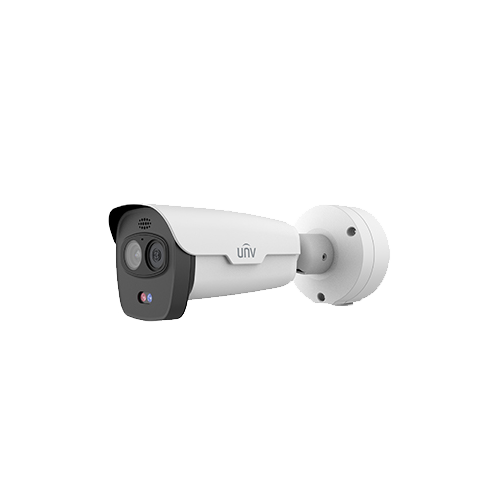

Dual-spectrum Thermal Camera 4MP, Starlight, 4 mm lens, Speaker, Microphone, IR 50m, Alarm and video analysis, PoE – UNV TIC2621SR-F3-4F4AC-VD

Availability:

In stock
Add to wishlist

Without VAT

€470,34

In stock

Bank transfer, Invoice with VAT or no VAT(VIES confirmation), VISA card, Mastercard credit card or cash on delivery. You can pay for your order comfortable cash on delivery in Bulgaria, Hungary, Greece, Poland, Slovakia, Slovenia, Czech Republic and Croatia. Easy Returns 14 days for return items. We ship from Europe. Shipping cost is starting at 10.64 euros without vat depending on the country and weight. Free shipping on orders over €500, oversized deliveries may incur additional shipping charges depending on product weight and dimensions

IP camera, Dual-spectrum, Thermal, 4MP, Bullet type from UNV, which has the following characteristics:

  • Two types of image due to the two objectives: Thermal and Optical that transmit to an IP address;
  • The 1/1.8″ high-sensitivity sensor ensures high-clarity images thanks to Starlight capabilities;
  • Thermal detection of flames (up to 10 regions), lit cigarettes and the surface protected by flames;
  • Hot/cold temperature detection and alarming in case of abnormal temperatures;
  • Temperature range: -20C~+150C;
  • Accuracy of temperature measurement: Max. (±8C/±8%);
  • VCA functions on both spectrums: Line crossing, pre-measurement, Motion detection, Audio detection, detection of motorized, non-motorized vehicles and pedestrians, Background change detection, etc.;
  • Alarm 2IN / 2OUT, audio, alarm lights (blue and red);
  • Supports Picture-in-Picture mode;
  • Ultra 265 compression;
  • Video resolution 4MP(2688 x 1520)@30fps, Thermal 720P@30fps;
  • IR 50m with IR-cut and auto switch;
  • Audio 1IN / 1 OUT, Built-in microphone and speaker;
  • MicroSD card slot, ANR and 1 x RS485;
  • PoE power supply;
  • Protection against changing polarity, overvoltage and short circuit at the input;

Technical specifications:

  • Model / manufacturer UNV (Uniview)
  • Thermal module:
  • Vanadium Oxide sensor type with uncooled focal surface, 256 x 192
  • Thermal video resolution 720P (1280 x 720) @ max 30 fps
  • Lens 3.2mm@F1.1, viewing angle 57
  • Color palette Up to 20 optional color palettes
  • Optical mode:
  • 1/1.8″ 4.0MP progressive Scan CMOS sensor
  • Resolution 4MP(2688×1520)@30fps
  • Lens 4.0mm, viewing angle 89.9
  • Ultra-H.265/H.265/H.264/MJPEG compression
  • Minimum illumination 0.001 Lux (F1.6, AGC ON), B/W: 0.0005 Lux (F1.6, AGC ON), o Lux with IR
  • IR distance 50m, Auto-switch, IR cut filter
  • WDR 120dB
  • Local recording Micro SD, max. 256 GB (not included), ANR function
  • Audio 1 IN / 1 OUT, built-in microphone and speaker
  • Alarm 2 IN / 2 OUT
  • Network interface RJ45 10/100Mbps, RS485
  • Power supply 12 V DC ± 25%, PoE(802.3af)
  • max consumption 12W
  • Operating temperature -30C ~ +60C, IP67
  • Dimensions 354mm × 104mm × 116mm
  • Weight 1850 gr.
  • Ambient temperature -40C ~ +70C
  • Thermal detection operating temperature -10C ~ +50C
SKU: TIC2621SR-F3-4F4AC-VD Categories: ,
