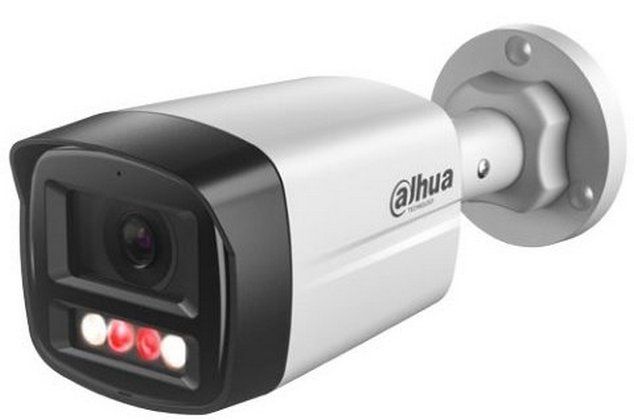

Dual Light IP surveillance camera 4MP IR 30m WL 30m microphone PoE Dahua – IPC-HFW1439TL1-A-IL-0280B
Specifications
sensors | 1/2.9″ Progressive Scan CMOS |
Resolution | 4 MP (2560 × 1440 pixels) |
Fixed lens | 2.8 mm |
Distance IR illuminator/warm light | 30 meters |
Special functions | WDR (120Db), BLC, HLC, 3D NR, ROI (4 zones), motion detection (4 zones), privacy masking (4 zones) |
ROM memory | 128MB |
RAM memory | 128MB |
Frames per second | 25/30 |
Minimum lighting Color | 0.006 lux@F1.6 (Color, 30 IRE) 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
Electronic shutter speed | Auto/Manual 1/3 s1/100,000 s |
Angle adjustment | Pan: 0 – 360, Tilt: 0 – 90, Rotate: 0 – 360 |
Viewing angle | 94 (horizontal) / 52 (vertical) / 111 (diagonal) |
DORI distance | D: 64.0 m, O: 25.6 m, R: 12.8, I: 6.4 m |
Video Bit Rate | H.264: 32 kbps4096 kbps / H.265: 12 kbps4096 kbps |
Diaphragm | F1.6 |
Lens mount | M12 |
Browser | IE, Chrome |
Administration application | iOS, Android |
Software | Smart PSS Lite, DSS, DMSS |
use | 6 |
Simultaneous live viewing | up to 6 channels |
Protocol | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P |
Network storage | FTP |
I carry the network | 1x RJ-45 (10/100 Base-T) |
Video compression | H.265, H.264, H.264H, H.264B, MJPEG |
Audio compression | G.711a, G.711Mu, PCM, G.726 |
Built-in microphone | Yes |
Human detection | Support for accurate classification and detection of people |
feeding | 12 VDC / PoE (802.3af) |
Consumption | 2 W (12 VDC) / 2.9 W (PoE) Maximum (H.265 + intelligence on + WDR + illuminator intensity): 6.4 W (12 VDC) 7.7 W (PoE) |
Material | metal and plastic |
Degree of protection | IP67 |
Operating temperature | -40C to +60C |
Size | 197.9mm × 80.2mm × 76.2mm |
Weight | 0.31 kg |
DESCRIPTION
The Dahua IP surveillance camera IPC-HFW1439TL1-A-IL-0280B is an advanced video monitoring solution, equipped with a 1/2.9″ Progressive Scan CMOS sensor and offers a high definition resolution of 4 MP (2560 × 1440 pixels) With a fixed 2.8mm lens, this camera captures wide images with an impressive viewing angle of 94 horizontal, 52 vertical and 111 diagonal.
The camera is equipped with IR and warm light illuminators, both of which have a range of up to 30 meters, ensuring sharp images even in low light conditions, with a minimum required illumination of just 0.006 lux in color and 0.0006 lux in black and white, at 30 IRE, and the possibility of operation in the total absence of light when the illuminator is activated.
The camera integrates special functions such as WDR (with a wide dynamic range of 120 dB), BLC, HLC, 3D NR, ROI (up to 4 zones), motion detection (up to 4 zones), and privacy masking (up to 4 zones) , all of which contribute to improving the quality and relevance of captured images. The camera also has 128 MB ROM and 128 MB RAM, supports frame rates of 25/30 fps and has an electronic shutter speed adjustable manually or automatically between 1/3 s and 1/100, 000 s.
The angle adjustment capabilities are versatile, allowing 0 to 360 pan, 0 to 90 tilt, and 0 to 360 rotation, which provides flexibility in camera orientation. In addition, it supports H.265 and H.264 video compression, ensuring efficiency in bandwidth usage and data storage, with a variable video bit rate between 32 kbps and 4096 kbps.
The camera is accessible via IE and Chrome browsers and can be managed via dedicated iOS and Android apps, as well as Smart PSS Lite, DSS and DMSS software. It supports up to 6 users simultaneously and allows simultaneous live viewing of up to 6 channels. In terms of connectivity, the camera features an RJ-45 network port for 10/100 Base-T, supports a wide range of network protocols and offers options for network storage via FTP.
With a built-in microphone, the camera supports accurate person detection, improving security by accurately classifying and detecting subjects.
It is powered by 12 VDC or PoE (802.3af), with efficient energy consumption. Constructed of durable materials, the combination of metal and plastic, and having the degree of protection IP67, the camera is designed to work in difficult outdoor conditions, with operating temperatures between -40C and +60C.
The camera dimensions are 197.9 mm × 80.2 mm × 76.2 mm, weighing 0.31 kg, making it a robust and reliable option for a variety of surveillance applications.
