Dahua surveillance kit 8 cameras 5MP lens 3.6mm IR 40 m microphone, DVR 8 channels 8MP 4K AI functions and accessories

This surveillance kit is composed of 8 Dahua HAC-HFW1500TLM-IL-A-0360B-S2 cameras, with a resolution of 5 MP and advanced functions such as intelligent lighting, ensures clear and detailed images, both day and night, a DVR Dahua XVR5108HS-4KL-I3 that allows efficient management of recordings, supporting multiple channels and offering excellent playback quality, including 4K, and accessories. This kit is a reliable choice for monitoring and protecting your premises.

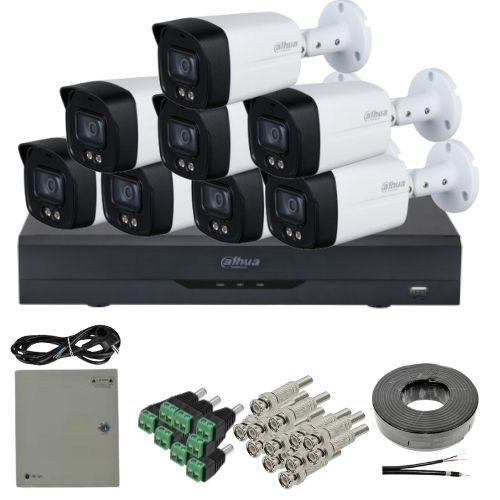

This kit consists of:

• 8 x 5MP Cameras Dahua HAC-HFW1500TLM-IL-A-0360B-S2
• 1 x Dahua XVR5108HS-4KL-I3 8-channel DVR
• 1 x RG 59 coaxial cable with power supply 2×0.75, COPPER 100%, roll 100 m
• 16 x BNC plug connectors with screw for coaxial cable

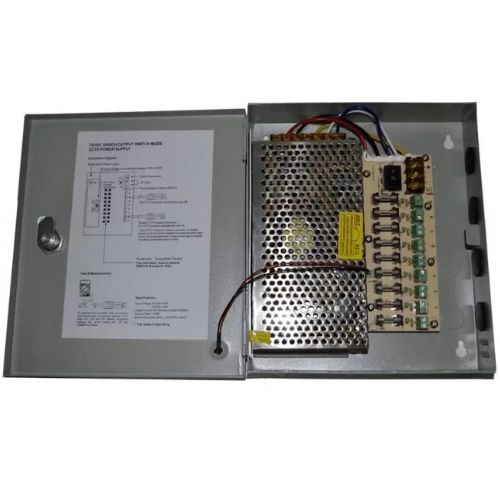

• 1 x Power supply 12V 10A
• 1 x Mains power cable with SHUCKO plug and 3 wires
• 8 x TATA power plugs with screw

Surveillance camera 5MP Dahua HAC-HFW1500TLM-IL-A-0360B-S2

This surveillance camera offers a resolution of up to 5 MP with 25 fps (16:9 format), ensuring fluid and detailed images. Equipped with Smart Dual Light technology, the camera can efficiently illuminate up to 40 meters at night. The Super Adapt function optimizes performance in various lighting conditions. The camera includes a microphone and has a 3.6mm fixed lens. It supports multiple video technologies (CVI/CVBS/AHD/TVI) and is IP67 certified, being water and dust resistant, with 12 VDC power supply.

Technical specifications of the 5MP Dahua HAC-HFW1500TLM-IL-A-0360B-S2 surveillance camera:

• Manufacturer: Dahua

• Sensor: 5 MP CMOS

• Resolution: 5MP (2880 × 1620)

• Lens: 3.6mm viewing angle 92

• Minimum illumination: 0.05 lux at F1.6 (Color, 30 IRE); 0.005 lux at F1.6 (white/black, 30 IRE); 0 lux (illuminator on)

• IR/white light distance: 40m

• Special functions: Smart Dual Light

• Plug: BNC

• Technologies: CVI/CVBS/AHD/TVI

• Audio: Built-in microphone

• Power supply: 12 VDC ± 30%

• Consumption: Max 4.5 W

• Operating temperature: From -40C to +60C

• Degree of protection: IP67

• Case type: Bullet, metal+plastic

• Dimensions: 198.4 mm × 80.2 mm × 76.2 mm

• Weight: 0.3 kg

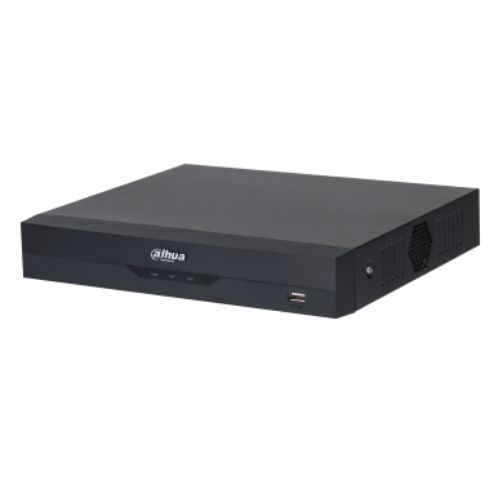

DVR 8 channels Dahua XVR5108HS-4KL-I3

The Dahua XVR5108HS-4KL-I3 DVR offers H.265+/H.265 dual-stream video compression, AI encoding on all channels, support for HDCVI/AHD/TVI/CVBS/IP video inputs, and the maximum recording resolution is 8MP 4K. The cameras can be accessed live from anywhere, by connecting the smartphone (Android, iOS) to the XVR using the DMSS application.

Dahua XVR5108HS-4KL-I3 8-channel DVR technical specifications:

• Analog video inputs: 8 channels
• IP video inputs: Up to 16 channels (8 default IP channels + 8 analog channels converted to IP channels)
• Supported technologies: HDCVI/AHD/CVI/CVBS/IP
• Video outputs: HDMI, VGA
• Playback resolution: 1920 × 1080, 1280 × 1024, 1280 × 720
• Recording resolution: 4K, 6MP, 5MP, 4MP, 1080P, 720P, D1, CIF
• Audio: Yes
• Video compression: AI Coding/H.265+/H.265/H.264+/H.264
• Storage: 1 x HDD up to 16TB (not included)
• Alarm: Yes
• Intercompatibility: ONVIF

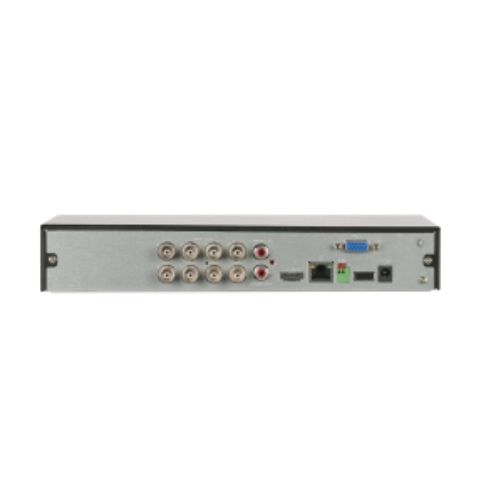

• Interfaces: 1 x HDMI, 1 x VGA, 1 x audio output (RCA), 1 x audio input (RCA), 1 x RS-485, 2 x USB, 1 x 10/100/1000 Mbps Ethernet port, RJ-45
• Special functions: WizSense, SMD
• Power supply: 12 VDC, 1.5 A
• Consumption: ≤ 10 W (without HDD)
• Operating temperature: From -10 C to +55 C
• Dimensions: 260.0 mm × 237.9 mm × 47.6 mm
• Weight: 0.9 kg
