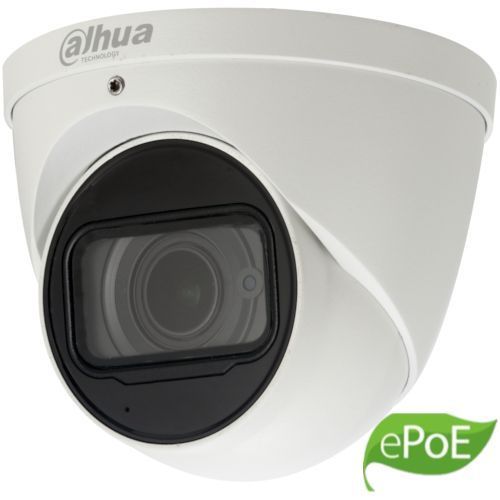

Dahua surveillance camera dome, 2MP 2.7-13.5mm 2 LED, IR 50m, IP67, ePoE

Dahua surveillance camera dome, 2MP CMOS Starlight 1 / 2.8 ”, 2.7-13.5mm 2 LED, IR 50m, WDR 120dB, H.265 +, microphone, IP67, ePoE

Details room:

CPI-HDW5231RP-ZE-27135 is a modern room series AI WizMind designed for IP surveillance using the most advanced technology of artificial intelligence, including algorithm deep learning. The device is equipped with a Progressive Scan CMOS image sensor 1 / 2.8 “2MP , which lets you capture videos at a resolution of 2Mpx . Sensitivity Starlight technology and many correction functions, including WDR 120dB, 3DNR, ensure excellent image quality.
H.265 + means that the signal from the room takes up less space on the recording medium (eg. HDD or microSD Card), which translates into an effective protection and time greater data storage. An object motozoom , using an electric motor, allows external regulation at the level of the focal length distance, and also automatically adjusts the sharpness.
infrared illuminator with a reach of 50 m guarantee 24-hour monitoring feature and readability of records obtained. In addition technology AI with the perimeter protection , face detection and counting people increases security and ensures detection of all unwanted behaviors. The advantage of the device is a built-in slot microSD card (256 GB) and a microphone. Room IPC-HDW5231RP-ZE-27135 characterized by a high degree of resistance to adverse weather conditions ( IP67 ) .
The device accepts ePoE technology , due offering an efficient connection to 800 m full duplex.

Specifications

Use: Interior / Exterior

Format: Dome

Case Material: Metal

protection, water / dust IP67

Storage card: MicroSD

The maximum card capacity: 128 GB

Power: DC 12V / PoE power supply is not included

Consumption: 8.5 W

Operating Temperature: -30 ~ 60 ℃

Dimensions: 122 x 122 x 104 mm

Weight: 600 g

Camera IP

PoE: Yes, ePoE

lens

lens type: a varifocal

varifocal lens: 2.7 – 13.5 mm

Zoom: Yes

Motorized Zoom Yes

sensor

Resolution: 2 MP

Effective Resolution: 1920 x 1080 pixels

Sensor Type: CMOS

Sensor Size: 1 / 2.8 ”

Starlight: Yes

IR LED Array

IR No. 2

IR distance: 50 m

Video

Video Compression: H.265 + / H.265 / H.264 + / H.264

Night Movie: Auto (ICR) / Color / B / W

Minimum illumination:

0.006Lux / F1.4 (Color 1 / 3s, 30IRE)
0.05Lux / F1.4 (Color, 1 / 30s, 30IRE)
0Lux / F1.4 (IR on)

& nbsp;
WDR: WDR 120dB

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual

Noise reduction: 3D DNR

Motion detection: Off / On (4 Zone, Rectangle)

Shutter speed: Auto / Manual
1/3 ~ 1 / 100.000s

S / N Ratio: & gt; 50dB

The main flow: 1080P (1-50 / fps)
& nbsp;

Resolutions supported:

1080P (1920×1080)
1.3M (1280×960)
720P (1280×720)
D1 (704×576 / 704×480)
VGA (640×480)
CIF (352×288 / 352×240)

Audio

Audio: Yes

Integrated Microphone: Yes

Audio Compression: G.711 / G.711Mu / AAC / G.726

Network

Storage network:

NAS (Network Attached Storage)
Local PC for instant recordings

Protocols:

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; fTP; DHCP; DNS; DDNS; PPPoE; IPv4 / v6; QoS; UPnP; NTP; Bonjour; 802.1x; multicast; ICMP; IGMP; SNMP

ONVIF Yes
