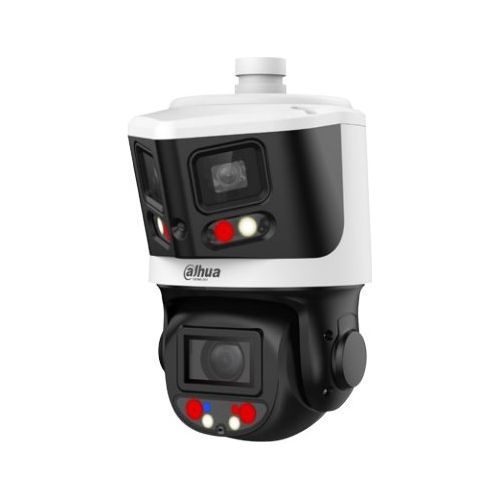

Dahua Speed dome IP panoramic 8MP+4MP rotating camera, 2.8mm and 5-25mm lens, 70m IR, 10x, STARVIS, microphone, speaker, Smart Tracking, PoE+ – SDT3E410-8P-MB-A-PV1-0280B

The Dahua SDT3E410-8P-MB-A-PV1 is a panoramic surveillance camera combined with PTZ, from the MultiVision series, which integrates two independent channels into a single device: an 8MP panoramic channel with a 180 angle and a 4MP PTZ channel with 10x optical zoom. This combination allows for simultaneous monitoring of a wide area and detailed tracking of a specific target, without the need for two separate cameras.

The resolution and video quality are remarkable, with the panoramic channel offering up to 5376×1520 pixels and the PTZ channel up to 2560×1440 pixels, both at 25/30 fps. Starlight technology ensures high-quality color images even in extremely low light conditions, down to 0.005 lux.

The camera features dual night vision, with IR up to 70 m on the PTZ channel and white light up to 30 m on both channels, which allows for detailed color images at night. The Smart Dual Light system automatically optimizes the use of the two types of illumination depending on the scene.

AI functions are advanced: automatic detection and tracking of people (Auto Tracking Lite), face detection with attribute and expression extraction, perimeter protection with tripwire and intrusion, SMD 4.0 for filtering false alarms, and AcuPick for fast searching of targets in recordings. The active deterrence system includes red and blue lights plus 11 predefined and 10 customizable sound alarms.

The PTZ movement covers 345 pan and 90 tilt, with 300 preset positions, 8 patrol tours, and memory on reboot. The IP66 protection rating and TVS 6000V lightning protection make it suitable for outdoor installations in difficult conditions.

Technical specifications Dahua Speed dome IP panoramic 8MP+4MP camera, 2.8mm and 5-25mm lens, IR 70m, 10x, STARVIS, microphone, speaker, Smart Tracking, PoE+ – SDT3E410-8P-MB-A-PV1-0280B:

• Panoramic channel image sensor: 1/2.8″ CMOS
• PTZ channel image sensor: 1/2.8″ CMOS
• Panoramic channel pixels: 8 MP
• PTZ channel pixels: 4 MP
• Maximum resolution panoramic channel: 5376 (H) x 1520 (V)
• Maximum resolution PTZ channel: 2560 (H) x 1440 (V)
• Panoramic channel ROM: 4 GB
• PTZ channel ROM: 4 GB
• Panoramic channel RAM: 2 GB
• PTZ channel RAM: 1 GB
• Panoramic channel electronic shutter speed: 1 s – 1/100, 000 s
• PTZ channel electronic shutter speed: 1 s – 1/30, 000 s
• Scanning system: Progressive
• Minimum illumination panoramic channel: 0.005 lux@F1.6 (Color) / 0.0005 lux@F1.6 (B/W) / 0 lux (Active illuminator)
• Minimum illumination PTZ channel: 0.005 lux@F1.6 (Color) / 0.0005 lux@F1.6 (B/W) / 0 lux (Active illuminator)
• Panoramic channel illumination distance: 30 m IR / 30 m white light
• PTZ channel illumination distance: 70 m IR / 30 m white light
• Panoramic channel illuminator control: Manual / Auto / Off
• PTZ channel illuminator control: Zoom priority / Manual / Auto / Off
• Number of panoramic channel illuminators: 2 IR / 2 white light
• Number of PTZ channel illuminators: 2 dual light fusion / 2 IR
• Panoramic channel focal length: 2.8 mm
• PTZ channel focal length: 4 mm – 40 mm
• Maximum aperture panoramic channel: F1.6
• Maximum aperture PTZ channel: F1.6 – F3.6
• Panoramic channel field of view: H 180 / V 47
• PTZ channel field of view: H 58-11.3 / V 33.1-6.4 / D 66.4-12.8
• Panoramic channel optical zoom: No
• PTZ channel optical zoom: 10x
• PTZ channel digital zoom: 16x
• Focus control: Auto / Manual / Semi-auto
• Panoramic channel minimum focus distance: 0.6 m
• PTZ channel minimum focus distance: 0.1 m – 0.5 m
• DORI Detection: 500 m
• DORI Observation: 197.5 m
• DORI Recognition: 100 m
• DORI Identification: 50 m
• Pan movement: 0-345
• Tilt movement: -10- +90
• PTZ channel manual speed H: 0.1/s – 80/s
• PTZ channel manual speed V: 0.1/s – 50/s
• Preset speed H: 80/s
• Preset speed V: 50/s
• Number of presets: 300
• Patrol tours: 8 (up to 32 presets per tour)
• Power-off memory: Yes
• Idle motion: Preset / Tour
• IVS perimeter protection: Tripwire / Intrusion / Fence crossing detection / Loitering detection / Abandoned/missing object / Fast moving /
• Parking detection / Crowd gathering / Human/vehicle alarm classification / Linkage tracking
• Face detection: Yes (PTZ channel) – detection, optimization, capture, instant upload, 6 attributes and 8 expressions extraction, face cropping
• Auto tracking: Auto Tracking Lite
• SMD: Yes (SMD 4.0)
• AcuPick: Yes (panoramic channel) – matching people and vehicle targets in live and archived recordings
• Light warning: Red and blue lights / Duration 5-30 s / High, medium, low frequency
• Sound warning: 11 predefined sound alarms / 10 customizable sound alarms / Volume 0%-100% / Repetition number 1-10
• Video compression: H.265 / Smart H.265+ / H.264 / Smart H.264+ / H.264H / H.264B / H.264M / MJPEG
• Number of streams: 3
• Panoramic channel available resolutions: 5376×1520 / 2688×752 / 1080p / 720p / 1344×368 / D1 / CIF
• PTZ channel available resolutions: 2560×1440 / 3M / 1080p / 1.3M / 720p / D1 / CIF
• Maximum panoramic channel frame rate: 5376×1520@25/30 fps
• Maximum PTZ channel frame rate: 4M/3M/1080p/1.3M/720p@25/30 fps
• Bit rate control: CBR / VBR
• Panoramic channel H264 bit rate: 128 kbps – 16384 kbps
• Panoramic channel H265 bit rate: 51 kbps – 13312 kbps
• PTZ channel H264 bit rate: 96 kbps – 16384 kbps
• PTZ channel H265 bit rate: 38 kbps – 10240 kbps
• Panoramic channel Day/Night: Auto / Color / B/W
• PTZ channel Day/Night: Auto / Color / B/W / Electronic
• BLC: Yes
• Panoramic channel WDR: DWDR
• PTZ channel WDR: 120 dB
• HLC: Yes
• White balance: Auto / Indoor / Outdoor / Tracking / Manual / Sodium lamp / Natural light / Street lamp
• Gain control: Auto / Manual / Gain priority
• Noise reduction: 2D NR / 3D NR
• Motion detection: Yes
• Region of Interest (RoI): Yes
• PTZ channel image stabilization: EIS (Electronic Image Stabilization)
• Defog: Electronic (both channels)
• PTZ channel image rotation: 180
• Signal-to-noise ratio: >=55 dB (both channels)
• Privacy masking: Up to 24 zones (max 8 in the same frame) / Multiple colors and mosaic
• Panoramic channel audio compression: PCM / G.711A / G.711Mu / G.726 / MPEG2-Layer2 / G.722.1 / G.729
• Network port: RJ-45 (100 Base-T)
• Network protocols: IPv4 / IPv6 / HTTP / HTTPS / TCP/IP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / SNMP / SSL / Bonjour / 802.1x / P2P
• Interoperability: ONVIF Profile S / Profile G / Profile T / CGI / SDK / P2P
• Streaming method: Unicast / Multicast
• Maximum users: 20 (Total bandwidth 64M)
• Storage: Micro SD card max 512 GB / FTP / SFTP / NAS
• Management software: DMSS / DSS Pro
• Mobile client: iOS / Android
• Certifications: CE EN55032 / EN55035 / IEC61000-3-2 / IEC61000-3-3 / EN62368-1 / IEC62471
• Audio input: 1 channel (LINE IN / integrated microphone, mutually exclusive)
• Audio output: 1 channel (LINE OUT / integrated speaker, mutually exclusive)
• Alarm input: 1 channel (input value 0-5 VDC)
• Alarm output: 1 channel
• Alarm linkage: Capture / Recording / Email sending / Preset / Digital output / Audio / Warning light
• Alarm events: Motion/tamper detection / Network disconnection / IP conflict / Memory card status / Memory space
• Power supply: 12 VDC 3A +-10% / PoE+ (802.3at)
• Basic power consumption: 12 W
• Maximum power consumption: 25 W (illuminator + heated glass + active deterrence + PTZ)
• Operating temperature: -30C to +60C
• Operating humidity: <=95%
• Protection rating: IP66 / TVS 6000V lightning protection / Surge protection / Voltage transient protection
• Dimensions: 140.3 mm x 181.7 mm x 238.8 mm
• Net weight: 2.17 kg
• Gross weight: 3.1 kg
