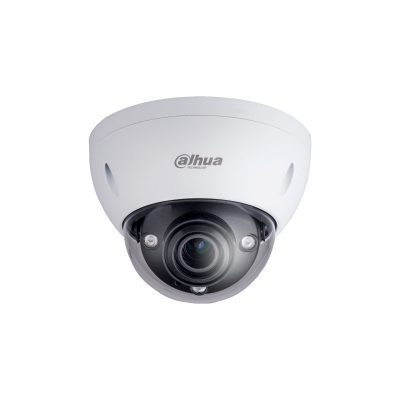

This surveillance camera features a 3-megapixel 1/2.8” STARVIS progressive CMOS sensor, delivering detailed 3 MP images (2048 × 1536) at up to 50/60 frames per second. It uses H.265 and H.264 video compression with triple-stream support for efficient storage and smooth transmission. The camera includes advanced imaging functions such as 140 dB WDR, Day/Night (ICR), 3D DNR, AWB, AGC, and BLC, ensuring optimal clarity even in challenging lighting conditions. The motorized 2.713.5 mm lens allows adjustable viewing angles, while IR illumination provides up to 50 m coverage for night surveillance. It supports monitoring via Web Viewer, CMS, and the DMSS mobile app, includes a MicroSD card slot, and features IP67 and IK10 protection, making it resistant to water, dust, and vandalism. Power is supplied via PoE+ for simplified installation.
Technical specifications Dahua IP Camera, 3 MP, Motorized Lens 2.713.5 mm, IR 50 m, IP67, IK10, PoE+, IPC-HDBW8331E-Z:
- Image Sensor: 1/2.8” STARVIS CMOS, 3 MP
- Maximum Resolution: 3 MP (2048 × 1536) at 50/60 fps
- Video Compression: SMART H.264+/H.265+ with triple stream
- Lens: Motorized varifocal 2.713.5 mm
- IR Illumination: Up to 50 m
- Imaging Features: 140 dB WDR, 3D DNR, HLC, BLC, Day/Night (ICR), AWB, AGC
- IR Filter: Mechanical (ICR)
- Storage: MicroSD card slot up to 128 GB
- Network Monitoring: Web Viewer, CMS (DSS/PSS), DMSS
- Intelligent Video Analytics (IVS): Tripwire, intrusion, abandoned/missing object detection, facial recognition, people counting, heat map
- Weather/Dust Protection: IP67
- Vandal Resistance: IK10
- Power Supply: PoE+ and 12 V DC
- Housing: Metal
- Camera Type: Outdoor Dome
