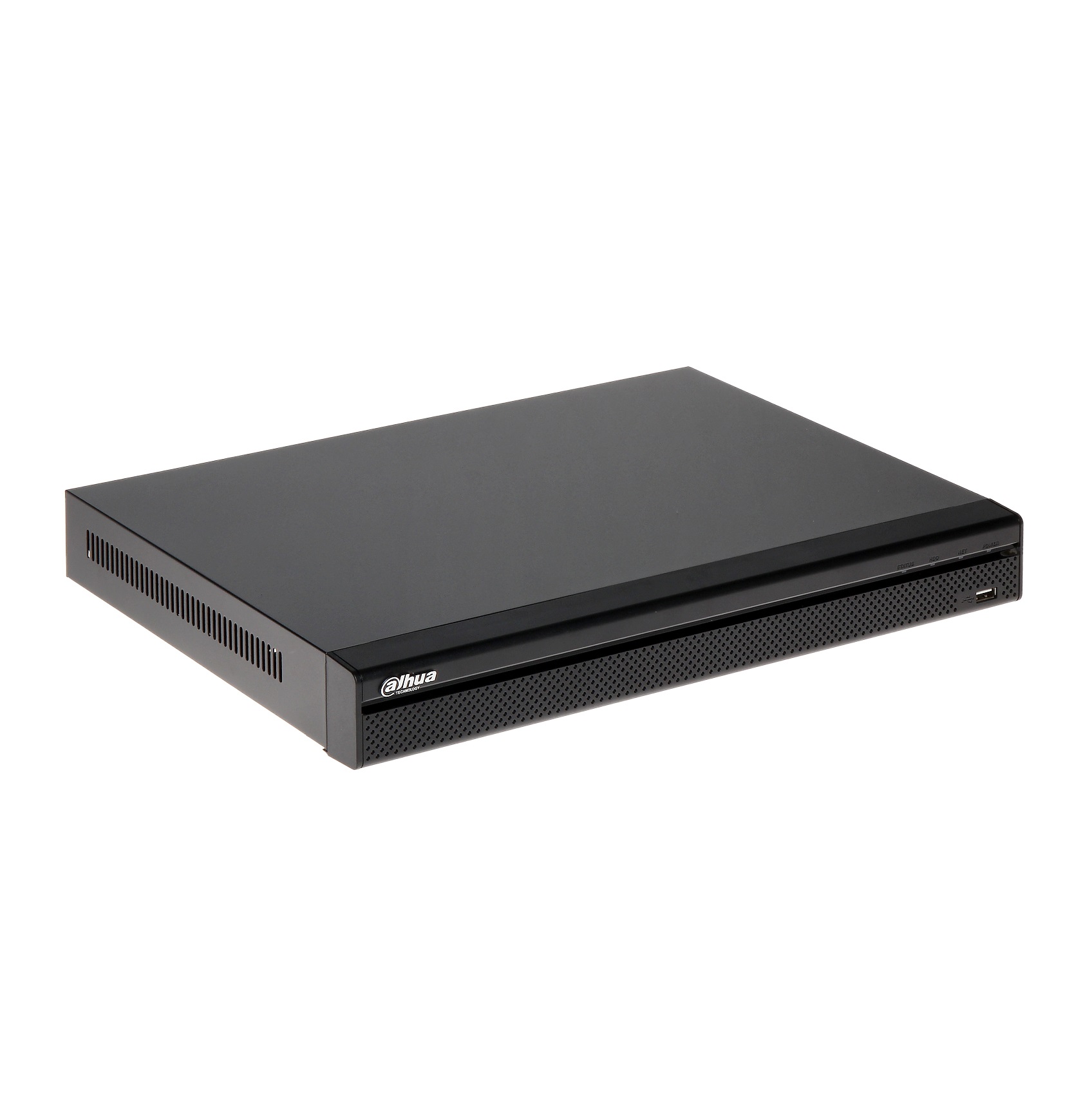

Dahua DVR XVR5216AN-X. 16 + 8 IP channels. 5M-N / 1080P / 720P. H.265 +. Pentabrid HDCVI / AHD / TVI / CVBS / IP

DVR Dahua XVR5216AN-X. 16 + 8 IP channels. 5M-N / 1080P / 720P. H.265 +. Pentabrid HDCVI / AHD / TVI / CVBS / IP, audio 1/1. 2x SATA
dual-stream video compression H.265 + / H.265
& Gt; Supports video inputs HDCVI / AHD / TVI / CVBS / IP
& Gt; Maximum input 24 IP channels, each channel up to 6MP; Maximum bandwidth of 96 Mbps
& Gt; Intelligent search and intelligent video system

Specifications:

system

Main Processor
embedded processor

OS
Embedded Linux

Video and Audio

Input Analog Camera
16 channel BNC

Camera HDCVI
5MP, 4MP, 1080p @ 25 / 30fps, 720P @ 50 / 60fps, 720P @ 25 / 30fps

Camera AHD
5MP, 4MP, 25/30 @ 1080P, 720P @ 25 / 30fps

Camera TVI
5MP, 4MP, 25/30 @ 1080P, 720P @ 25 / 30fps

Camera CVBS
PAL / NTSC

IP camera input
16 + 8 channels, each channel up to 6MP

Audio input / output
1/1, RCA

Communication bidirectional
Reuse audio input / output, RCA

Register

Compress
+ H.265 / H.265 / H.264 + / H.264

Resolution
5M-N, N-4M, 1080P, 1080N, 720P, 960H, D1, CIF

Recording rate
main flow: 5M-N (1-10fps), 4 M N / 1080P (1 ~ 15 fps); 1080N / 720P / 960H / D1 / CIF (1-25 / 30fps)
secondary stream D1 / CIF (1 ~ 15 fps)

Bitrate
32kbps ~ 6144Kbps channel

Recording Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion detection, video loss, tampering), Alarm, Stop

Register range
1 ~ 60 min (default: 60 min), pre-registration: 1 ~ 30 sec, Postinregistrare 10 ~ 300 sec

Audio Compression
G.711 G.711U PCM

Audio Sample Rate
8KHz, 16 bits per channel

Audio Bitrate
64 Kbps channel

Show

Interface
1 HDMI, 1 VGA

Resolution
HDMI: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024
1280 x 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

OSD
camera title, time, video loss, camera lock, motion detection, recording

Network

Interface
1 RJ-45 (1000M)

Function Network
HTTP, HTTPS, TCP / IP, IPv4 / IPv6, Wi-Fi, 3G / 4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filter IP, PPPoE, DDNS, FTP Server alarm P2P Search IP (Dahua Supports IP camera, DVR, NVS etc.)

Max. User Access
128 users

Smartphone
iPhone, iPad, Android

Interoperability
16.12 ONVIF according to CGI

Detection and alarm video

Events trigger
Records, PTZ, Tour, Video Push E-mail, FTP, Snapshot, buzzer and screen tips

Video Detection
motion detection areas MD 396 (22 × 18), loss of video manipulation and diagnosis

Alarm input
N / A

Output relay
N / A

Playback and Backup

Play
1/4/9/16

Search Mode
Time / Date, Alarm, MD and exact Search

playback function
Play, pause, stop, rewind, fast play, slow motion, next file, previous file, camera next camera earlier, full screen, repeat, shuffle, select Backup, digital zoom

Mode backup
Device USB / network

Storage

internal HDD
2-port SATA capacities up to 10 TB HDD not included

eSATA
N / A

Interface auxiliary

USB
1 USB 2.0, 1 USB 3.0

RS232
N / A

485
1 port for controlling PTZ

Electric

Power supply
DC12V / 4A

Consumption
(without HDD)
& lt; 15W

Building

size device
1U, 375mm × 53mm × 287mm (14.8 “x 11.3” x 2.1 “)

device PFH101
in the rack mounting tray
483mmx281mmx56mm (19.0 “x11,1” x2,2 “)

Net weight
(without HDD)
1.6 kg (3.5 lb)

Install
Install desktop

Operating conditions
-10 ° C ~ + 55 ° C

& nbsp;
Data storage on a hard drive is that you can choose from HERE.
