Dahua DVR WizSense XVR5104HS AI-I2, 4 channels, 5 megapixel, H.265 +, Pentabrid HDCVI / AHD / TVI / CVBS / IP

XVR5104HS Dahua DVR WizSense AI-I2
4 channel DVR XVR5104HS-I2 – AI Artificial Intelligence Series – 2MP recording @ 15fps or 10fps 5M-N @, AI and compression coding H.265 +
Supports maximum HDD 6TB (not included).
Works 4 channel audio HDCVI and excels in technology AI: recognition / analysis facial (sex, age, mask etc.) perimeter protection (filter false alarms caused by animals, light sources, etc.), SMD Plus (Smart Motion Detection), the storage of records.
More details about these functions:
Facial detection
This function is based on analysis of individuals. Person can recognize gender, age, wearing masks or glasses, birthday, address and other personal certificate. All these are classified for each option stored in the database, to differentiate categories.

Tripwire analysis
This function can detect people, objects or vehicles that exceed a predefined virtual line.
This is an ideal solution for monitoring entrances, parking areas or other enclosed areas.

SMD Plus (Smart Motion Detection)
DVR XVR5104HS-I2 , has a chip with artificial intelligence, which allows the use of an algorithm Deep Learning, with which false detection of motion are eliminated up to 98% compared standard motion detector. This eliminates false alarms caused by vegetation, changing light, pets and other items that may occur in the surveillance. In addition, this DVR Smart Search allows filtering by people or machines, greatly shortening verification time records.

Join Audio
The logger is designed with one audio input, which can connect a microphone, allowing audio surveillance from remote PC or mobile phone. To connect to audio equipment (stereo, TV, headphones, etc.), the DVR has an audio output.

Specifications:

General
Name – XVR5104HS-I2
Manufacturer – Dahua
Type – Hybrid DVR
Number of channels – 4 channels
Technology – HDCVI HDTV AHD Analog, IP

Register
Compression – AI Coding / H.265 + / H.265 / H.264 + / H.264
Resolutions registration
√ 10 fps / channel @ 5 MP-N (1296 x 1536 pixels)
√ 15 fps / channel @ 4 MP-N (1280 x 1440 pixels)
√ 15 fps / channel @ 1080P (1920 x 1080 pixels)
√ 25 fps / channel @ 1080N (960 x 1080 pixels)
√ 25 fps / channel @ 720P (1280 x 720 pixels)

Bitrate Total – 32 Mbps (bandwidth input)
Maximum bitrate per channel – 32 ~ 6144 Kbps (maximum bandwidth for each channel)

Working mode
Recording Mode – Non-stop, the motion detection after time, alarm (no video signal) off
Backup – Local USB (FAT32) or via the Internet

Features
Special Functions – WizSense Audio via Coaxial, SMD Plus, P2P, intelligent search functions IVS
Hard Disk – 1 x 6TB not included
Power POC – No
Network Interface – RJ-45 (standard port Internet)
Output video – 1 x HDMI, 1 x VGA
Audio – 1 audio input and 1 audio output
Alarm – No

Other functions
– Enables Intelligent Motion Detection (SMD Plus) on all channels
– Perimeter Protection 2ch
– Face Detection one channel
– Face Recognition 1 channel
– AI coding on all channels, which reduces by 50% the standard H.265 compression to store
– When SMD function is activated, only it is available, the rest not being activated
– When the “Face” is activated only Face Detection and Face Recognition can be activated

Other
Size – 260 x 238 x 48 mm
Power – 12V DC

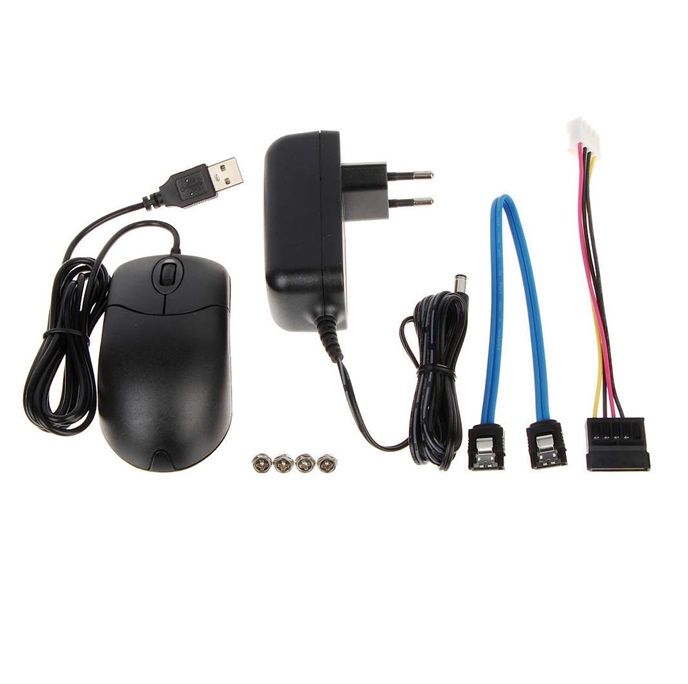

Content:
Mouse
Power 12V / 2A
Bolts for fixing HDD

View images remotely
Dahua offers a mobile application to check your location monitored, even if you are away on vacation! You can access the application from anywhere If you carry a mobile phone to be connected to an Internet network.
– ANDROID
– IOS
– PC
