For those who want impeccable security and top performance, the Dahua surveillance kit , composed of 8 HAC-HFW1200TH-I8-0360B cameras and the XVR1B08-I DVR , is the perfect choice. The robust cameras offer clear images at Full HD resolution, IR illumination up to 80 meters for monitoring at night, and resistance to extreme conditions. In the center of the kit, the DVR integrates smart technology, multiple compatibility and efficient storage with Smart H.265+. This package is ideal for monitoring homes, offices or industrial spaces, offering a perfect balance between advanced technology and ease of use.

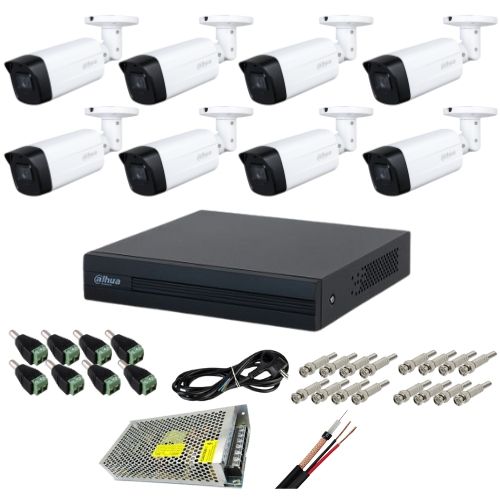

The complete Dahua surveillance kit consists of:
- 8 x Surveillance cameras Dahua HAC-HFW1200TH-I8-0360B HDCVI Bullet 2MP, CMOS 1/2.7″”, 3.6mm, IR 80m, IP67
- 1 x DVR Dahua XVR1B08-I AI WizSense, 8 channels, 1080N/720p, Pentabrid
- 1 x RG59 coaxial cable with power supply 2×0.75 mm roll 100 m
- 1 x Professional power supply 12V 20A
- 1 x Mains power cable with SHUCKO plug and 3 wires
- 16 x BNC plug connectors with screw for coaxial cable
- 8 x TATA power plugs with screw
Surveillance camera, outdoor, 2MP, Dahua HAC-HFW1200TH-I8-0360B, 3.6mm lens, IR 80m
The Dahua HAC-HFW1200TH-I8-0360B bullet-type outdoor video surveillance camera offers an efficient and high-performance monitoring solution. Equipped with a 2 Megapixel video sensor (Full HD resolution of 1920 × 1080 pixels), it ensures high quality recordings. The 3.6 mm fixed lens gives a generous viewing angle of 100, covering a wide area.
Technical specifications of the 2MP IR 80m camera – Dahua HAC-HFW1200TH-I8-0360B:
- Sensor: 1/2.7 inch CMOS
- Video resolution: 2 Megapixels (1920 × 1080 pixels – Full HD)
- Sensitivity: 0.02 LUX (0 LUX with IR illuminator on)
- Fixed lens: 3.6 mm Viewing angle 84
- Aperture: F1.9
- Infrared distance: 80 m
- Playback resolution: 1080p (1920 × 1080); 720p (1280 × 720); 960H (960×576 / 960×480)
- Functions: BLC, HLC, DWDR, AGC, 2D NR, Smart IR, ICR, Electronic Defog, Mirror, Privacy mask
- Power supply: DC 12V ± 30%
- Consumption: max. 4.9 W (DC 12V, IR on)
- Degree of protection: IP67
- Housing: metal + plastic
- Operating temperature: from -40C to +60C
- Humidity: < 95% (non-condensing)
- Dimensions: 240.7 × 90.7 × 90.4 mm
- Weight: 0.62 Kg
Incorporating 2 Smart IR LEDs, the camera allows clear viewing at a distance of up to 80 meters, both indoors and outdoors, even in low-light conditions.
With an IP67 degree of protection, it is resistant to external factors such as rain and dust, being ideal for use in various environments. The camera works in an extremely wide temperature range, from -40C to +60C, which makes it suitable for harsh climatic conditions.
Download the technical sheet
DVR Dahua XVR1B08-I AI WizSense, 8 channels, 1080N/720p, Pentabrid
Dahua XVR1B08-I is a state-of-the-art DVR offering advanced functions, such as SMD Plus on 4 analog channels, for precise alarms when detecting people and vehicles. With 8-channel AI encoding, it optimizes storage and bandwidth, maintaining essential details in videos. Compatible with HDCVI, AHD, TVI, CVBS and IP video inputs, it supports up to 10 IP cameras up to 6 MP and a data stream of 40 Mbps. Smart H.265+ and H.265 technology allows efficient data compression, ensuring significant savings without compromising quality.
Dahua 8-channel WizSense Audio DVR technical specifications:
- Main processor: Built-in processor
- Operating system: Embedded Linux
- SMD Plus: 4-channel performance; AI search Search by target classification (human, vehicle)
- Analog camera input: 8 channels, BNC
- CVI camera input: 1080p at 25/30 fps, 720p at 25/30 fps
- AHD camera input: 1080p at 25/30 fps, 720p at 25/30 fps
- TVI camera input: 1080p at 25/30 fps, 720p at 25/30 fps
- CVBS camera input: PAL/NTSC
- IP camera input: 8+2 channels, each channel up to 6MP
- Audio Input/Output: 1/1, RCA
- Bidirectional communication: Only through RCA ports
- Compression: AI/H.265+/H.265/H.264+/H.264 encoding
- Resolution: 1080N; 720p; 960H; D1; CIF
- Recording rate: Main stream: 8 channels: first channel 1080N/720p (1 fps25/30 fps), others 1080N/720p (1 fps15 fps); 960H/D1/CIF/(1 fps25/30 fps) Sub stream: 8 channels: CIF (1 fps7 fps)
- Bit rate: 32 kbps4096 kbps per channel
- Registration mode: Manual; Program (General, Continuous); MD (Video detection: motion detection, video loss, manipulation); Alarm; Stop
- Recording interval: 1 min 60 min (default: 60 min), Pre-recording: 1 s30 s, Post-recording: 10 s300 s
- Audio compression: G.711A; G.711U; PCM
- Audio bit rate: 64 kbps per channel
- Interface: 1 HDMI; 1 VGA
- Resolution: 1920 × 1080, 1280 × 1024, 1280 × 720
- Interface: 1 RJ-45 port (100 Mbps)
- Network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wifi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTPs; DHCP; DNS; IP filter; PPPoE; DDNS; FTP; Alarm server; P2P; IP Search (Accept Dahua IP camera, DVR, NVS, etc.)
- Max. User access: 128 users
- Interoperability: ONVIF 16.12, according to CGI
- Trigger events: recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Video detection: Motion detection, MD areas: 396 (22 × 18), video loss, handling and diagnosis
- Alarm input: No
- Relay output: No
- HDD: 1 SATA port, capacity up to 6 TB
- Auxiliary interface: USB 2 USB ports (USB 2.0)
- Power supply: DC 12 V/1.5 A
- Power consumption (without HDD): < 7 W
- Dimensions: 197.0 mm × 202.9 mm × 41.5 mm
- Net weight (without HDD): 0.56 kg
- Operating conditions: From 10 C to +45 C
SMD Plus (Smart Motion Detection Plus) from Dahua
It is an advanced motion detection technology that provides more accuracy and reduces the number of false alarms. Here are some essential features of SMD Plus:
- Filtering false alarms : SMD Plus uses artificial intelligence algorithms to distinguish people and vehicles from other moving objects (such as animals, leaves or shadows), significantly reducing the number of false alarms.
- Accurate detection of people and vehicles : The system can identify and classify detected objects, focusing only on people and vehicles, which allows for more efficient monitoring and a quick response to important events.
- Extended compatibility : SMD Plus is compatible with various Dahua cameras, from entry-level cameras to more advanced models, offering flexibility in configuring the surveillance system.
