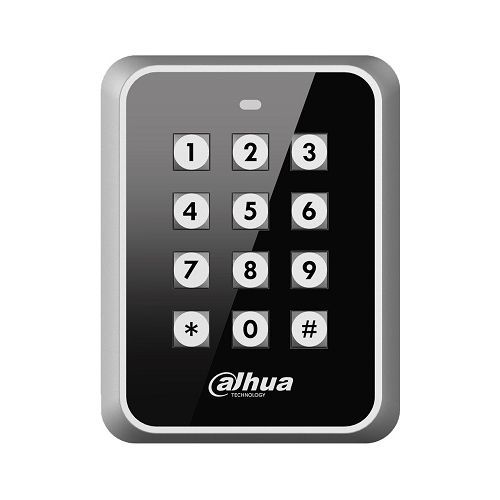

Dahua ASR1101M-D Reader Reader keyboard, RFID cards, Vandalproof

Dahua reader reader with keyboard ASR1101M-D, Vandalproof
Proximity reader with keypad Dahua ASR1101M-D cards 125KHz (EM-ID) Wiegand34 (26 optional) and RS-485 metal buttons with light blue LED indicator red and green Watch dog function that prevents equipment lock, tamper alarm, IK08, assembly applied inside.

Cards compatible:
Unique EM 125kHz

Reading Distance:
max. 8 cm

operate autonomously
–

Integrated Keyboard
YES

to the ring:
–

communication protocol

RS-485
Wiegand 34/26

Exit tamper

supply
± 12 V DC 25%

maximum current consumption:
100mA

Highlights:

Housing with degree of protection vandalism (IK08)
Illuminated buttons blue
Acoustic signaling

Working Temperature:
-30 ° C … 60 ° C

Relative humidity allowed
≤ 95%

sealing Class
IP67

housing
Metal / Plastic

color
Silver / Black

weight
0.5 kg

Size:
85 x 110 x 28 mm

Developer
DAHUA
