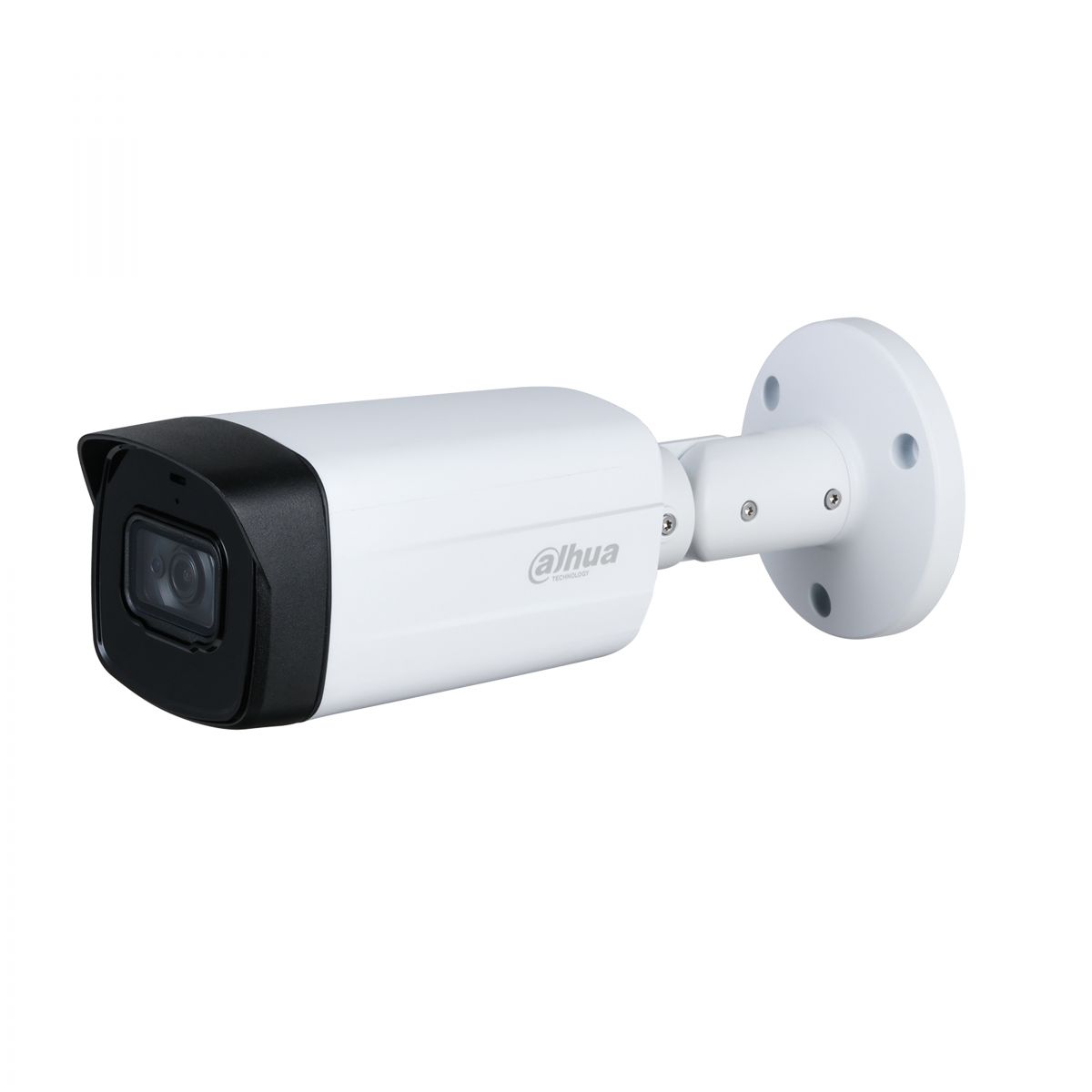

Dahua analog camera, 5MP, outdoor, 80m IR, Starlight, Audio, 3.6mm fixed lens – HAC-HFW1500TH-I8-A-0360B-S3

The Dahua HDCVI Starlight surveillance camera is designed to provide clear and detailed images even in very low-light conditions, making it ideal for professional security applications, both indoors and outdoors.

Thanks to its large image sensor and wide aperture, Starlight technology allows for capturing color images with a high level of detail in dimly lit scenes, facilitating the precise identification of people and objects at night or in environments with limited light.

The camera is equipped with a built-in microphone, allowing the audio signal to be transmitted directly through the coaxial cable. Advanced audio processing technology ensures clear sound reproduction with noise reduction, providing valuable audio information as additional support in video surveillance applications.

The Smart IR function optimizes infrared illumination, ensuring uniform black-and-white images at night. The intensity of the IR LEDs is automatically adjusted based on the distance to the subject, preventing overexposure when objects approach the camera.

Through Super Adapt technology, the camera uses intelligent algorithms to automatically adjust image parameters, providing optimal performance and vivid images in various scene conditions. In addition, advanced 3DNR technology efficiently reduces image noise without affecting clarity, improving video quality especially in low-light conditions and optimizing bandwidth and storage space usage.

The camera benefits from IP67 protection, being resistant to dust and water, and can function normally even after temporary immersion in water. Support for wide power voltage ensures stability and reliability in difficult outdoor environments or with voltage fluctuations.

The HDCVI technology allows the simultaneous transmission of four signals over a single coaxial cable: video, audio, data, and power. Bidirectional communication between the camera and the XVR allows for advanced control of functions and alarm triggering. Support for PoC simplifies installation and reduces setup time.

Technical specifications for Dahua analog camera, 5MP, outdoor, IR 80m, Starlight, Audio, 3.6mm fixed lens – HAC-HFW1500TH-I8-A-0360B-S3:

• Image sensor: 5 MP CMOS
• Maximum resolution: 2880 (H) × 1620 (V)
• Minimum illumination: 0.01 lux@F1.6 (Color, 30 IRE); 0.001 lux@F1.6 (Black/White, 30 IRE); 0 lux (illuminator on)
• Signal-to-noise ratio: >65 dB
• IR illumination distance: up to 80 m
• Illuminator control: Auto / Manual
• Number of illuminators: 2 (IR)
• Lens type: 3.6 mm
• Field of view: H: 90.1°
• Supported resolutions: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576 / 960 × 480); TVI 5M 16:9 (2960 × 1665)
• Day/night mode: Auto (ICR) / Color / Black & White
• Light compensation: BLC / HLC / WDR
• WDR: DWDR
• White balance: Auto / Area white balance
• Gain control: Auto / Manual
• Noise reduction: 3D NR
• Illumination mode: Smart IR
• Privacy masking: On/Off (8 zones, rectangular)
• Built-in microphone: Yes
• Audio pickup distance: up to 8 m
• Video output: CVI / TVI / AHD / CVBS via a single BNC port (DIP Switch)
• Power supply: 12 VDC (±30%) (power adapter not included)
• Maximum consumption: 5.2 W (12 VDC, IR on)
• Operating temperature: -40°C to +60°C
• Protection: IP67
• Casing material: metal front cover; plastic back body; metal bracket
• Product dimensions: 240.7 mm × 90.7 mm × 90.4 mm (L × W × H)
• Net weight: 0.41 kg
• Gross weight: 0.64 kg
