Dahua AI Surveillance System 4 Cameras, 4K 8MP, Microphone, Smart Dual Light, 4-Channel DVR, Mounting Accessories Included, Mobile Viewing

This Dahua surveillance kit is a complete and intelligent solution for securing homes, offices, or commercial spaces. The system includes 4 Dahua HAC-HFW1801TLM-IL-A-0360B-S3 bullet cameras, delivering 4K resolution, Smart Dual Light for vivid night colors, and an integrated microphone for audio capture.

The kit features the Dahua XVR5104HS-4KL-I3 DVR with AI capabilities, enabling intelligent detection of people and vehicles, filtering false alarms, perimeter protection with tripwire and intrusion rules, and accurate real-time notifications. The DVR supports simultaneous playback of all cameras, 4K recording, and remote access via the DMSS app, giving full and easy control over the system.

This kit combines high-quality video performance with AI intelligence, providing a reliable and modern solution for advanced surveillance.

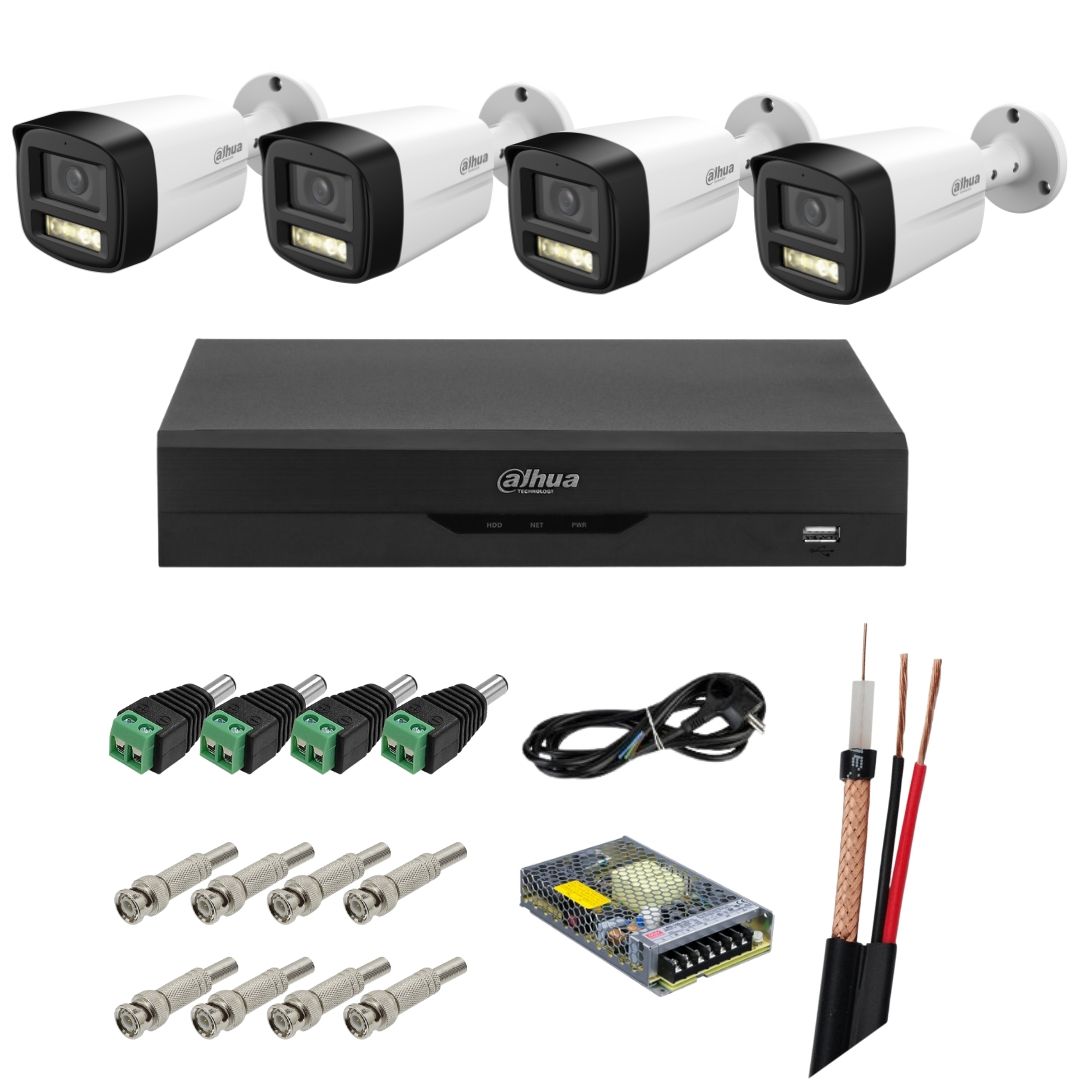

Components:

• 4 × Dahua 4K Bullet Cameras, Smart Dual Light, Microphone, IR 40m, IP67 HAC-HFW1801TLM-IL-A-0360B-S3

• 1 × Dahua XVR5104HS-4KL-I3 DVR, 4-Channel 4K Penta-brid, 1080P

• 1 × RG59 Coaxial Cable with Power 2×0.75 mm, 100 m roll

• 1 × MeanWell Switching Power Supply 13.8V, 12.5A, LRS-150-12

• 1 × Power Cable with SHUCKO Plug, 3 Wires

• 8 × BNC Connectors with Screws for Coaxial Cable

• 4 × Male Power Connectors with Screws

Dahua HAC-HFW1801TLM-IL-A-0360B-S3 Bullet Camera 4K, Smart Dual Light, Microphone, IR 40m, IP67

This camera provides advanced monitoring performance, with 4K resolution and a maximum of 15 fps, ensuring clear and detailed images. The true WDR 120 dB and 3D NR functions guarantee high-quality images even in challenging lighting. The Smart Dual Light system optimizes night illumination up to 40 meters, and the Super Adapt feature automatically adjusts camera parameters for optimal performance. The camera is equipped with an integrated microphone, a 3.6mm fixed lens, supports multiple video formats (CVI/CVBS/AHD/TVI), features IP67-rated protection, and is powered by 12 VDC.

Technical Specifications:

• Image Sensor: 4K CMOS

• Max Resolution: 3840 × 2160

• Scan System: Progressive

• Electronic Shutter: PAL: 1/25s1/100000s; NTSC: 1/30s1/100000s

• Minimum Illumination: 0.01 Lux F2.0 (Color, 30 IRE); 0.001 Lux F2.0 (B/W, 30 IRE); 0 Lux (Illuminator on)

• Signal-to-Noise Ratio: >65 dB

• Illumination Distance: IR 40m; Warm Light 40m

• Illuminator Control: Auto/Manual

• Number of Illuminators: 2 (Warm Light); 2 (IR)

• Pan/Tilt/Rotation Range: Pan 0360; Tilt 090; Rotation 0360

• Lens: Fixed 3.6mm, Viewing Angle 88

• Resolution Options: 4K, 5M, 4M, 1080p, 960H

• Power: 12 VDC ±30%

• Power Consumption: Max 5.7 W (LED on)

• Dimensions: 198.4 × 80.2 × 76.2 mm

• Weight: 0.30 kg

Dahua XVR5104HS-4KL-I3 DVR 4 Channels, 4K, Penta-brid, WizSense, H.265+/H.265, Audio, AI

The XVR5104HS-4KL-I3 is a stand-alone Penta-brid DVR with 4 recording channels, compatible with AHD, HDCVI, HDTVI, IP, and Analog (CVBS) video technologies. It supports a maximum recording resolution of 4K and storage of up to 16 TB via SATA HDD (not included). Backup is available via USB or network, and cameras can be accessed live from anywhere through the DMSS mobile app.

Technical Specifications:

• Supported Technologies: HDCVI / AHD / TVI / CVBS / IP

• Analog Video Inputs: 4 channels

• Video Outputs: 1 × HDMI, 1 × VGA

• Playback Resolution: HDMI 3840 × 2160; VGA 1920 × 1080

• Audio I/O: 1 × RCA + 4 × BNC (audio via coax) / 1 × RCA

• Two-way Audio: Via first channel RCA

• Recording Resolution: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF

• Video Compression: AI Coding; H.265+; H.265; H.264+; H.264

• Backup: USB, Network

• Interface: 1 × RJ-45 (10/100 Mbps)

• Interoperability: ONVIF 21.06, CGI

• Storage: 1 × SATA port, up to 16 TB (HDD not included)

• Special Features: Perimeter Protection, Face Detection, Facial Recognition, SMD Plus, POS & IoT functionality

• Additional Ports: 2 × USB 2.0, 1 × PTZ control port

• Operating Temperature: -10C to +55C

• Power: DC12V / 2A

• Power Consumption: <7W (without HDD)

• Dimensions: 260 × 237.8 × 47.6 mm

• Weight: 0.53 kg

This Dahua AI 4-camera kit combines 4K video, Smart Dual Light night vision, integrated audio, AI motion and perimeter detection, and mobile remote access, providing a modern, reliable, and intelligent surveillance solution.
