Dahua 2-Camera 5MP Dual Light Surveillance Kit IR 20m / White Light 20m, 4-Channel DVR, Accessories and 500GB HDD Included

A surveillance system can help protect your home and belongings.

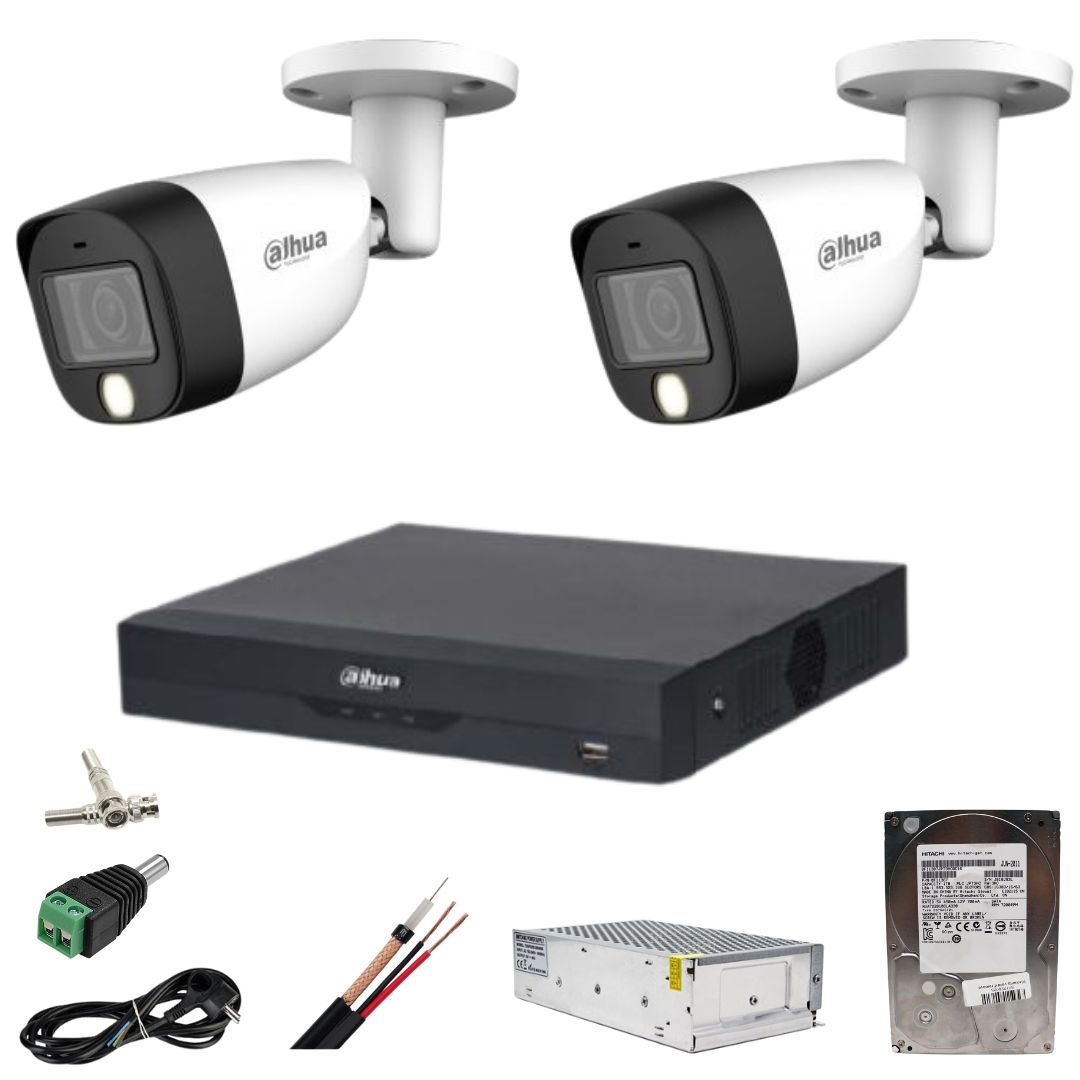

System Includes:

• 2× Dahua 5MP Dual Light Cameras with IR 20m / White Light 20m, built-in microphone, 3.6mm lens, model HAC-HFW1500CMP-IL-A-0360B-S2

• 1× Dahua XVR5104HS-I3 DVR, 4 channels, 5MP

• 1× RG59 Coaxial Cable with Power, 2×0.75mm, 100% copper, 100m roll

• 1× 500GB Hard Disk

• 4× BNC Connectors with Screws for coaxial cable

• 1× Power Supply

• 1× Power Cable with SCHUKO plug and 3 wires

• 2× Male Power Plugs with Screws

Camera: Dahua HAC-HFW1500CMP-IL-A-0360B-S2 5MP Dual Light

Image Sensor: 5MP CMOS
Maximum Resolution: 2880 × 1620
Scanning System: Progressive
Shutter Speed:

• PAL: 1/25s 1/100000s

• NTSC: 1/30s 1/100000s
  Minimum Illumination:

• 0.05 lux @ F1.6 (color, 30 IRE)

• 0.005 lux @ F1.6 (B/W, 30 IRE)

• 0 lux (IR on)
  Illumination Distance: IR: 20 m, White Light: 20 m
  Illuminator Control: Auto/Manual
  Number of Illuminators: 1 IR, 1 White Light
  Lens Type: Fixed focal
  Lens Mount: M12
  Focal Length: 3.6 mm
  Max Aperture: F1.6
  Field of View: H: 92, V: 48, D: 109
  Iris Control: Fixed
  Minimum Focus Distance: 1.3 m (4.27 ft)
  Video Frame Rate:

• CVI PAL: 5M@25fps; 4M@25fps; 1080p@25fps

• CVI NTSC: 5M@25fps; 4M@30fps; 1080p@30fps

• AHD PAL/NTSC: 4M@25/30fps

• TVI PAL/NTSC: 4M@25/30fps

• CVBS PAL/NTSC: 960H

Day/Night Mode: Auto(ICR)/Color/B/W
BLC / HLC / WDR: BLC, HLC, DWDR
White Balance: Auto / Regional Adjustment
Noise Reduction: 2D NR
Video Output: CVI/TVI/AHD/CVBS via BNC
Audio Input: Built-in microphone
Power Supply: 12V DC ±30%
Power Consumption: Max 3.1W (12V DC, WLED on)
Operating Temperature: 40C to +60C
Humidity: <95% RH, non-condensing
Protection Rating: IP67
Housing: Metal
Dimensions: 166.6 × 69.7 × 70 mm

Description:
The Dahua HAC-HFW1500CMP-IL-A camera is part of the Lite series, offering high-quality surveillance at an affordable price, ideal for residential or SMB use. It supports advanced features like full-color and Starlight technology for various lighting conditions.

Dual Light Feature:

• IR Illuminator: Night vision in B/W mode

• White Light: Color video 24/7

• Smart Dual Light: Automatically switches between IR and White Light to reduce light pollution

Audio Transmission: High-quality audio over coaxial cable with noise reduction
HDCVI Transmission: Supports video, audio, data, and power over a single coaxial cable; up to 700m for HD video over coax, 300m over UTP
Mounting Options: Wall, ceiling, or vertical pole
Protection: IP67, waterproof up to 1m for 30 minutes

DVR: Dahua XVR5104HS-I3 4 Channels, 5MP

Description:
Digital Video Recorder (DVR) stores recordings from analog and IP cameras. The XVR5104HS-I3 supports:

• 4 analog channels (5MP max)

• 6 IP channels (up to 6MP)

• HDD storage up to 6TB (backup via USB or network)

• Video compression: H.265+ for smaller file sizes without quality loss

Video/Audio:

• Supported formats: HDCVI, AHD, TVI, CVBS, IP

• Analog Inputs: 4 channels

• IP Inputs: 4+2 channels, up to 6MP per channel

• Video Outputs: HDMI ×1, VGA ×1

• Resolution: 1920×1080, 1280×1024, 1280×720

• Audio: RCA 1/1, two-way communication

Recording:

• Resolutions: 5M, 4M, 1080p, 960H, D1, CIF

• Recording modes: Continuous, Manual, Scheduled, Motion Detection, Video Loss, Alarm, Stop

• Pre/Post Recording: 130s pre, 10300s post

Network:

• RJ-45 (100MB), supports HTTP/HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G

• Up to 128 users simultaneously

• Smartphone compatibility: iOS / Android

• ONVIF & CGI compatible

Advanced Features:

• Perimeter protection, facial recognition, SMD Plus

• AI Search: Human/vehicle classification

• Stranger detection, database management: up to 10 databases, 10, 000 faces

• Event triggers: Buzzer, email, snapshot, alarm, PTZ activation

General Specs:

• Operating temperature: 10C to +45C

• Power: DC 12V / 1.5A

• Power consumption: <4W (without HDD)

• Dimensions: 260 × 238 × 48 mm

• Compact 1U, Weight: 840g
