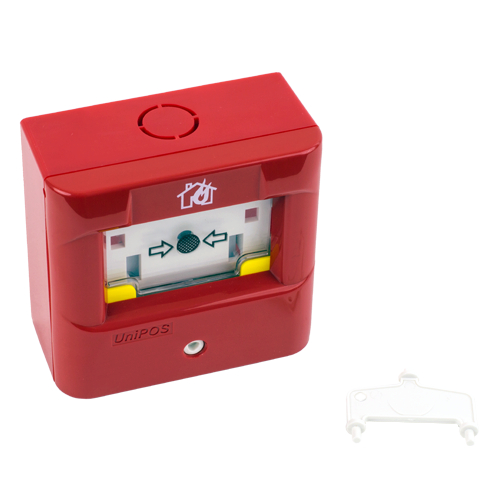

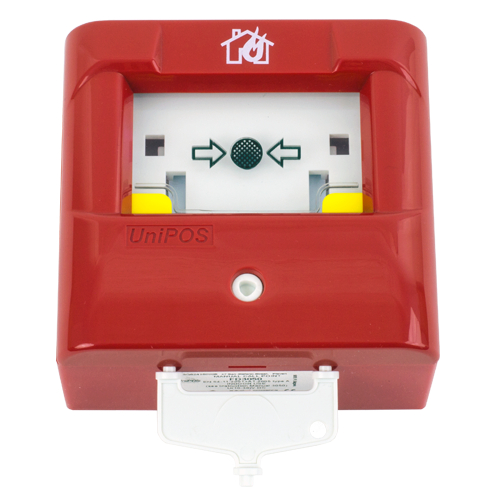

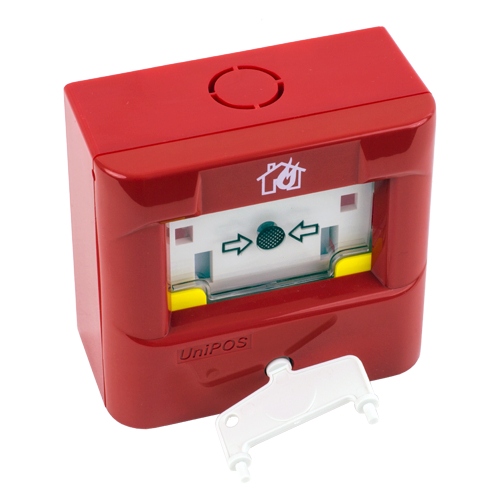

Conventional fire alarm button, cf. EN54-11.
New model. Compact design.
Easy to arm/test thanks to the specially designed key.
Glass with return, supply voltage 10-30VDC, optical indicator signaling.
Optional:
Optional:
Manufacturer: UNIPOS
Type: Conventional fire alarm button
Supply voltage: 10-30VDC
Protection class: IP40
Operating temperature: minus 10 gr. C – plus 55 gr. C
Humidity: (93±3)% at 40 gr. C
Connection: 2 shielded wires
Recommended cable section: (0.8-2.5)mm2
Material: ABS-red
Size: 97x94x47mm
Weight: 200.00 grams
“
