Complete Dahua surveillance kit 4 2MP IR 20 cameras, 4-channel 5MP WizSense DVR, accessories, 500GB HDD + Rovision sticker

Dahua complete outdoor surveillance kit, designed to give you complete security and control over your property. The kit features the Smart Motion Detection (SMD Plus) function. This uses advanced algorithms to distinguish between people, vehicles and other objects, reducing false alarms caused by factors such as animals or weather conditions. Whenever a camera detects motion according to the established criteria, you will instantly receive a notification on your phone, allowing you to view in real time what is happening.

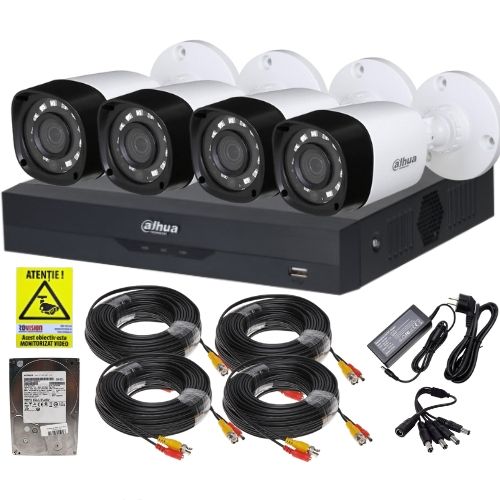

Dahua complete kit components:

• 4 x Dahua analog cameras, 2MP, IR 20m, HAC-HFW1200R-0280B , 2.8mm lens, IP67 (suitable for outdoor use)

• 1 x Dahua DVR, 4 channels, 5MP, XVR5104HS-I3, Smart functions
• 1 x 500GB HDD
• 4 x 10m BNC+DC crimped cables , power and video signal
• 1 x 12V 5A power supply
• 1 x 4-chamber power distributor splitter

Dahua 2MP analog surveillance camera, IR 20m, 2.8mm lens – HAC-HFW1200R-0280B

The Dahua HAC-HFW1200R-0280B surveillance camera is designed to give you clear and detailed images in any conditions. With a Full HD 1080P resolution and a 1/2.7 inch CMOS sensor, this camera captures every detail with remarkable clarity.

Regardless of lighting conditions, the Smart IR function ensures excellent nighttime visibility, with an illumination distance of up to 20 meters . The robust, IP67-certified housing guarantees water and dust resistance , making it ideal for both indoor and outdoor use.

Flexibility is essential: it supports long-distance transmission via coaxial cable, maintaining impeccable video quality. In addition, the multilingual OSD menu offers multiple image adjustment options and functional settings, perfectly adapting to your surveillance needs.

Technical specifications of Dahua 2MP IR 20m analog camera 2.8mm lens IP67 – HAC-HFW1200R-0280B:

• Manufacturer: Dahua

• Sensor: 1/2.7 inch CMOS

• Resolution: 2MP (1920×1080)

• Lens: 2.8mm viewing angle 103

• Minimum illumination: 0.02Lux/F1.9, 30IRE, 0Lux IR on

• IR distance: 20m

• Special functions: Smart IR, image enhancement in case of fog, smoke (electronic defog), 2D NR, BLC/HLC/DWDR
• Connector: BNC

• Technologies: CVI/TVI/AHD/CVBS
• Audio: No

• Power supply: 12V ±30% DC

• Consumption: Max 3.1W (12V DC, IR on)

• Operating temperature: From -40C to +60C

• Protection level: IP67

• Dimensions: 154.3 mm × 69.8 mm × 69.8 mm

• Weight: 0.15 Kg

4-channel DVR, 5MP, WizSense

The Dahua XVR5104HS-I3 DVR is a state-of-the-art video recorder, compatible with AHD, CVI, TVI, CVBS and IP cameras, offering flexibility and high performance. Equipped with SMD Plus (Smart Motion Detection Plus) technology, it can filter false alarms caused by rain, animals or other insignificant elements, ensuring accurate notifications in real time through the DMSS application. It supports Full HD 1080P (2MP) recording and uses H.265+ compression, saving hard disk space and optimizing bandwidth. With this DVR, you have an efficient, intelligent and easy-to-manage surveillance system directly from your phone.

Technical specifications of Dahua 5MP DVR, 4 channels, WizSense:

• Supported technologies: HDCVI/AHD/TVI/CVBS/IP

• Analog video inputs: 4x channels

• IP video inputs : 4+2 channels, resolution up to 6 Mp/channel

• Video outputs: 1x HDMI, 1x VGA

• Playback resolution: 1920 × 1080; 1280 × 1024; 1280 × 720

• Audio Inputs/Outputs: 1/1, RCA

• Bidirectional communication: Using audio input/output, RCA

• Supported camera types: HDCVI cameras: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps; AHD cameras: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps; TVI cameras: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
• Recording resolution: 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF
• Recording mode: Continuous, Manual, Scheduled, Motion detection, Video loss, On alarm, Stop
• Recording interval: 1-60 min, Pre-recording 1-30 sec, Post-recording 10-300 sec

• Video compression: H.265+/H.265
• Interface: 1x RJ-45 Port (100 MB)
• Intercompatibility: ONVIF 16.12, CGI
• HDD: 1x SATA port
• USB: 2x USB 2.0 ports

• RS485: 1x Port, PTZ control
• Special functions: Motion detection, 396 (22 x 18) detection zones, no signal, tampering, playback functions, backup mode; search mode
• Operating temperature: from -10vC to +45C

• Power supply: DC 12V / 1.5A

• Consumption: <4 W (without HDD)

• Size: 260.0 mm × 237.9 mm × 47.6 mm, Compact 1U

• Weight: 840g
