This Dahua surveillance kit is the complete solution for protecting large spaces, offering 16 Dahua HAC-HFW1500TH-I8-0360B-S2 cameras with 5MP resolution and infrared illumination up to 80 meters, perfectly adapted for clear monitoring, day and night. The Dahua WizSense XVR5216AN-4KL-I3 DVR provides 16-channel recording with intelligent video analysis functions, facial recognition and advanced motion detection. The kit comes equipped with a 305-meter reel of 100% copper RG59 coaxial cable , with 2×0.75 mm power supply, two 13.8V and 12.5A power supplies and all the necessary plugs , providing an efficient and reliable installation for uncompromising surveillance.

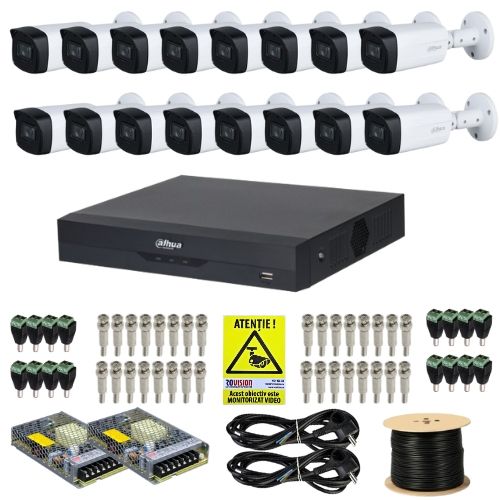

Dahua 16 camera surveillance kit components:
- 16 x Dahua Surveillance Cameras , HDCVI, Starlight 5MP, HAC-HFW1500TH-I8-0360B-S2 , Lens 3.6mm, IR 80m, IP67
- 1 x DVR Dahua WizSense, 16 channels, XVR5216AN-4KL-I3 , 4K 8MP
- 16 x TATA power plugs with screw
- 32 x BNC screw jack connectors for coaxial cable
- 1 x RG 59 coaxial cable 100% copper with power supply 2×0.75 mm drum 305 m
- 2 x Power supplies -13.8V, 12.5A
- 2 x Mains power cable with SHUCKO plug and 3 wires
- 1 x Rovision sticker
Dahua camera, 5MP, Starlight, IR 80m, 3.6mm lens HAC-HFW1500TH-I8-0360B-S2:
The Dahua HAC-HFW1500TH-I8-0360B-S2 outdoor bullet camera has a video resolution of 5 Megapixels (2880 × 1620 pixels), a 3.6 mm fixed lens that allows a visual angle of 109. The camera is equipped with 2 Smart IR LEDs that offer the possibility of viewing images at a distance of 80 m both indoors and outdoors.
Technical specifications of Dahua 5MP Starlight IR 80m outdoor analog camera:
- Manufacturer: Dahua
- Sensor: 1/2.7 inch CMOS
- Resolution: 5MP
- Lens: 3.6mm viewing angle 77.5
- Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0 Lux IR on
- Infrared distance: 80m
- Special functions: Starlight; Smart IR; BLC/HLC/DWDR
- Connector: BNC
- Technologies: CVI/TVI/AHD/CVBS
- Audio: No
- Power supply: 12V±30% DC
- Consumption: Max 5.1W (12V DC, IR on)
- Operating temperature: From 40C to +60C
- Protection level: IP67
- Case type: Bullet, metal+plastic
- Dimensions: 240.7 mm × 90.7 mm × 90.4 mm
- Weight: 410g
DVR 16 channels, 4K 8MP, WizSense Dahua XVR5216AN-4KL-I3:
Dahua XVR5216AN-4KL-I3 advanced DVR with AI features for enhanced security, including QuickPick 2.0 on 2 analog channels for efficient target search and privacy protection by masking detected faces in real time. It supports 16 SMD Plus channels or 32 SMD channels across cameras, providing accurate alarms for people and vehicles, as well as 8 perimeter protection channels with AI detection for tripwire and intrusion.
Technical specifications of the 16-channel Dahua Wizsense XVR5216AN-4KL-I3 DVR:
- Number of channels: 16 channels
- Analog camera inputs: 16 BNC, supports HDCVI/AHD/TVI/CVBS with auto-detection
- CVI cameras: 4K at 25/30 fps; 4K at 12.5/15 fps; 6 MP at 20 fps; 5 MP at 25 fps; 5 MP at 20 fps; 4 MP at 25/30 fps; 1080p at 25/30 fps; 720p at 25/30 fps; 720p at 50/60 fps
- TVI cameras: 4K at 15 fps; 5 MP at 20 fps; 4 MP at 25/30 fps; 3MP at 25/30 fps; 1080p at 25/30 fps; 720p at 25/30 fps
- AHD cameras: 4K at 15 fps; 5 MP at 20 fps; 4 MP at 25/30 fps; 3 MP at 25/30 fps; 1080p at 25/30 fps; 720p at 25/30 fps
- IP camera input: Up to 32 IPC access channels
- Video Bit Rate: 32 kbps6144 kbps
- Video output: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Video compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Alarm: Yes
- Ports: Audio: 1 x RCA, 16 channels BNC (Coaxial Audio); 1 x audio out; 1 x RS-485; 2 x USB; 1 (10/100/1000 Mbps Ethernet port, RJ-45)
- Power supply: 12 VDC, 5 A
- Consumption: <15W
- Weight: 1.80 kg
