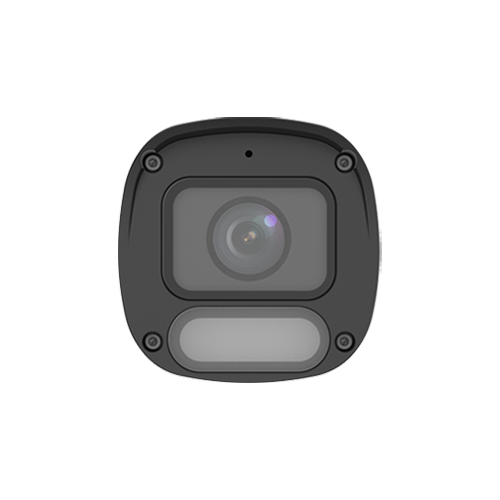

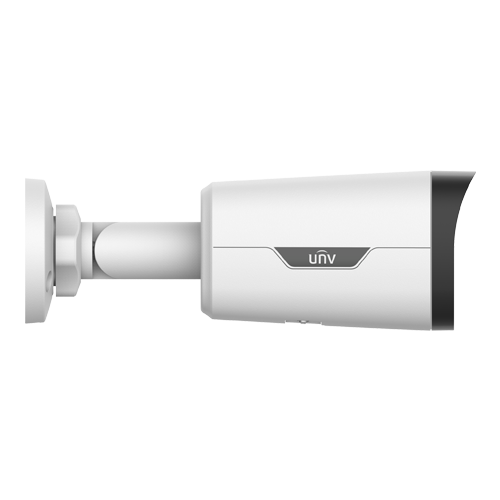

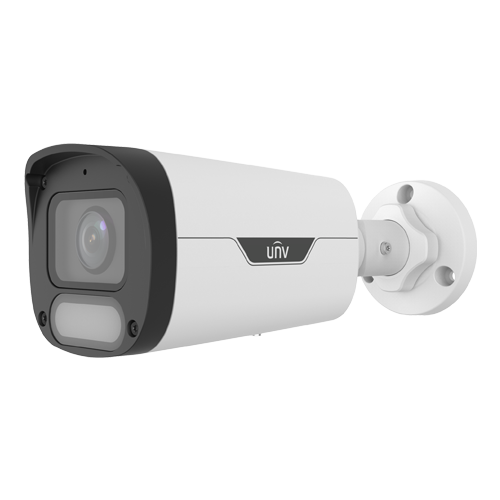

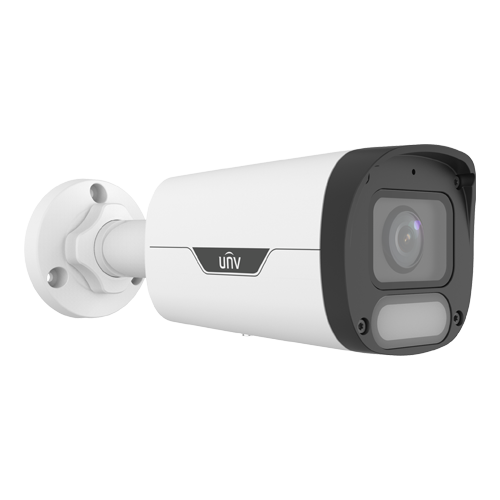

UNV Wise‑ISP ColorHunter 8 MP Bullet Camera IPC2318LE‑ADF40KM‑WP

The Uniview IPC2318LE‑ADF40KM‑WP IP bullet camera is equipped with a 1/1.8″ CMOS sensor and F1.0 aperture, delivering vibrant color images non-stop thanks to ColorHunter technology and the Wise‑ISP processor. With a 30 m warm‑light illuminator, Ultra HD 8 MP resolution, and IP67 metal housing, it is the ideal solution for professional outdoor or indoor surveillance.

Video Quality and Image Processing

Maximum resolution 8 MP (3840 × 2160) at 20 fps, with support for 5 MP/4 MP/2 MP at 30 fps. Ultra H.265, H.265, H.264, MJPEG compression with dual-stream, 120 dB true WDR, 2D/3D DNR, digital defog and 9:16 Corridor mode.

ColorHunter & Wise‑ISP Technology

The F1.0 sensor with minimum color sensitivity of only 0.0003 lux (AGC ON) maintains continuous color imaging without IR switching. Wise‑ISP automatically optimizes exposure, white balance, and reduces noise for natural frames.

Integrated Warm‑Light Illuminator

LED illuminator with warm light, range up to 30 m, automatic/manual control for visual optimization without disturbing white light.

Audio and Smart Detection

Built-in microphone with G.711 compression (64 kbps), audio, motion, tampering detection. Smart UMD and SIP Lite functions detect intrusions and crossing lines with person/vehicle filtering for accurate alarms.

Storage and Connectivity

Micro‑SD slot up to 512 GB with ANR/NAS, Ethernet 10/100 Mbps, PoE 802.3af or 12 V DC, IPv4/IPv6, TLS/HTTPS protocols, ONVIF Profile S/G/T support, up to 32 simultaneous users.

Construction and Protection

Metal housing with IP67, resistant to temperatures between -30 C and +60 C, 4 kV surge protection, 3‑axis adjustment (pan 360, tilt 90, rotate 360), max. consumption 3.9 W.

Main Technical Specifications

• Resolution: 8 MP (3840×2160) @20 fps; 5/4/2 MP @30 fps
• Sensor: CMOS 1/1.8″, F1.0, min. illumination 0.0003 lux (color)
• Fixed lens 4.0 mm, FOV H=94.2, V=51.0, D=111.7
• WDR 120 dB, BLC/HLC, 2D/3D DNR, digital defog, 9:16 Corridor mode
• Video compression: Ultra H.265, H.265, H.264, MJPEG; bitrate 1286144 kbps
• OSD / privacy mask (4 zones) / ROI (8 zones)
• Audio: integrated G.711 microphone, audio detection
• Smart detection: motion, UMD, tampering, intrusion, cross‑line
• Warm‑light illuminator: up to 30 m, auto/manual
• Storage: Micro‑SD max. 512 GB, ANR/NAS
• Network: Ethernet 10/100, PoE 802.3af, DC12 V; advanced protocols
• Protection: IP67, 4 kV surge; temperature -3060 C
• Dimensions 73×73×206 mm; weight ~480 g

Advantages

• 24/7 Ultra HD color images without IR switching
• Excellent low-light performance thanks to F1.0, WDR and Wise‑ISP
• Adaptive illuminator without optical discomfort
• Smart detection with minimal false alarms
• Flexible storage and network/ONVIF compatibility
• Robust housing for outdoor use
• Simple installation with PoE and 3-axis orientation adjustment
