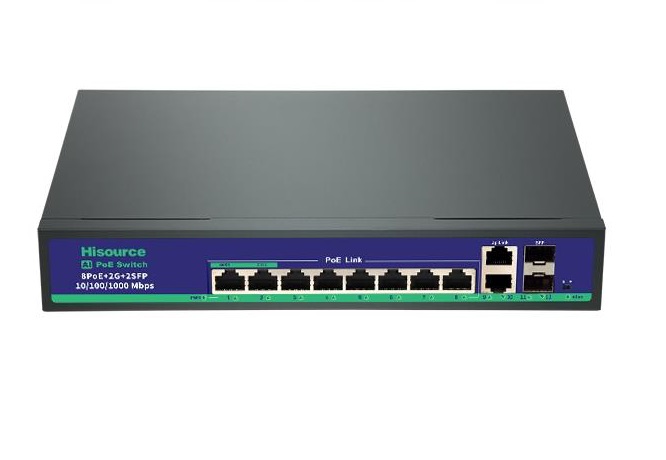

BestNPS AI Watchdog Full Gigabit PoE Switch, 8 PoE ports, 2 UP Link ports, 2 SFP ports, 100m, 30W/port, 120W

This network switch complies with IEEE 802.3, 802.3u, 802.3x, 802.3ab, and 802.3af/at standards and is equipped with 8 Gigabit RJ45 ports with PoE+ support, along with 2 RJ45 uplink ports and 2 SFP 1Gbps uplink ports, offering high connectivity flexibility. The total PoE power reaches 120W, with each port capable of providing up to 30W, making it ideal for powering devices such as surveillance cameras or access points. The switch features a switching capacity of 16 Gbps and a 4K MAC address table, ensuring stable and fast network performance. It also supports IEEE 802.3X flow control for full-duplex and backpressure for half-duplex, as well as intelligent mechanisms such as power priority and automatic MAC address learning. It operates in various environmental conditions at temperatures ranging from -10°C to +55°C.

• Network standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af/at

• Ports: 8 x RJ45 10/100/1000 Mbps

• Uplink ports: 2 x RJ45 10/100/1000 Mbps

• SFP uplink ports: 2 x 1000 Mbps

• PoE+ support: 8 RJ45 ports

• Total PoE power: max. 120 W

• Maximum power per port: 30 W

• PoE connection: ports 1-8 support IEEE 802.3af/at (1/2+, 3/6- and 4/5+, 7/8-)

• MAC table: 4K addresses

• Switching capacity: 16 Gbps

• Forwarding rate: 10BASE-T 14880 pps/port

• Forwarding rate: 100BASE-TX 148800 pps/port

• Forwarding rate: 1000BASE-TX 1488000 pps/port

• Port functions: power priority, automatic MAC learning

• Flow control: IEEE 802.3X full-duplex and backpressure for half-duplex

• Operating temperature: -10°C to +55°C

• Model: NPS0822

• Power supply: built-in power supply

• Input: 220V, 50Hz

• Output: DC 52V ±5%, 2.3A, max. 120W

• Weight: 1.5 kg

• Dimensions: 270 x 180 x 44 mm
