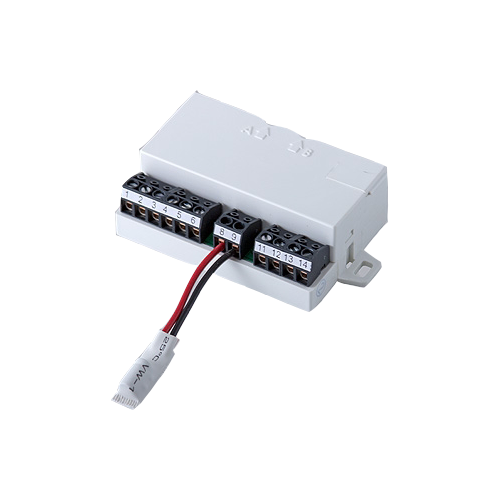

Addressable module for conventional line – UNIPOS FD7201S

Addressable mode for conventional line. It allows the connection of a line of up to 32 conventional detectors to the addressable control panels of the IFS7000 series. 2 Isolators included, power from the signal loop and the power loop. Possibility of connecting up to 125 modules in a loop. According to European standards EN54-5, EN54-17 and EN54-18.

Manufacturer: UNIPOS
Type: Addressable module for conventional line
Technical Specifications:
Supply voltage:
from the signal loop: 15-30VDC
from the supply loop: 15-30VDC
Consumption in working mode:
from the signal loop: 310 ?A at 24VDC
from the supply loop: 2-8 mA
Consumption in alarm:
from the signal loop: 3mA
from the supply loop: <50mA
Conventional line supply voltage: 12-30VDC
Conventional line consumption:
Interruption “fault” condition: 0-2mA
In working mode: 3-13mA
In alarm mode: 14-50mA
Short “fault” condition: >50mA
Operating temperature: minus 10 gr. C – plus 55 gr. c
Humidity: <95%
Signal loop connection: 2 shielded wires
Power loop connection: 2 wires
Conventional line connection: 2 wires
Recommended cable section: (0.8-2.5)mm2
“
