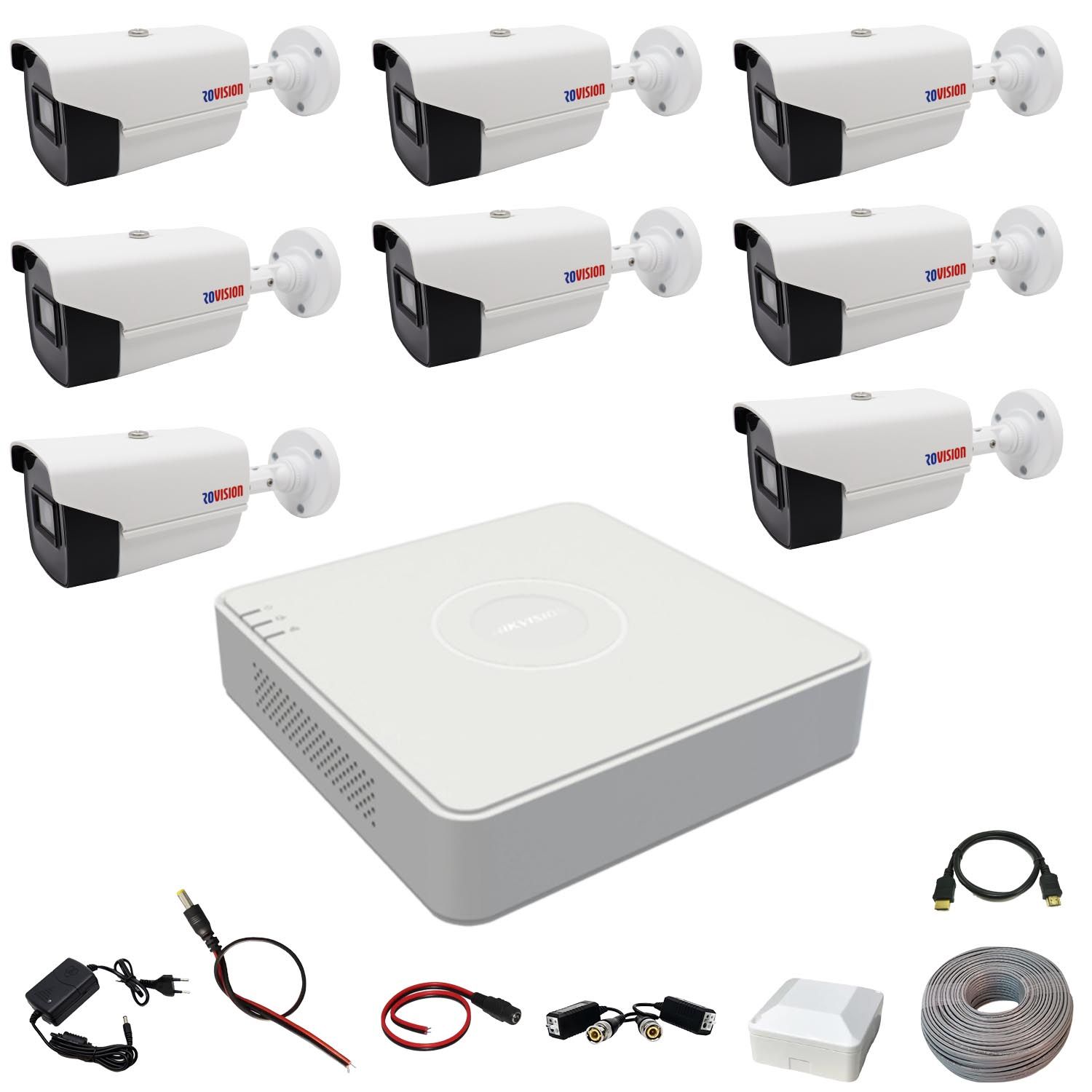

The system contains:
- 8x ROVISION2MP22 full hd 2MP surveillance camera, IR40m – 5 year warranty!
- 1x DVR 8 channel video 1080P lite
- 8x 12V 2A wired power supply
- 8x Male wire power plug
- 8x Female wire power plug
- 8x Balloon Set
- 100m x CAT5E Copper UTP Cable
- 8x Junction box for camera mounting
- 1x HDMI cable
In addition, you need a HDD.
ROVISION2MP22 full hd 2MP surveillance camera, IR40m
The ROVISION2MP22 bullet surveillance camera is compatible with any DVR of at least 1080N, has a resolution of 2MP, and a switch button for the four AHD / CVI / TVI / CVBS technologies. The 2.8 mm fixed lens offers a viewing angle of:
diagonal 124.6 °
horizontal 106.4 °
vertical 57.9 °
The camera is equipped with IR LEDs that offer the ability to view images at a distance of 40m at night. It has a degree of protection IP67 that protects the camera from external factors which makes it suitable for outdoor space. Among the special functions, the camera is equipped with BLC , HLC and DWDR
DVR 8 channel video 1080P lite
Model / manufacturer: HIKVISION
Recording: 1080pLite / 720P lite @ 15fps / ch WD1 / D1 25fps / ch
Supported cameras: HDTVI AHD CVI 1080P / 720P; Analog + 2 IP channels max. 5MP
Compression: H.265 Pro + / H.265 Pro / H.265 / H.264 + / H.264
Playback: 1-8 synchronized channels
Inputs: 8 x BNC; 1 x 10/100 2xUSB LAN audio
Outputs: 1 HDMI 1 VGA – (simultaneous); 1 audio
Storage: 1 x SATA HDD max 4TB (not included)
Power supply: 12V DC
Power consumption: 17W (without HDD)
Dimensions: 200 x 200 x 45 mm
Audio: 8 x HDTVI audio over coaxial 1 x analog RCA
12V 2A wired power supply
- 2A / 12V power supply with wire filter
- Input voltage: 90-240AC, 50-60Hz
- Output voltage: 2A
- Cable length: 100 CM
- Overload protection, overvoltage, short circuit
Male wire power plug
- Thread thickness 5.5 * 2.1mm
- Length 30 centimeters
Female wire power plug
- Thickness 5.5 * 2.1mm
- Length 30CM
Balloon set
- Protection against interference and electrical discharges
- HDCVI / HDTVI / AHD passive balloon video (price / set 2 pcs.)
- ABS housing design with organizing system
- HD video balloon for HD video signal transmission, 720P / 1080P via UTP cat5e / 6e cable
- Connector BNC connector – central pin.
- Quick connect terminal
- Transmission distance: 600M Color, 1000M Black and white
- Protection: ESD, electrical discharges, anti-interference, anti-seismic and voltage drops.
- They are recommended for professional surveillance systems.
CAT5E UTP cable Copper
- 0, 5mm
- 24AWG
- roll100m
- Gray color
- UTP: Cable with twisted pairs in foil
- The conductors are wrapped in an outer shielding film to protect against external interference.
- The outer foil acts as a grounding conductor
- It has 8 conductors that form 4 constructive pairs
- Each pair has a standardized color, for easier identification: orange, green, blue, brown .
Derivation box for camera assembly
- Type: Pyramid lid shunt dose
- Dimensions: 100 x 100 x 50 mm
- Color: Glossy white
- You can mask the video balloon, 1, 2, 3A 12v power supply with wire, power plugs or BNC plugs protecting from the weather
- Contains screws for easy mounting
HDMI cable
- Male HDMI cable – Hdmi Male ETHERNET
- 1.5 meters
