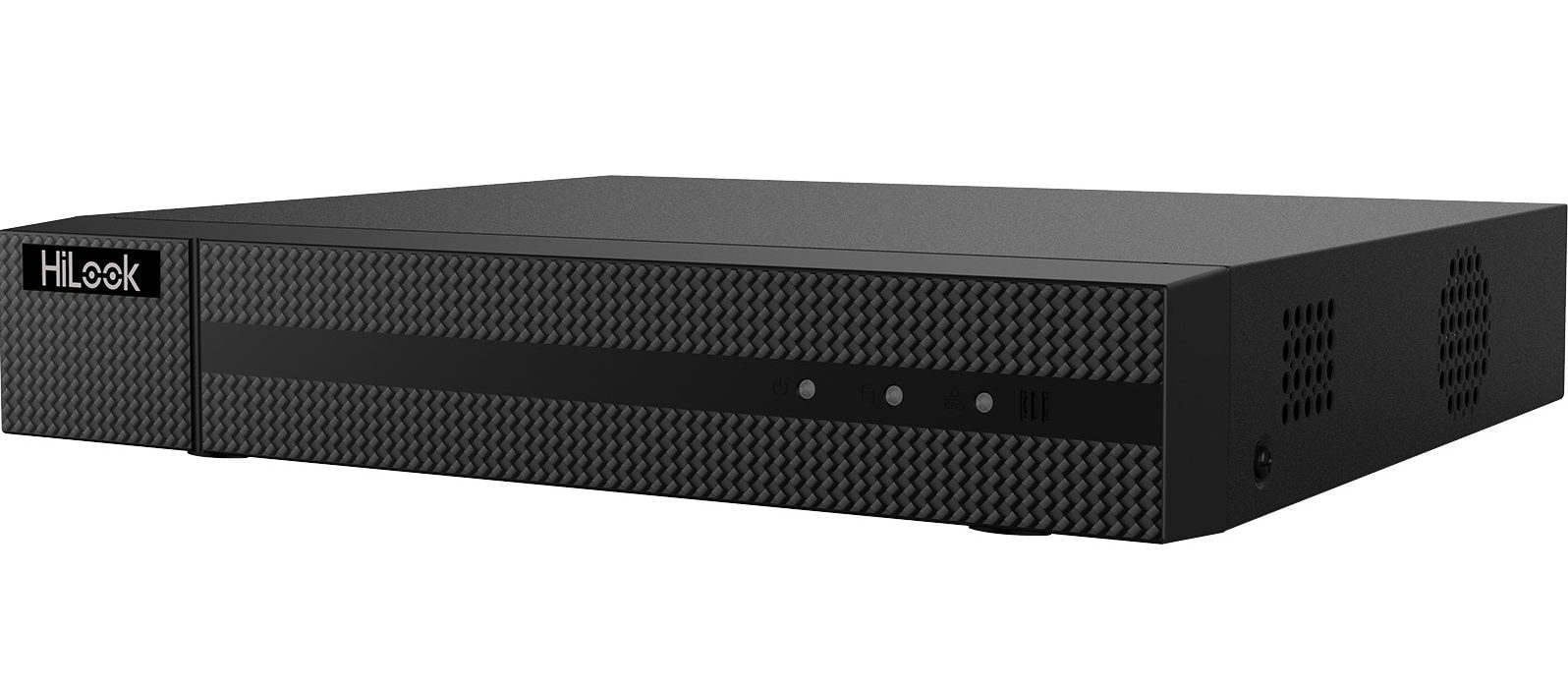

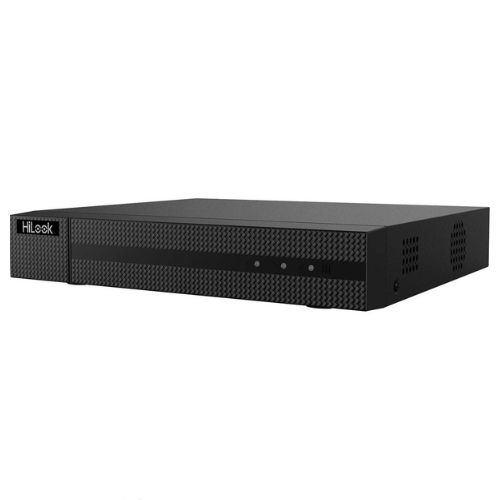

8-Channel Hikvision HiLook NVR-108MH-C(D), 8MP 4K, 80 Mbps, Motion Detection, 1x SATA up to 8TB, HDMI, VGA

The Hikvision HiLook NVR-108MH-C(D) is an 8-channel IP NVR, offering advanced surveillance solutions for various applications. The device supports video playback at resolutions up to 8MP 4K, providing clear and highly detailed images.

A key feature of this model is its simultaneous decoding capability, which allows multiple video streams to be processed as follows:

• 1 channel at 8MP
• 3 channels at 4MP
• 6 channels at 1080p Full HD

Technical specifications NVR 8-channel 8MP 1xSATA – NVR-108MH-C(D):

• IP Video Input Channels: 8
• Video Compression: H.265+/H.265/H.264+/H.264
• Decoding Capacity: 1-ch@8MP, 3-ch@4MP, 6-ch@1080p
• Max Bandwidth: 80 Mbps (input) / 80 Mbps (output)
• HDMI Output: 1 channel, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output: 1 channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Audio Output: 1 channel RCA (Linear, 1 KΩ)
• Two-way Audio: 1 channel RCA (2.0 Vp-p, 1 KΩ)
• Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronized Playback: 8 channels
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
• Remote Connections: Up to 32 connections
• Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
• Network Interface: 1 × RJ-45, 10/100 Mbps adaptive
• SATA Interface: 1 × SATA
• Storage Capacity: Up to 8 TB per HDD
• USB Interface: 2 × USB 2.0
• Power Supply: 12 VDC, 1.5 A
• Power Consumption: ≤ 10 W (without HDD)
• Operating Temperature: -10C to 55C
• Operating Humidity: 10% to 90%
• Dimensions (L × W × H): 265 × 225 × 48 mm
• Weight: ≤ 1 kg (without HDD)
