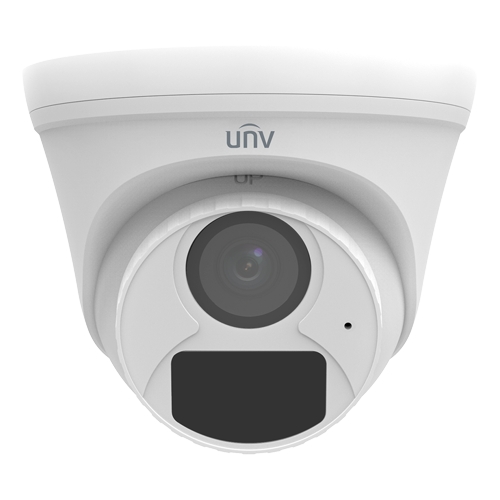

5MP IR 20m 2.8mm Lens Microphone UNV Surveillance Camera – UAC-T115-AF28

5MP IR 20m Surveillance Camera 2.8mm Lens Microphone UNV – UAC-T115-AF28

Specifications

Model / Manufacturer: UNV (Uniview)
Sensor: 1/2.7′ 5.0 megapixel
Resolution: 5MP(2880 x 1620)@25fps 4MP/1080P
Lens: 2.8mm viewing angle 102.2Â
Minimum illumination: 0.02 lux (F2.0 AGC ON) 0 Lux with IR
White Light: up to 20m IR-CUT filter with auto-switch
Power supply: 12 V DC ± 25%
Consumption: max. 3.3W
Operating temperature: -30ÂC ~ +60ÂC IP67
Dimensions: Ø118 × 96 mm
Weight: 183 g.
WDR: Digital
Protection against electrical discharges: 4KV
Video signal: TVI/AHD/CVI/CVBS
Audio: Built-in microphone ‘Audio over coaxial’ compatible TVI/CVI

DESCRIPTION

With a 1/2.7 inch and 5 megapixel sensor, this camera captures high-resolution images, ensuring outstanding clarity and detail. The 5MP (2880 x 1620) resolution at 25 frames per second, along with additional resolution options, offers flexibility and adaptability to different surveillance requirements.

The 2.8mm lens offers a wide viewing angle of 102.2 degrees, allowing for extensive monitoring of large areas, and the minimum illumination capability of 0.02 lux, along with white light up to 20 meters and the IR-CUT filter with automatic switching, ensures clear images even in low light conditions.

This is an essential feature for effective monitoring at night or in dimly lit areas.

The stable 12V DC power supply and low power consumption of max. 3.3W, together with a weatherproof housing according to the IP67 standard, ensure the camera’s durability and reliability in varied weather conditions, from low temperatures of -30C to high temperatures of +60C.

Protection against electrical discharges up to 4KV offers added safety in environments exposed to electrical hazards.

Advanced surveillance features such as digital WDR and a video signal compatible with multiple standards (TVI/AHD/CVI/CVBS) enhance the camera’s versatility, making it suitable for a wide range of applications.

The integration of a microphone and support for audio over coaxial extend the camera’s functionality, allowing sound to be captured in the monitored area. This combination of optical performance, resistance to adverse conditions, and advanced features makes the UNV (Uniview) surveillance camera an excellent solution for property security.
