Pentabrid 5 in 1 DVR with 8 channels, supports 8 full hd cameras
Availability:
Out of stock
Without VAT
€60,45
Out of stock

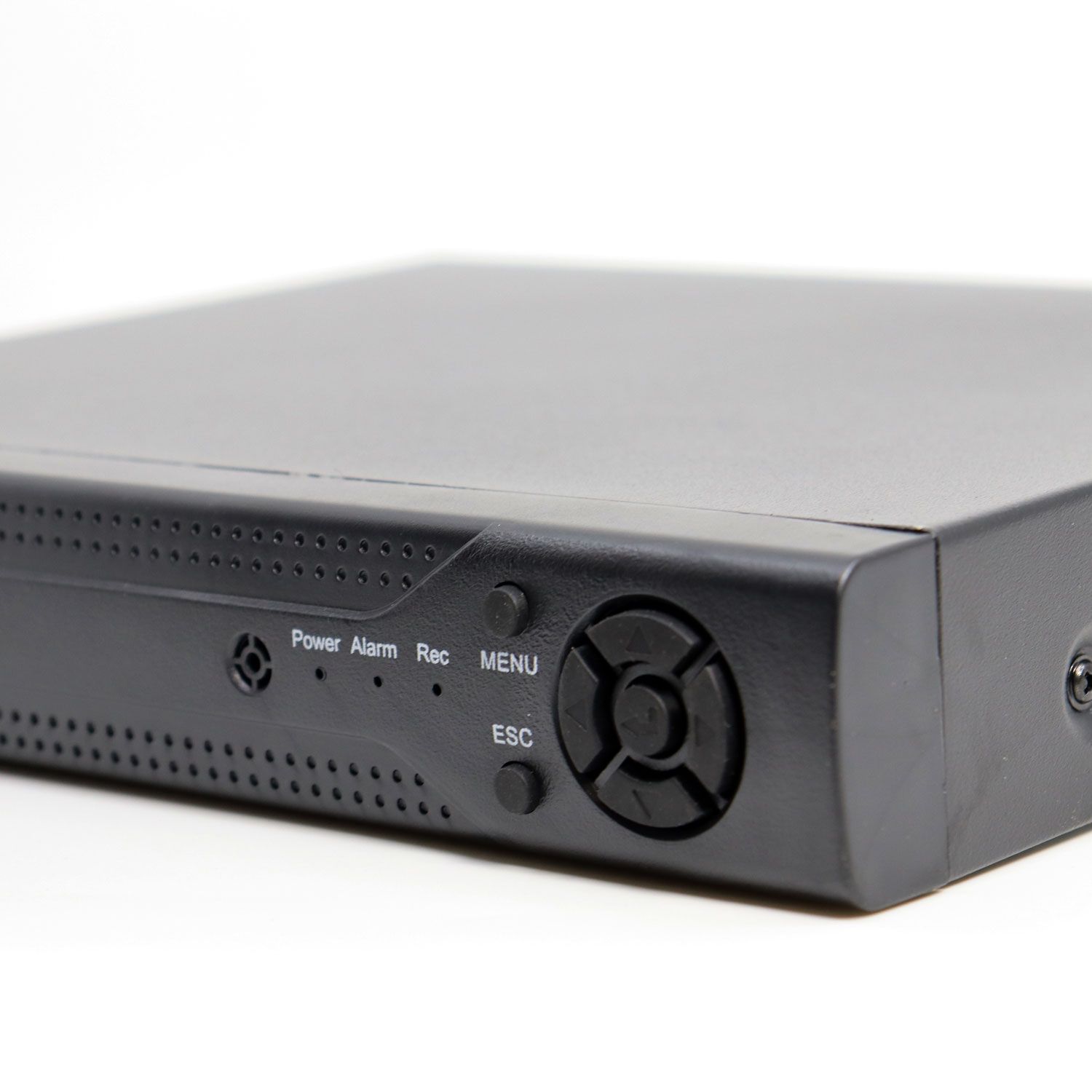

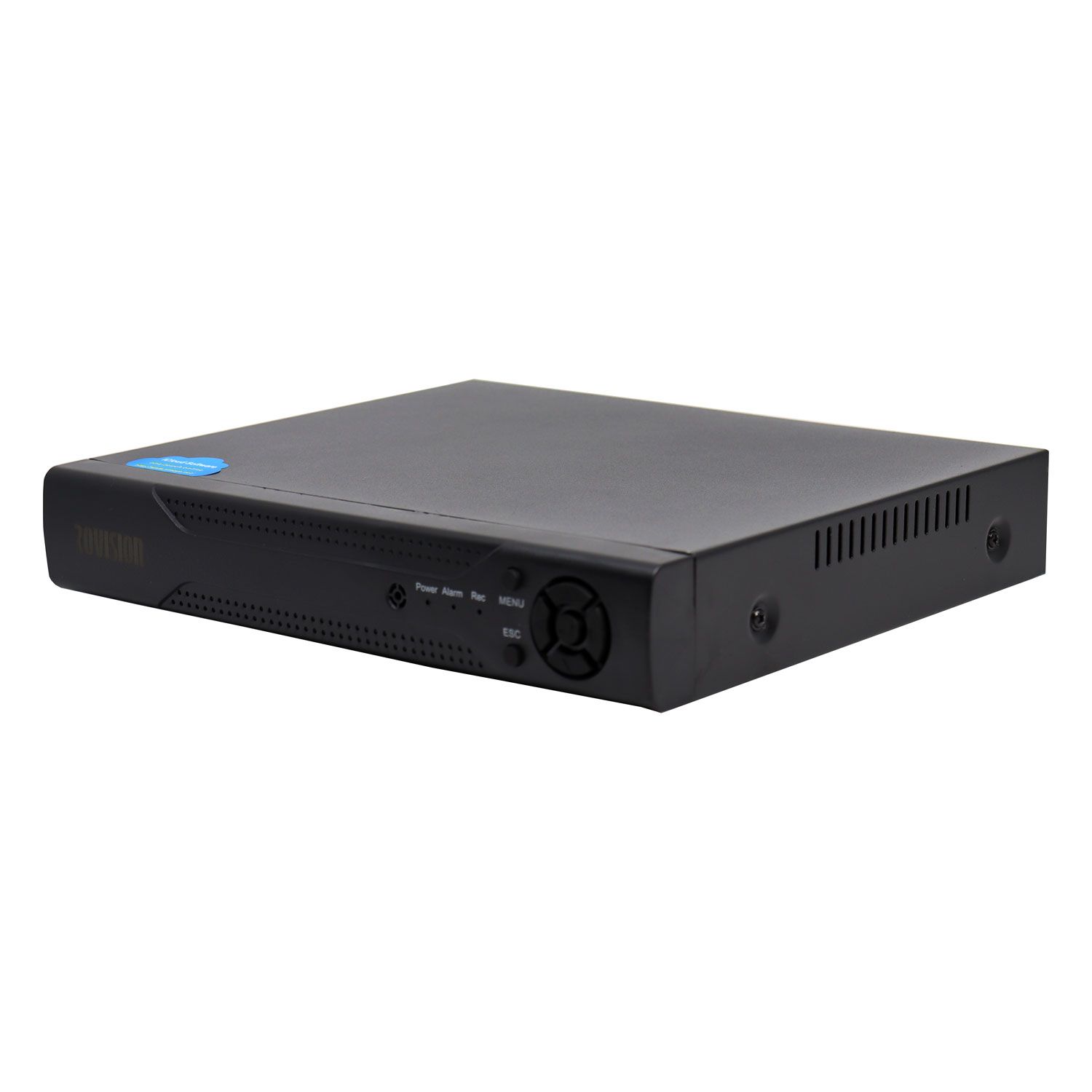

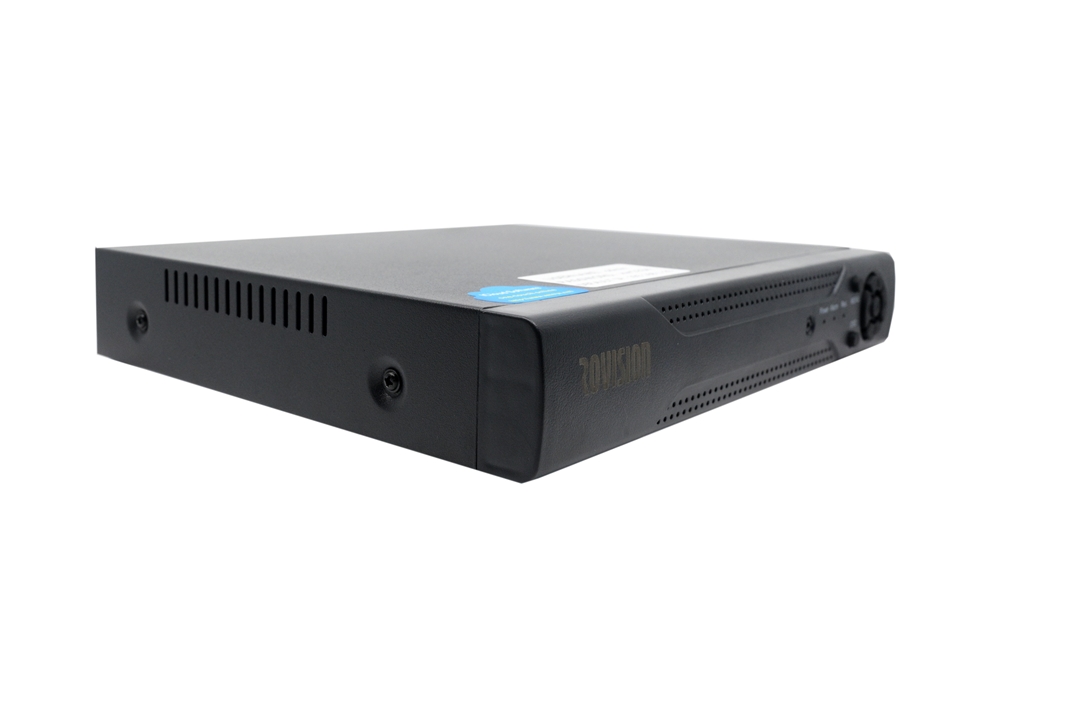

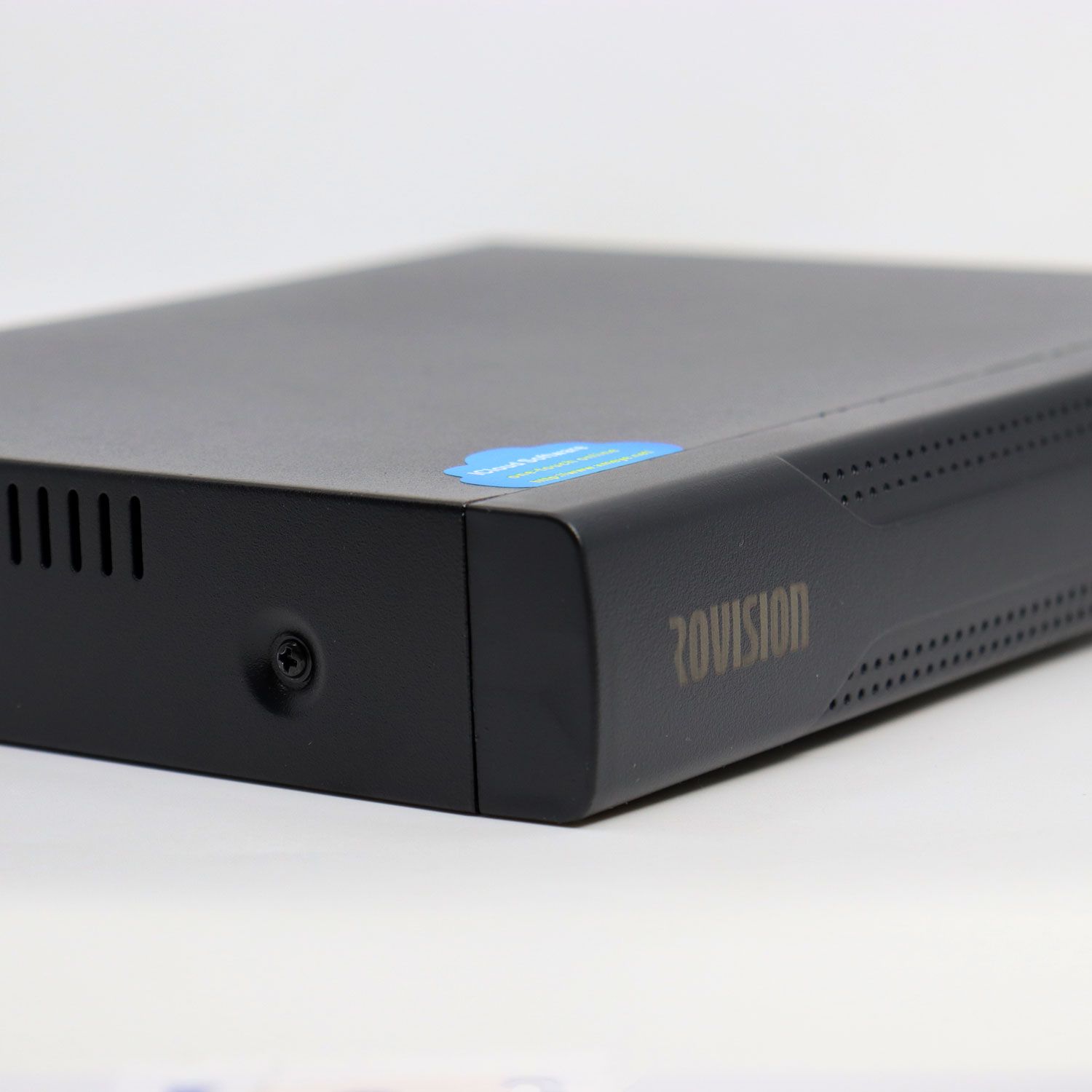

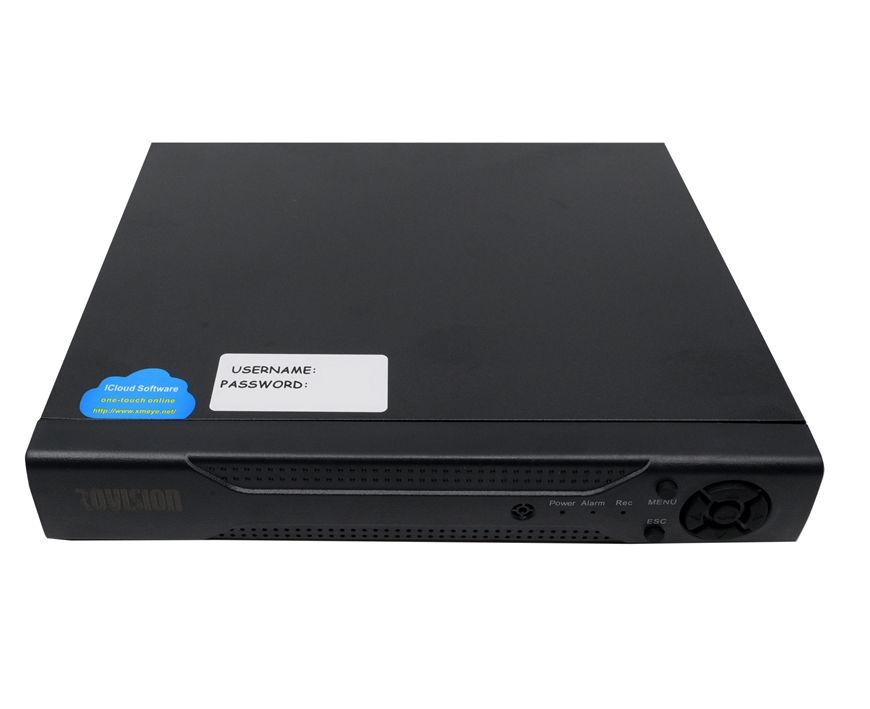

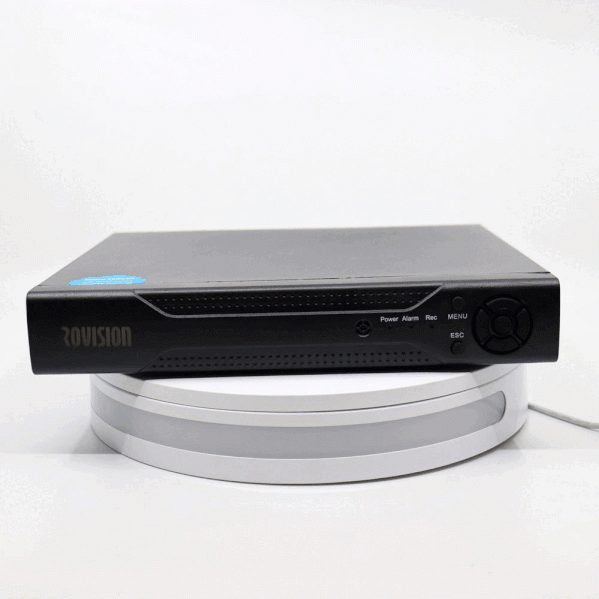

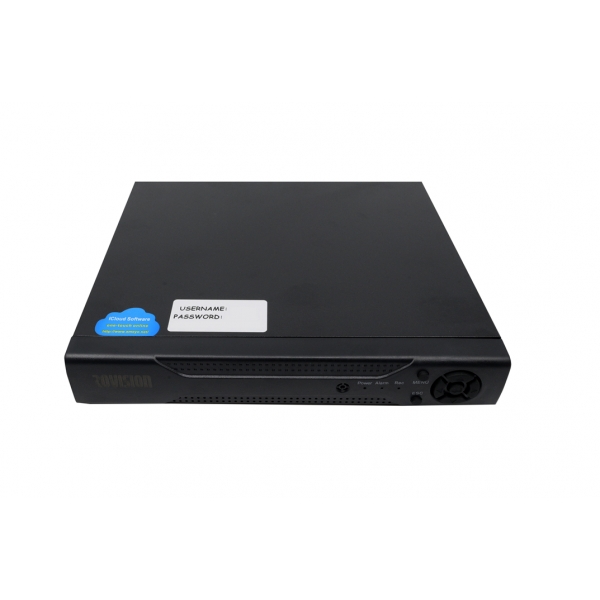

Pentabrid 5 in 1 DVR with 8 channels, supports 8 FULL HD ROV-508 cameras
DVD with 8 video inputs and supports multiple camera types: classic analog, IP cameras, AHD / HDCVI / HDTVI cameras (HD quality by coaxial cable with BNC connectors). The DVR records in real time at 25fps / second / channel at 720p analog and 1080p digital resolution.
General characteristics:
- XVR HIBRID 8 canale 1080P FULL HD 5 IN 1(,AHD,TVI,CVI,ANALOG,IP)
- multiple combinations of analog or IP cameras
- supports up to 6TB hard drive (not included)
- motion detection recording
- internet monitoring from mobile phone, tablet or PC, email alert
- ONVIF compatibility
- DDNS, limbi multiple, cloud (www.xmeye.net)
- operating temperatures: 0 degrees Celsius to +50 degrees Celsius
- 12V / 2A power supply
- Model ROV-508 System Main processor Hi3520DV400 Interface Preview 1/4/8/9

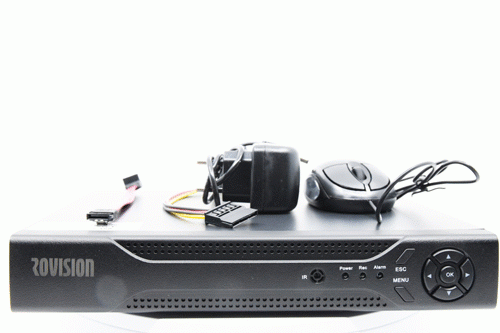

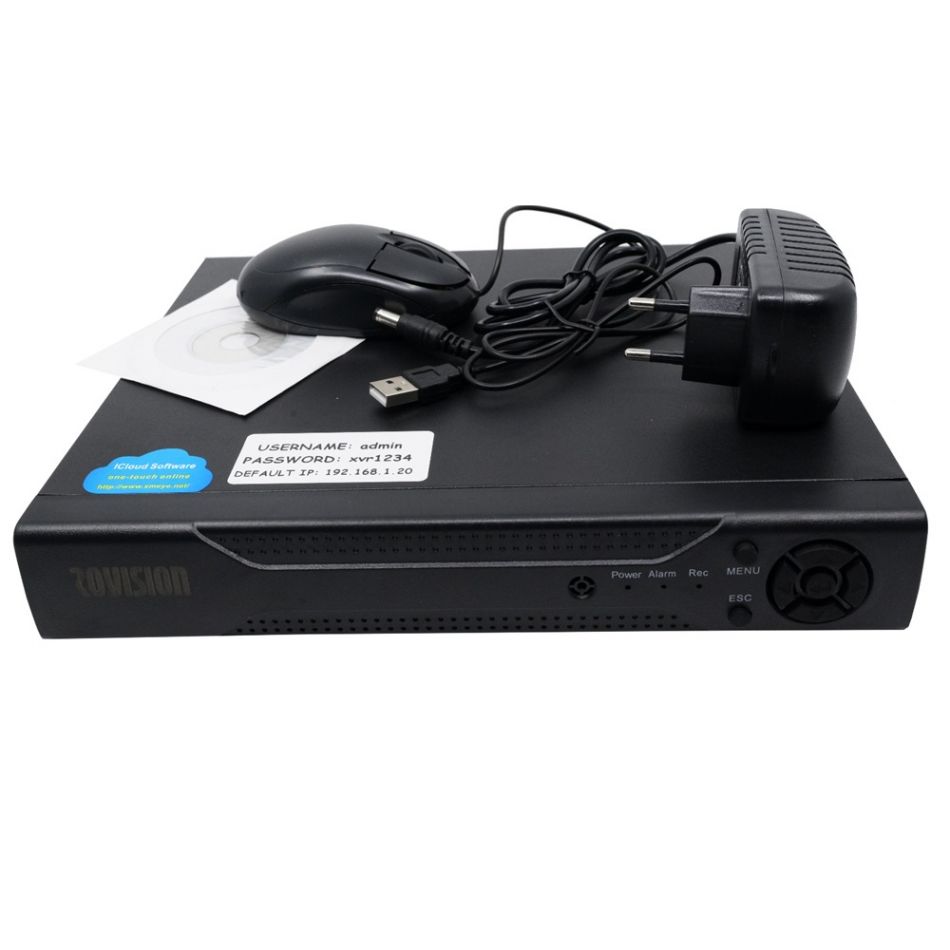

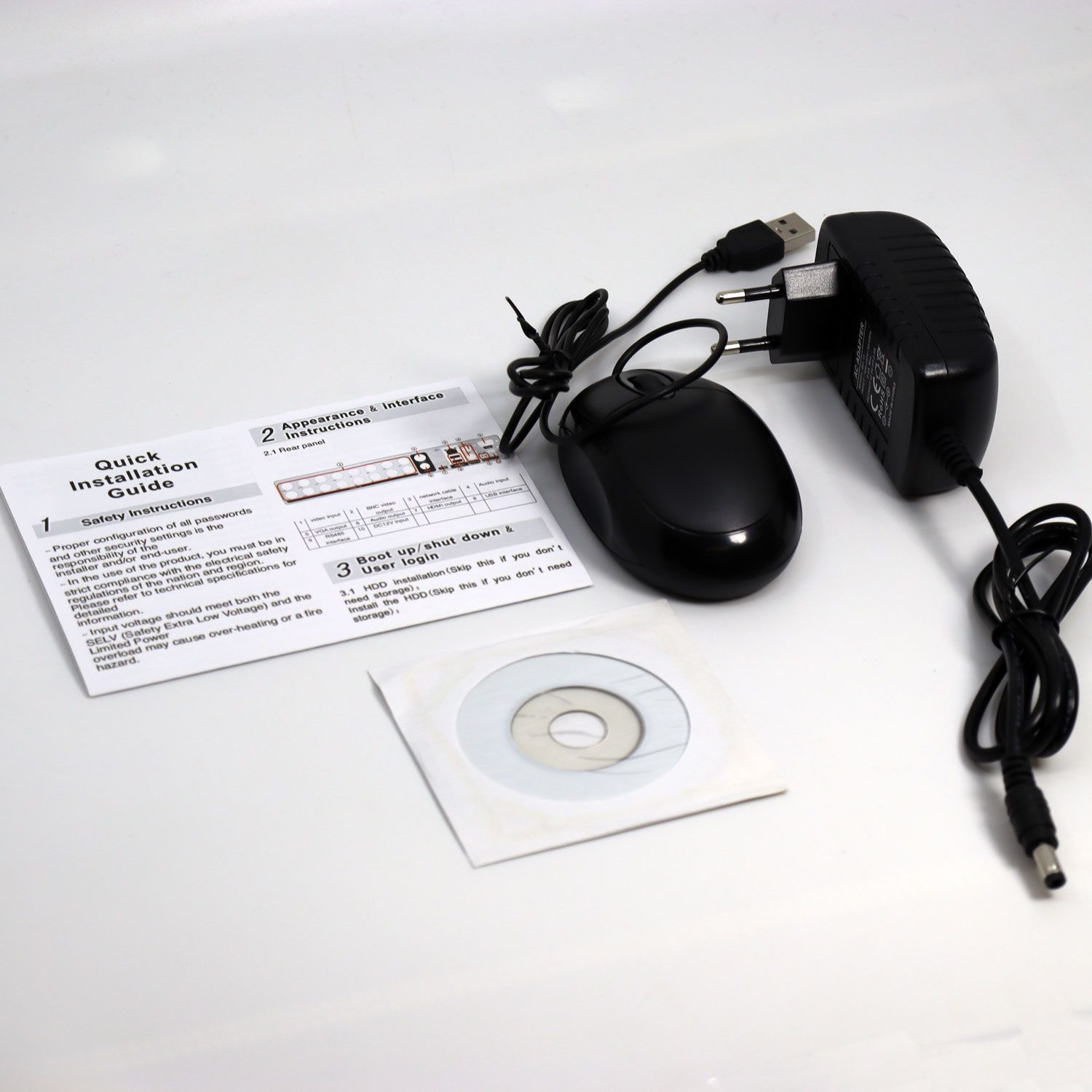

Contains:
- Mouse
- 12V / 2A power supply
- HDD mounting screws
- Installation manual
Video
- Codec H.265 Monitor quality VGA(1080P at most);HDMI(1080P at most) Preview ability 8*5M-N@12fps（6 in 1）/8*4M-N@15fps（6 in 1) 8*1080P@15fps（6 in 1）/4*1080P（6 in 1
- Encode abilit 8*5M-N@6fps（6 in 1）/8*4M-N@8fps（6 in 1) 8*1080P@8fps（6 in 1）/4*1080P@18fps（6 in 1)
- Decode ability 4*5M-N@6fps（6 in 1）/8*4M-N@8fps（6 in 1) 8*1080P@8fps（6 in 1）/4*1080P@18fps（6 in 1)
Multi-mode input
- Analog：8*4M-N；8*1080N；4*1080P Digital to analog conversion：support Network：16*1080P；8*5M Motion Detection Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
Audio
- Audio compression G.711A Intercom support
Record & playback
- Record mode manual>alarm>motion detection>timing Local Playback 4ch(analog input mode) Search mode Search by time, calendar, event, channel
Storage & backup
- Video storage HDD, network Backup mode Network, USB hard disk, USB burner, SATA burner
External Interface

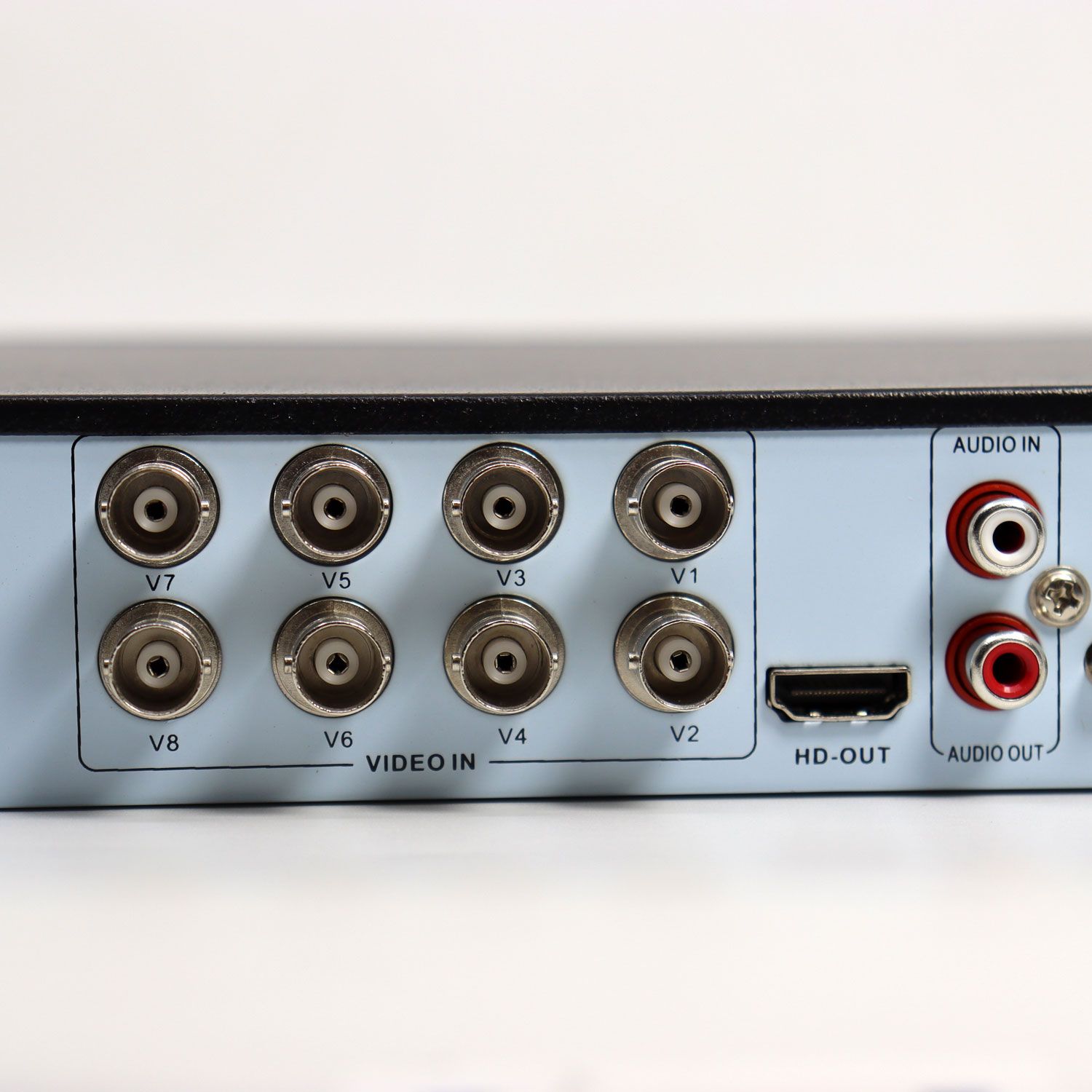

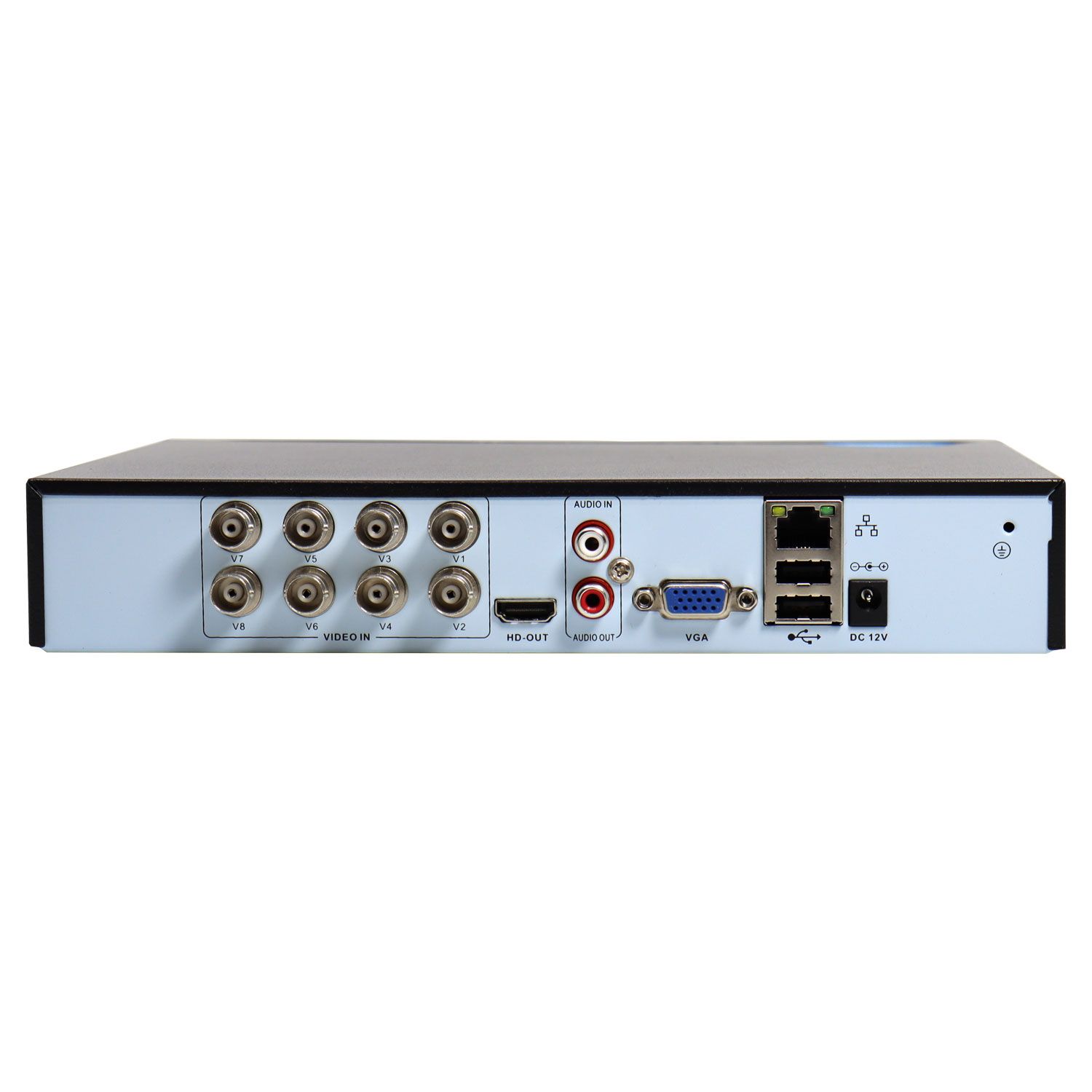

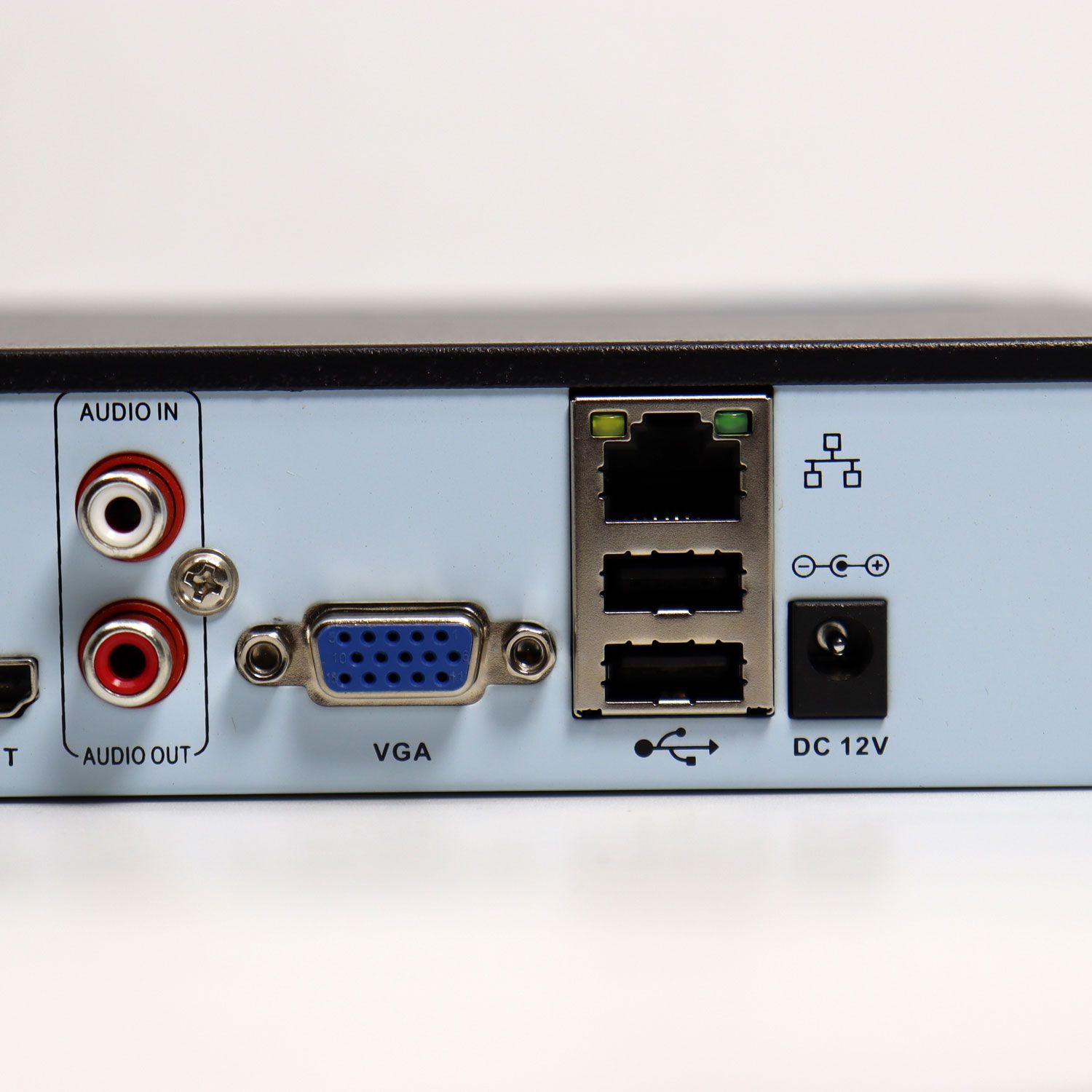

- Video input 8ch BNC Video output 1ch VGA, 1ch HDMI Loop Vout N/A Audio I/O 1/1 Alarm I/O 0/0 Network interface RJ45 10M/100M self-adaption PTZ control 1*RS485, Support kinds of PTZ protocols USB 2* USB 2.0 ports HDD 1*SATA ports (Max 8TB/per) Wireless 3G, WIFI (extend via USB)
General
- Power supply 12V/4A Power Consumption <15W (without HDD) Working environment Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa Dimension 233x210x45 mm Weight 510 gr (without HDD).
| Hard Disk-uri (porturi) | 1 |
|---|---|
| Numar canale | 8 |
| Porturi | featured |
| Producatori | Rovision |
| Rezolutie | FULL HD 1080P (2MP-2.4MP) |
| Tip produs | DVR |
| Vizualizare pe mobil | DA, YES |
| Manufacturer | Rovision |
| Number of channels | 8 |
| Resolution | FULL HD 1080P (2MP-2.4MP) |
